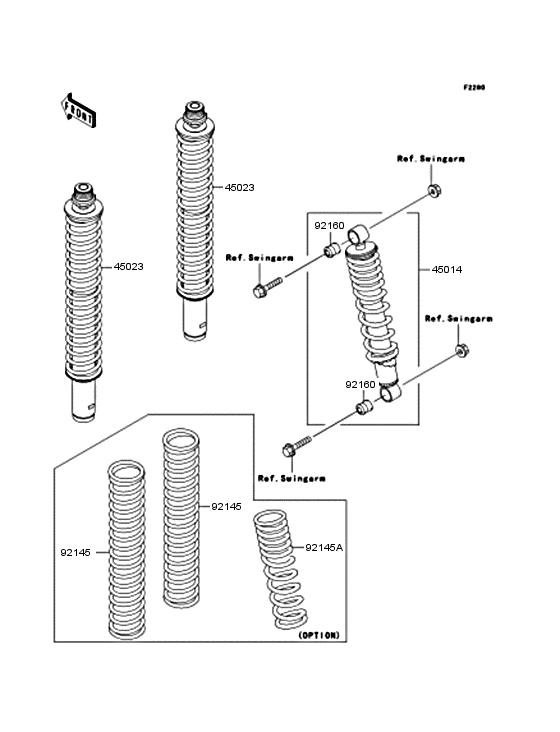

Shock absorber Diagram Kawasaki KVF400 Prairie 400 4X4
- Model code
- KVF400-C3
- Engine Capacity
- 391
- Year
- 2001
- Sales region
- Japan
- Colour
- Colored Plastic Hunter Green (6A)
- Engine
- VF400AE 500001 -
- Power
- 25 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 400 4X4
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45014
|
45014
45014-1709-CD SHOCK ABSORBER,RR,F.REシヨツクアブソ-バ，RR，レツド |
45014-1709-CD |
from US $393.47 |
||
|
45023
|
45023
45023-1011-CD STRUT,FR,F.REDストラツト，FR，レツド |
45023-1011-CD |
from US $328.15 |
||
|
92145
|
92145
92145-1225 SPRING,STRUT,K=1.0スプリング，ストラツト，K=9.8N/MM; オプシヨン |
92145-1225 |
from US $139.81 |
||
|
92145A
|
92145A
92145-1271 SPRING,SHOCKABSORBERスプリング，シヨツク，K=22.6N/MM; オプシヨン |
92145-1271 |
from US $152.59 |
||
|
92160
|
92160
92160-1777 Dampers, shock absorbersダンパ，シヨツクアブソ-バ |
92160-1777 |
from US $8.09 |
