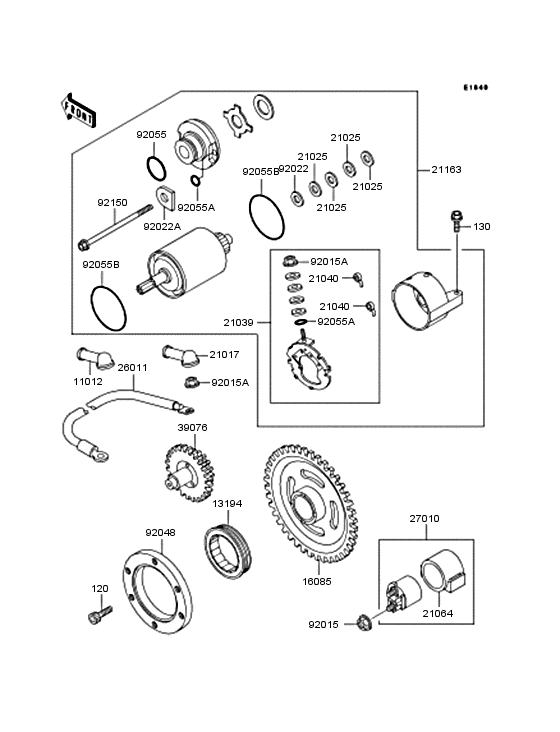

Starter motor/starter clutch Diagram Kawasaki KVF400 Prairie 400 4X4
- Model code
- KVF400-C3
- Engine Capacity
- 391
- Year
- 2001
- Sales region
- Japan
- Colour
- Colored Plastic Hunter Green (6A)
- Engine
- VF400AE 500001 -
- Power
- 25 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 400 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120P0816 BOLT-SOCKETボルト(ロツカクアナ) |
120P0816 |
US $1.74 |
||
| replacement | |||||
|
120
|
120
120CA0816 BOLT-SOCKETボルト(ロツカクアナ) |
120CA0816 |
from US $1.27 |
||
|
130
|
130
130G0625
BOLT-FLANGED,6X25
ボルト(ツバツキ)，6X25 |
130G0625 |
— | ||
| replacement | |||||
|
130
|
130
130BA0625 BOLT-FLANGED,6X25ボルト(ツバツキ)，6X25 |
130BA0625 |
from US $0.79 |
||
|
11012
|
11012
11012-1354 CAP,TERMINALキヤツプ，タ-ミナル |
11012-1354 |
from US $7.44 |
||
|
13194
|
13194
13194-1094 CLUTCH-ONEWAYクラツチ(ワンウエイ) |
13194-1094 |
US $152.83 |
||
|
16085
|
16085
16085-1238 GEAR,STARTERギヤ，スタ-タ |
16085-1238 |
from US $81.96 |
||
|
21017
|
21017
21017017 GROMMET,CORDグロメツト，スタ-タ タ-ミナル |
21017017 |
from US $6.81 |
||
|
21025
|
21025
21025011 WASHER,THRUST,0.2Tプレ-ン ワツシヤ，9.1X18X0.2 |
21025011 |
from US $4.28 |
||
|
21039
|
21039
21039-1063 BRUSH,CARBONブラシ，カ-ボン |
21039-1063 |
from US $85.87 |
||
|
21040
|
21040
21040-1057 SPRING-BRUSHスプリング(ブラシ) |
21040-1057 |
from US $6.18 |
||
|
21064
|
21064
21064002 DAMPER,MAGNETIC SWITCダンパ-，マグネチツク スイツチ |
21064002 |
from US $14.41 |
||
| replacement | |||||
|
21064
|
21064
92161-1722 DAMPER,MAGNETIC SWITCダンパ-，マグネチツク スイツチ |
92161-1722 |
from US $14.10 |
||
|
21163
|
21163
21163-1208 Starter-electricスタ-タ(エレクトリツク) |
21163-1208 |
from US $550.54 |
||
|
26011
|
26011
26011-1648 WIRE-LEAD,STARTER MOTワイヤ(リ-ド)，スタ-タ モ-タ |
26011-1648 |
US $56.16 |
||
|
27010
|
27010
27010-1098 SWITCH,MAGNETICスイツチ，マグネチツク |
27010-1098 |
US $131.04 |
||
| replacements | |||||
|
27010
|
27010
27010-1235 SWITCH,MAGNETICスイツチ，マグネチツク |
27010-1235 |
from US $125.07 |
||
|
27010
|
27010
27010-0766 SWITCH,MAGNETICスイツチ，マグネチツク |
27010-0766 |
from US $99.37 |
||
|
39076
|
39076
39076-1066 LIMITER,STARTERリミタ，スタ-タ |
39076-1066 |
from US $179.66 |
||
|
92015
|
92015
92015-1193
NUT,FLANGED,6MM
ナツト，フランジ，6MM |
92015-1193 |
— | ||
| replacement | |||||
|
92015
|
92015
92015-1367 NUT,FLANGED,6MMナツト，フランジ，6MM |
92015-1367 |
from US $3.01 |
||
|
92015A
|
92015A
92015-1476 NUT,6MMナツト，スタ-タ モ-タ |
92015-1476 |
from US $2.69 |
||
|
92022
|
92022
92022-1132 WASHER,THRUST,0.8Tワツシヤ，9.1X18X0.8 |
92022-1132 |
from US $3.48 |
||
|
92022A
|
92022A
92022-1458 WASHER,LOCK,T=2.0ワツシヤ，ロツク，T=2.0 |
92022-1458 |
from US $3.48 |
||
|
92048
|
92048
92048-1090 RACE,ONE WAY CLUTCHレ-ス，ワンウエイ クラツチ |
92048-1090 |
US $112.99 |
||
| replacement | |||||
|
92048
|
92048
92048-0002 RACE,ONE WAY CLUTCHレ-ス，ワンウエイ クラツチ |
92048-0002 |
from US $88.03 |
||
|
92055B
|
92055B
92055-1381 RING-O,STARTER MOTORリング(0)，スタ-タ モ-タ |
92055-1381 |
from US $6.34 |
||
|
92055
|
92055
92055-1276 RING-Oリング(0) |
92055-1276 |
from US $7.62 |
||
|
92055A
|
92055A
92055-1370 RING-O,4.5X2.0リング(0)，4.5X2.0 |
92055-1370 |
from US $2.85 |
||
|
92150
|
92150
92150-1243 BOLTボルト |
92150-1243 |
US $8.41 |
||
