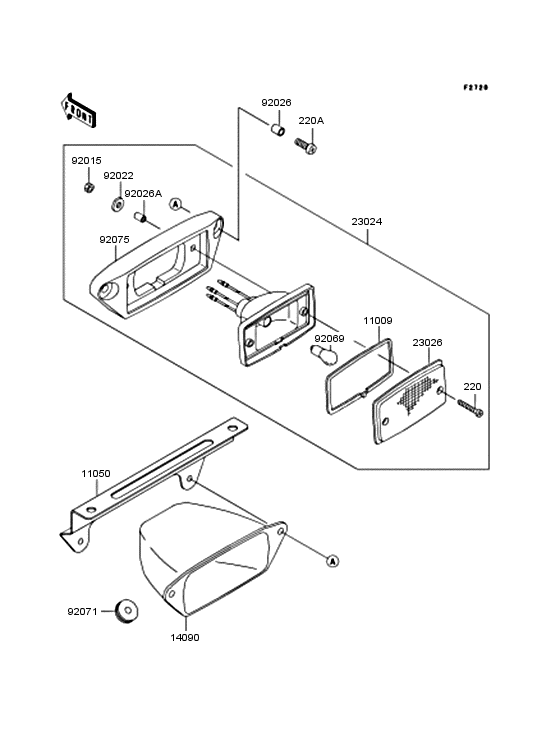

Taillight Diagram Kawasaki KVF400 Prairie 400 4X4
- Model code
- KVF400-C3
- Engine Capacity
- 391
- Year
- 2001
- Sales region
- Japan
- Colour
- Colored Plastic Hunter Green (6A)
- Engine
- VF400AE 500001 -
- Power
- 25 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 400 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
220
|
220
220C0430 SCREW-PAN-CROSナベコネジ(+ジアナ) |
220C0430 |
from US $1.11 |
||
| replacement | |||||
|
220
|
220
220AB0430 SCREW-PAN-CROSナベコネジ(+ジアナ) |
220AB0430 |
from US $0.94 |
||
|
220A
|
220A
220C0620 SCREW-PAN-CROSSナベコネジ(+ジアナ)，6X20 |
220C0620 |
from US $1.27 |
||
| replacement | |||||
|
220A
|
220A
220AB0620 SCREW-PAN-CROSSナベコネジ(+ジアナ)，6X20 |
220AB0620 |
from US $1.15 |
||
|
11009
|
11009
11009-4004 GASKETガスケツト，テ-ル ランプ |
11009-4004 |
from US $4.67 |
||
|
11050
|
11050
11050-1718 BRACKET,TAIL LAMPブラケツト，テ-ル ランプ |
11050-1718 |
from US $24.55 |
||
|
14090
|
14090
14090-1911 COVER,TAIL LAMPカバ-，テ-ル ランプ |
14090-1911 |
US $4.50 |
||
|
23024
|
23024
23024-1131 LAMP-ASSY-TAILランプアツシ(テ-ル) |
23024-1131 |
US $109.93 |
||
| replacement | |||||
|
23024
|
23024
23024-1137 LAMP-ASSY-TAILランプアツシ(テ-ル) |
23024-1137 |
from US $77.14 |
||
|
23026
|
23026
23026-1239 LENS,TAIL LAMPレンズ，テ-ル ランプ |
23026-1239 |
from US $13.54 |
||
|
92015
|
92015
92015-1550 NUT,4MMナツト，4MM |
92015-1550 |
from US $2.33 |
||
|
92022
|
92022
92022-1762 WASHER,PLAIN,4MMワツシヤ，プレ-ン，4MM |
92022-1762 |
from US $2.33 |
||
|
92026
|
92026
92026-1260 SPACER,6.3X8.3X10スペ-サ |
92026-1260 |
from US $2.65 |
||
|
92026A
|
92026A
92026-1261 SPACER,4.5X6.5X10スペ-サ，4.5X6.5X10 |
92026-1261 |
from US $3.11 |
||
|
92069
|
92069
92069-059 BULB,12V 32/3CPバルブ，12V 27/8W |
92069-059 |
from US $5.70 |
||
|
92071
|
92071
92071-1058 GROMMET,SENSOR LEADグロメツト |
92071-1058 |
from US $3.80 |
||
|
92075
|
92075
92075-1782 DAMPER,TAIL LAMPダンパ，テ-ル ランプ |
92075-1782 |
from US $26.12 |
||
