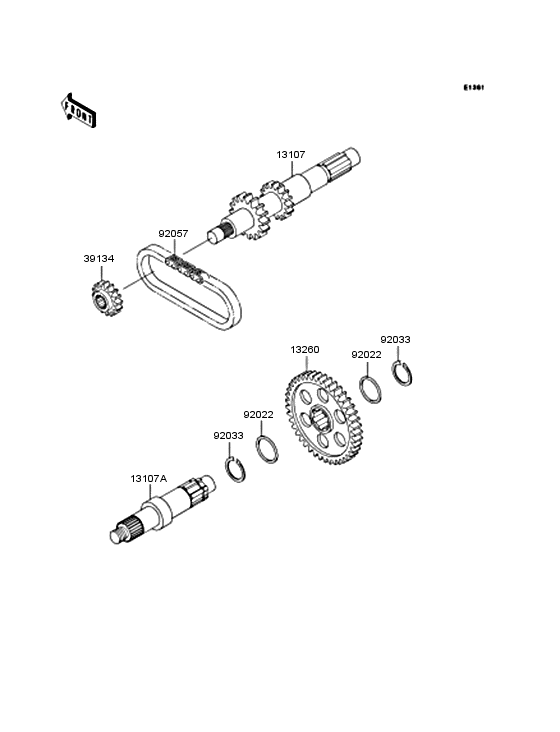

Transmission Diagram Kawasaki KVF400 Prairie 400 4X4
- Model code
- KVF400-C3
- Engine Capacity
- 391
- Year
- 2001
- Sales region
- Japan
- Colour
- Colored Plastic Hunter Green (6A)
- Engine
- VF400AE 500001 -
- Power
- 25 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 400 4X4
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13107
|
13107
13107-1395 SHAFT,INPUTシヤフト，インプツト |
13107-1395 |
US $284.35 |
||
|
13107A
|
13107A
13107-1396 SHAFT,OUTPUTシヤフト，アウトプツト |
13107-1396 |
US $136.24 |
||
|
13260
|
13260
13260-1736 GEAR,OUTPUT,44Tギヤ，アウトプツト，44T |
13260-1736 |
US $114.61 |
||
|
39134
|
39134
39134-1060
SPROCKET-DRIVE,REVERS
スプロケツト(ドライブ)，リバ-ス，19T |
39134-1060 |
— | ||
|
92022
|
92022
92022-1731 WASHER,28.1X34X1.0ワツシヤ，28.1X34X1.0 |
92022-1731 |
from US $3.89 |
||
|
92033
|
92033
92033-1037 SNAP RING,25.9X1.2Tリング(スナツプ)，25.9X30.6X1.2 |
92033-1037 |
from US $2.85 |
||
|
92057
|
92057
92057-1465
CHAIN,REVERSE,81RH252
チエ-ン，リバ-ス，81RH2520-52 |
92057-1465 |
— |
