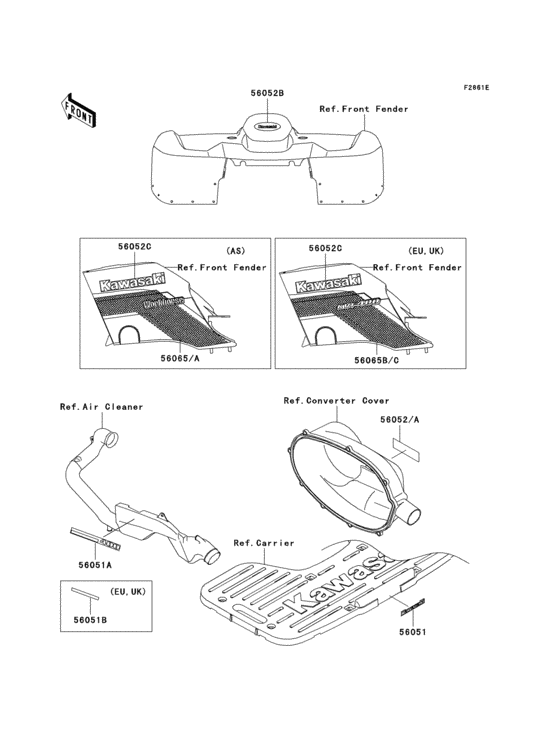

Decals(green)(c4) Diagram Kawasaki KVF400 Prairie 400 4X4
- Model code
- KVF400-C4
- Engine Capacity
- 391
- Year
- 2002
- Sales region
- Australia
- Colour
- Colored Plastic Hunter Green (6A)
- Power
- 25 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 400 4X4
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
56051
|
56051
56051-1843 MARK,REAR CARRIER,KAW |
56051-1843 |
US $21.04 |
||
|
56051A
|
56051A
56051-1858 MARK,AIR CLEANER COVE |
56051-1858 |
US $20.63 |
||
|
56052
|
56052
56052-1051 MARK,BELT CONVERTER C |
56052-1051 |
US $20.63 |
||
|
56052B
|
56052B
56052-1504
MARK,FR FENDER,KAWASAKI
|
56052-1504 |
— | ||
| replacement | |||||
|
56052B
|
56052B
56052-0449 MARK,FR FENDER,KAWASAKI |
56052-0449 |
US $16.07 |
||
|
56052C
|
56052C
56052-1509 MARK,FUEL TANK COVER, |
56052-1509 |
US $19.66 |
||
|
56065
|
56065
56065-1539
Pattern,fuel tank cover,lh
|
56065-1539 |
— | ||
|
56065A
|
56065A
56065-1540
Pattern,fuel tank cover,rh
|
56065-1540 |
— | ||
