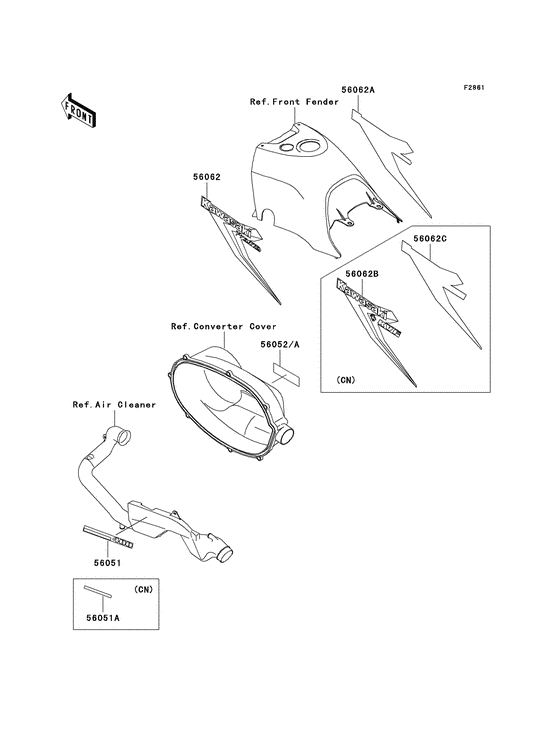

Decals (Green; d1) Diagram Kawasaki KVF400 Prairie 400
- Model code
- KVF400-D1
- Engine Capacity
- 391
- Year
- 1999
- Sales region
- USA
- Power
- 25 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Prairie 400
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
56051
|
56051
56051-1858 MARK,AIR CLEANER COVEMark,air cleaner cover; |
56051-1858 |
US $20.63 |
||
|
56051A
|
56051A
56051-1859
Mark,air cleaner cover
Mark,air cleaner cover; |
56051-1859 |
— | ||
|
56052
|
56052
56052-1051 MARK,BELT CONVERTER CMark,belt converter cover; |
56052-1051 |
US $20.63 |
||
|
56052A
|
56052A
56052-1052
Mark,belt converter cover
Mark,belt converter cover; |
56052-1052 |
— | ||
|
56062
|
56062
56062-1477 PATTERN,FUEL TANK COVPattern,fuel tank cover,lh; |
56062-1477 |
US $57.06 |
||
|
56062A
|
56062A
56062-1478 PATTERN,FUEL TANK COVPattern,fuel tank cover,rh; |
56062-1478 |
US $57.06 |
||
|
56062B
|
56062B
56062-1497 PATTERN,FUEL TANK COVPattern,fuel tank cover,lh; |
56062-1497 |
US $65.05 |
||
|
56062C
|
56062C
56062-1498 PATTERN,FUEL TANK COVPattern,fuel tank cover,rh; |
56062-1498 |
US $65.05 |
