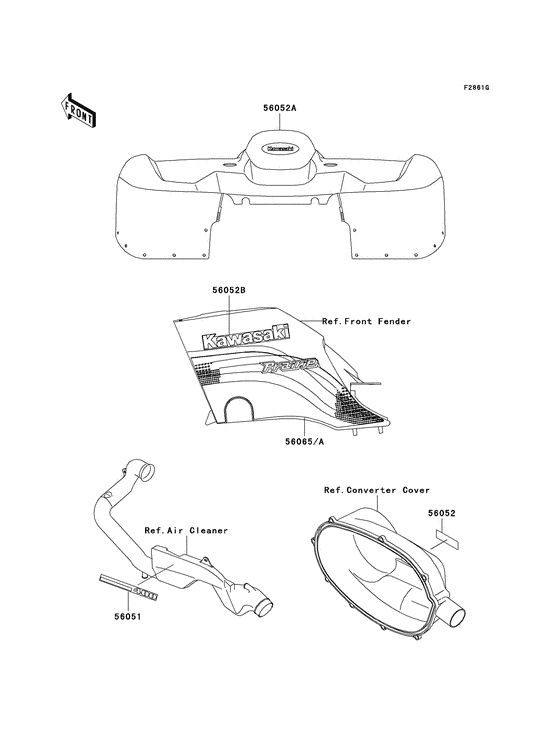

Decals (Red; d4) Diagram Kawasaki KVF400 Prairie 400
- Model code
- KVF400-D4
- Engine Capacity
- 391
- Year
- 2002
- Sales region
- USA
- Power
- 25 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Prairie 400
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
56051
|
56051
56051-1858 MARK,AIR CLEANER COVEMark,air cleaner cover; |
56051-1858 |
US $20.63 |
||
|
56052
|
56052
56052-1051 MARK,BELT CONVERTER CMark,belt converter cover; |
56052-1051 |
US $20.63 |
||
|
56052A
|
56052A
56052-1504
MARK,FR FENDER,KAWASAKI
Mark,fr fender,kawasaki; |
56052-1504 |
— | ||
| replacement | |||||
|
56052A
|
56052A
56052-0449 MARK,FR FENDER,KAWASAKIMark,fr fender,kawasaki; |
56052-0449 |
US $16.07 |
||
|
56052B
|
56052B
56052-1510 MARK,FUEL TANK COVER,Mark,fuel tank cover,kawasaki; |
56052-1510 |
US $21.24 |
||
|
56065
|
56065
56065-1159 PATTERN,FUEL TANK COVPattern,fuel tank cover,lh; |
56065-1159 |
US $80.08 |
||
|
56065A
|
56065A
56065-1160 PATTERN,FUEL TANK COVPattern,fuel tank cover,rh; |
56065-1160 |
US $80.08 |
||
