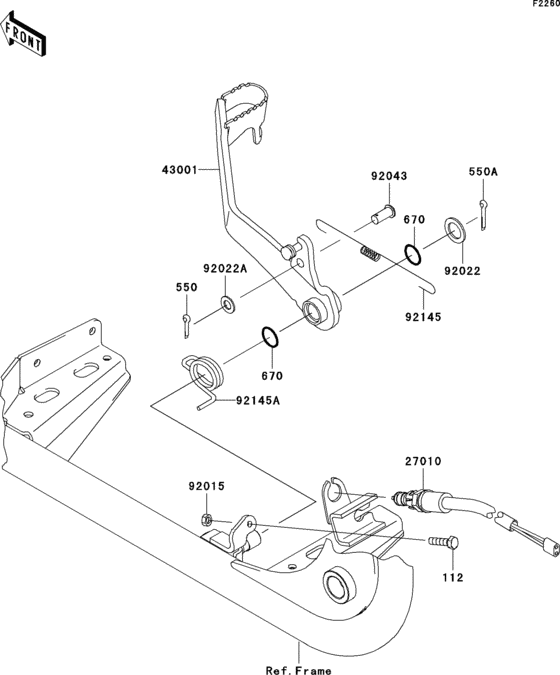

Brake pedal Diagram Kawasaki KVF700 Prairie 700 4X4
- Model code
- KVF700-A1
- Engine Capacity
- 697
- Year
- 2004
- Sales region
- Europe
- Frame
- JKAVF6A1 4B500001 - 999999
- Power
- 47 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 700 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
112
|
112
112D0622 BOLT-UPSET |
112D0622 |
US $4 |
||
| replacement | |||||
|
112
|
112
112AA0622 BOLT-UPSET |
112AA0622 |
from US $0.94 |
||
|
550
|
550
550AA2015 PIN-COTTER,2.0X15 |
550AA2015 |
from US $0.63 |
||
|
550A
|
550A
550AA2022 PIN-COTTER,2.0X22 |
550AA2022 |
from US $0.94 |
||
|
670
|
670
670B2015 O RING,15MM |
670B2015 |
from US $1.77 |
||
|
27010
|
27010
27010-1494 SWITCH,BRAKE |
27010-1494 |
from US $36.58 |
||
|
43001
|
43001
43001-0092 LEVER-BRAKE,PEDAL |
43001-0092 |
US $70.48 |
||
|
92015
|
92015
92015-1410 NUT,6MM |
92015-1410 |
from US $2.33 |
||
|
92022
|
92022
92022-1049 WASHER,15.5X24X1.6 |
92022-1049 |
from US $3.57 |
||
|
92022A
|
92022A
410AA0800 WASHER-PLAIN-SMALL,8M |
410AA0800 |
from US $0.63 |
||
|
92043
|
92043
92043-1013 PIN |
92043-1013 |
from US $6.65 |
||
|
92145
|
92145
92145-0056 SPRING,BRAKE SWITCH |
92145-0056 |
from US $1.87 |
||
|
92145A
|
92145A
92145-1421 SPRING,BRAKE PEDAL RE |
92145-1421 |
from US $2.65 |
||
