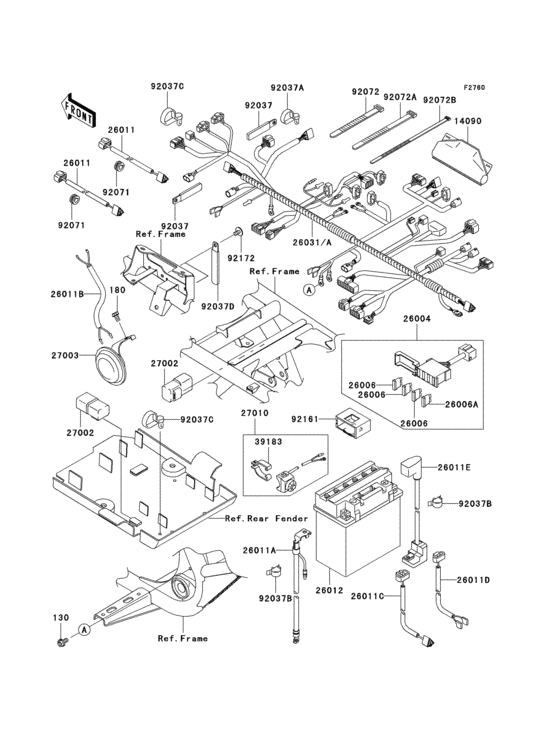

Chassis electrical equipment Diagram Kawasaki KVF700 Prairie 700 4X4
- Model code
- KVF700-A1
- Engine Capacity
- 697
- Year
- 2004
- Sales region
- Europe
- Frame
- JKAVF6A1 4B500001 - 999999
- Power
- 47 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 700 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BA0612 BOLT-FLANGED,6X12 |
130BA0612 |
from US $0.79 |
||
|
180
|
180
180D0614
BOLT-UPSET-WS
|
180D0614 |
— | ||
| replacement | |||||
|
180
|
180
180AA0614 BOLT-UPSET-WS |
180AA0614 |
from US $1.09 |
||
|
14090
|
14090
14090-1331 COVER,COUPLER |
14090-1331 |
from US $6.18 |
||
|
26004
|
26004
26004-0003 FUSE-ASSY |
26004-0003 |
from US $27.84 |
||
|
26006
|
26006
26006-1007 FUSE,BLADE,10A,RED |
26006-1007 |
from US $3.33 |
||
|
26006A
|
26006A
26006-1061 FUSE,BLADE,15A,BLUEX3 |
26006-1061 |
from US $3.80 |
||
|
26011
|
26011
26011-0143 WIRE-LEAD,HEAD LAMP |
26011-0143 |
US $25.82 |
||
|
26011A
|
26011A
26011-1752 WIRE-LEAD,BATTERY(-) |
26011-1752 |
from US $20.38 |
||
| replacement | |||||
|
26011A
|
26011A
26011-0148 WIRE-LEAD,BATTERY(-) |
26011-0148 |
US $19.82 |
||
|
26011B
|
26011B
26011-1797 Wire-lead |
26011-1797 |
US $9.01 |
||
|
26011C
|
26011C
26011-1801 WIRE-LEAD,SPEED SENSO |
26011-1801 |
from US $18.82 |
||
|
26011D
|
26011D
26011-1802 WIRE-LEAD,FRONT BRAKE |
26011-1802 |
from US $13.68 |
||
|
26011E
|
26011E
26011-1827 WIRE-LEAD,BATTERY(+) |
26011-1827 |
US $48.04 |
||
| replacement | |||||
|
26011E
|
26011E
26011-0142 WIRE-LEAD,BATTERY(+) |
26011-0142 |
US $59.55 |
||
|
26012
|
26012
26012-0099 YTX14-BS,12V 12AH |
26012-0099 |
US $216.31 |
||
| replacements | |||||
|
26012
|
26012
XYYTX14BS
Ytx14-bs
|
XYYTX14BS |
— | ||
|
26012
|
26012
26012-1279
YTX14-BS,12V 12AH
|
26012-1279 |
— | ||
|
26031A
|
26031A
26031-0022
Harness,main
|
26031-0022 |
— | ||
|
27002
|
27002
27002-1086 RELAY-ASSY |
27002-1086 |
from US $29.47 |
||
|
27003
|
27003
27003-1413 Horn |
27003-1413 |
US $26.12 |
||
|
27010
|
27010
27010-1285 Switch horn |
27010-1285 |
US $35.61 |
||
|
39183
|
39183
39183-1059 BAND-ASSY,ENGINE STOP |
39183-1059 |
from US $8.87 |
||
|
92037
|
92037
92171-0652 CLAMP |
92171-0652 |
from US $1.27 |
||
|
92037A
|
92037A
92037-1163 CLAMPL=58 |
92037-1163 |
from US $3.96 |
||
|
92037B
|
92037B
92037-1878 CLAMP,HARNESS |
92037-1878 |
from US $5.70 |
||
|
92037C
|
92037C
92037-1903 CLAMPL=80.5 |
92037-1903 |
from US $5.23 |
||
|
92037D
|
92037D
92037-1993 CLAMP |
92037-1993 |
from US $3.33 |
||
|
92071
|
92071
92071-1128 GROMMET |
92071-1128 |
from US $3.11 |
||
|
92072
|
92072
92072-030 BAND,SHORT |
92072-030 |
from US $3.01 |
||
|
92072A
|
92072A
92072-031 BAND,MIDDLE |
92072-031 |
from US $3.01 |
||
|
92072B
|
92072B
92072-1239 BAND,L=188 |
92072-1239 |
from US $1.90 |
||
|
92161
|
92161
92161-1136 DAMPER,FUSE |
92161-1136 |
from US $6.06 |
||
|
92172
|
92172
92172-0005 SCREW, 6X10 |
92172-0005 |
US $2.99 |
||
