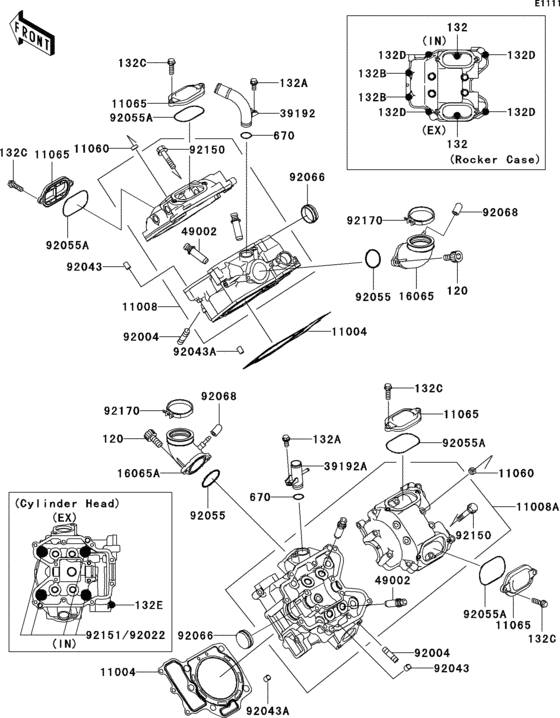

Cylinder head Diagram Kawasaki KVF700 Prairie 700 4X4
- Model code
- KVF700-A1
- Engine Capacity
- 697
- Year
- 2004
- Sales region
- Europe
- Frame
- JKAVF6A1 4B500001 - 999999
- Power
- 47 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 700 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120CD0620 BOLT-SOCKET |
120CD0620 |
from US $1.24 |
||
|
132
|
132
132BA0625 BOLT-FLANGED-SMALL,6X |
132BA0625 |
from US $1.27 |
||
|
132A
|
132A
132BD0612 BOLT-FLANGED-SMALL,6X |
132BD0612 |
from US $0.95 |
||
|
132B
|
132B
92154-0993 BOLT,FLANGED,6X130 |
92154-0993 |
from US $2.22 |
||
|
132C
|
132C
132BD0620 BOLT-FLANGED-SMALL |
132BD0620 |
from US $1.11 |
||
|
132D
|
132D
132BD0630 BOLT-FLANGED-SMALL |
132BD0630 |
from US $1.27 |
||
|
132E
|
132E
132BD0695 BOLT-FLANGED-SMALL |
132BD0695 |
from US $1.56 |
||
|
670
|
670
670B2016 O RING,16MM |
670B2016 |
from US $1.70 |
||
|
11004
|
11004
11004-0050 GASKET-HEAD |
11004-0050 |
from US $21.93 |
||
|
11008A
|
11008A
11008-0017 HEAD-COMP-CYLINDER,RR |
11008-0017 |
US $1,104.98 |
||
| replacement | |||||
|
11008A
|
11008A
11008-0778 HEAD-COMP-CYLINDER,RR |
11008-0778 |
from US $768.27 |
||
|
11060
|
11060
11060-1994 GASKET,6.2X12X0.3 |
11060-1994 |
from US $1.44 |
||
|
11065
|
11065
11065-1152 CAP,ROCKER CASE |
11065-1152 |
from US $14.93 |
||
|
16065
|
16065
16065-1370 HOLDER-CARBURETOR |
16065-1370 |
from US $33.12 |
||
|
16065A
|
16065A
16065-1371 HOLDER-CARBURETOR,RR |
16065-1371 |
from US $33.12 |
||
|
39192
|
39192
39192-1132 PIPE-WATER |
39192-1132 |
from US $12.60 |
||
|
39192A
|
39192A
39192-1133 PIPE-WATER |
39192-1133 |
from US $25.82 |
||
|
49002
|
49002
49002-1097 GUIDE-VALVE |
49002-1097 |
from US $18.69 |
||
|
92004
|
92004
92004-1217 STUD |
92004-1217 |
from US $3.48 |
||
|
92022
|
92022
92022-1720 WASHER |
92022-1720 |
from US $2.69 |
||
|
92043
|
92043
92043-1263 PIN,6.2X8X14 |
92043-1263 |
from US $0.75 |
||
|
92043A
|
92043A
92043-4009 PIN,10.1X12X14 |
92043-4009 |
from US $3.64 |
||
|
92055
|
92055
92055-1295 RING-O,38MM |
92055-1295 |
from US $10.14 |
||
|
92055A
|
92055A
92055-0112 RING-O |
92055-0112 |
from US $3.31 |
||
|
92066
|
92066
92066-1289 PLUG |
92066-1289 |
from US $8.09 |
||
|
92068
|
92068
92068-006 RUBBER PLUG |
92068-006 |
from US $2.85 |
||
|
92150
|
92150
92150-1302 BOLT,6X55 |
92150-1302 |
from US $3.80 |
||
|
92151
|
92151
92151-1917 BOLT |
92151-1917 |
from US $10.73 |
||
|
92170
|
92170
92170-1722 CLAMP |
92170-1722 |
from US $7.13 |
||
