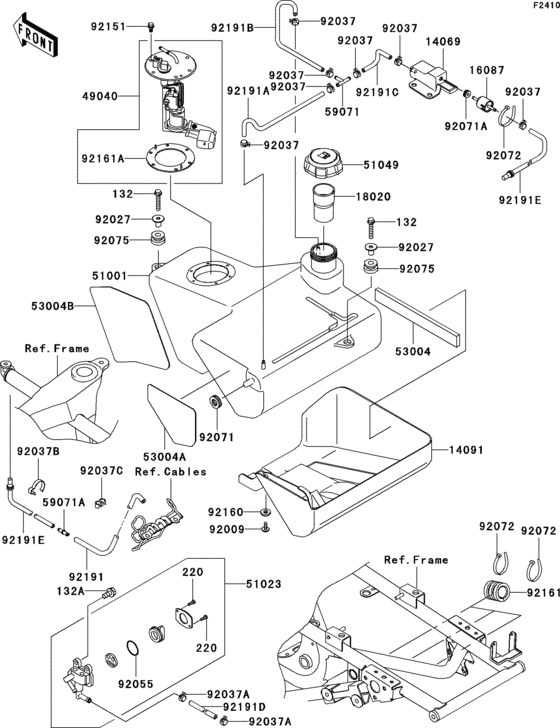

Fuel tank Diagram Kawasaki KVF700 Prairie 700 4X4
- Model code
- KVF700-A1
- Engine Capacity
- 697
- Year
- 2004
- Sales region
- Europe
- Frame
- JKAVF6A1 4B500001 - 999999
- Power
- 47 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 700 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132BA0630 BOLT-FLANGED-SMALL |
132BA0630 |
from US $1.27 |
||
|
132A
|
132A
92002-1569
BOLT-FLANGED-SMALL,6X
|
92002-1569 |
— | ||
| replacement | |||||
|
132A
|
132A
132BB0612 BOLT-FLANGED-SMALL,6X |
132BB0612 |
from US $0.95 |
||
|
220
|
220
220AA0308 SCREW-PAN-CROS |
220AA0308 |
from US $0.79 |
||
|
14069
|
14069
14069-1069 BREATHER,TANK |
14069-1069 |
US $16.51 |
||
|
14091
|
14091
16146-1226
COVER-ASSY,FUEL TANK
|
16146-1226 |
— | ||
|
16087
|
16087
16087-1054 VALVE-CHECK |
16087-1054 |
from US $31.10 |
||
|
18020
|
18020
18020-1278 BAFFLE,FUEL TANK CAP |
18020-1278 |
US $11.46 |
||
|
49040
|
49040
49040-0006 Pump-fuel |
49040-0006 |
from US $841.36 |
||
|
51001
|
51001
51001-1638 TANK-COMP-FUEL |
51001-1638 |
US $230.35 |
||
|
51023
|
51023
51023-0002 TAP-ASSY,FUEL |
51023-0002 |
from US $76.98 |
||
|
51049
|
51049
51049-1128 CAP-TANK,FUEL |
51049-1128 |
from US $43.08 |
||
|
53004
|
53004
53004-1161 MAT |
53004-1161 |
from US $4.98 |
||
|
53004A
|
53004A
53004-1164 MAT,FUEL TANK |
53004-1164 |
from US $9.01 |
||
|
53004B
|
53004B
53004-1165 MAT,FUEL TANK |
53004-1165 |
from US $9.01 |
||
|
59071A
|
59071A
59071-3717 JOINT |
59071-3717 |
from US $2.06 |
||
|
92009
|
92009
92009-1480 SCREW |
92009-1480 |
from US $2.38 |
||
|
92027
|
92027
92027-1847 COLLAR,6=16.1 |
92027-1847 |
from US $3.64 |
||
|
92037
|
92037
92037-1461 TUBE CLAMP |
92037-1461 |
from US $3.17 |
||
|
92037A
|
92037A
92037-1505 CLAMP,TUBE |
92037-1505 |
from US $3.17 |
||
|
92037B
|
92037B
92037-1552 CLAMP |
92037-1552 |
from US $7.13 |
||
|
92037C
|
92037C
92037-1603 CLAMP |
92037-1603 |
from US $3.17 |
||
|
92055
|
92055
92055-0017 RING-O |
92055-0017 |
US $1.67 |
||
|
92071
|
92071
92071-1249 GROMMET,AIR SUCTION V |
92071-1249 |
from US $2.69 |
||
|
92071A
|
92071A
92071-1266 GROMMET |
92071-1266 |
from US $2.79 |
||
|
92072
|
92072
92072-1239 BAND,L=188 |
92072-1239 |
from US $1.90 |
||
|
92075
|
92075
92075-1787 DAMPER |
92075-1787 |
from US $3.96 |
||
|
92151
|
92151
92151-1754 BOLT,FLANGED,5X11.5 |
92151-1754 |
from US $0.94 |
||
|
92160
|
92160
92160-1017 DAMPER |
92160-1017 |
from US $3.27 |
||
|
92161
|
92161
92161-1111 DAMPER,FUEL TANK,RR |
92161-1111 |
US $8.08 |
||
|
92161A
|
92161A
92161-1272 DAMPER,FUEL PUMP |
92161-1272 |
from US $6.06 |
||
|
92191
|
92191
92191-1384 TUBE,CANISTER-SEPARAT |
92191-1384 |
from US $8.71 |
||
|
92191A
|
92191A
92191-1639 TUBE,TANK-FRONT |
92191-1639 |
from US $6.22 |
||
|
92191B
|
92191B
92191-1640 TUBE,TANK-REAR |
92191-1640 |
from US $6.68 |
||
|
92191C
|
92191C
92191-1641 TUBE,5X9X160 |
92191-1641 |
from US $2.33 |
||
|
92191D
|
92191D
92191-1665 TUBE,5.3X10.5X425 |
92191-1665 |
from US $6.06 |
||
|
92191E
|
92191E
92191-1666 TUBE,TANK BREATHER |
92191-1666 |
from US $6.22 |
||
