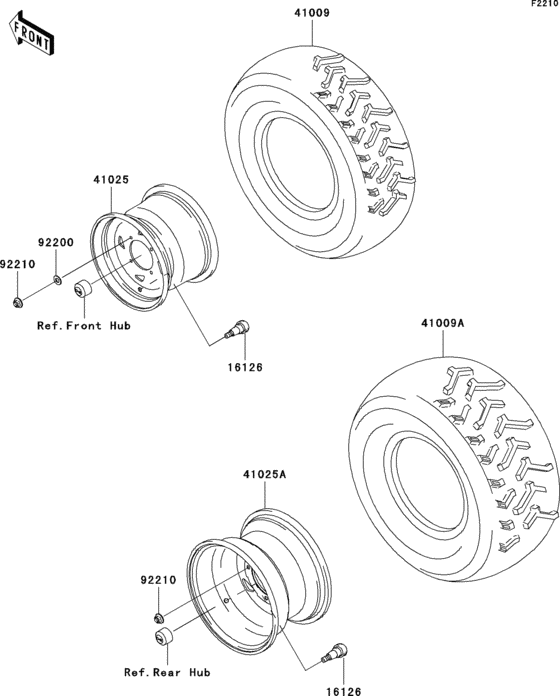

Tires Diagram Kawasaki KVF700 Prairie 700 4X4
- Model code
- KVF700-A1
- Engine Capacity
- 697
- Year
- 2004
- Sales region
- Europe
- Frame
- JKAVF6A1 4B500001 - 999999
- Power
- 47 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 700 4X4
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16126
|
16126
16126-4001 VALVE,TIRE |
16126-4001 |
from US $12.48 |
||
|
41009
|
41009
41009-0297 TIRE,FR,AT25X8-12 |
41009-0297 |
from US $158.25 |
||
|
41009A
|
41009A
41009-0298 TIRE,RR,AT25X10-12,DI |
41009-0298 |
US $202.66 |
||
|
41025
|
41025
41025-1375-UF
RIM,FR,12X6.0,S.GOLD
|
41025-1375-UF |
— | ||
|
41025A
|
41025A
41025-1426-UF
RIM,RR,12X7.5AT,S.GOL
|
41025-1426-UF |
— | ||
|
92200
|
92200
92200-1595 WASHER,10.5X25X1.6 |
92200-1595 |
from US $2.95 |
||
|
92210
|
92210
92210-1325 NUT,FLANGED,10MM |
92210-1325 |
from US $2.49 |
