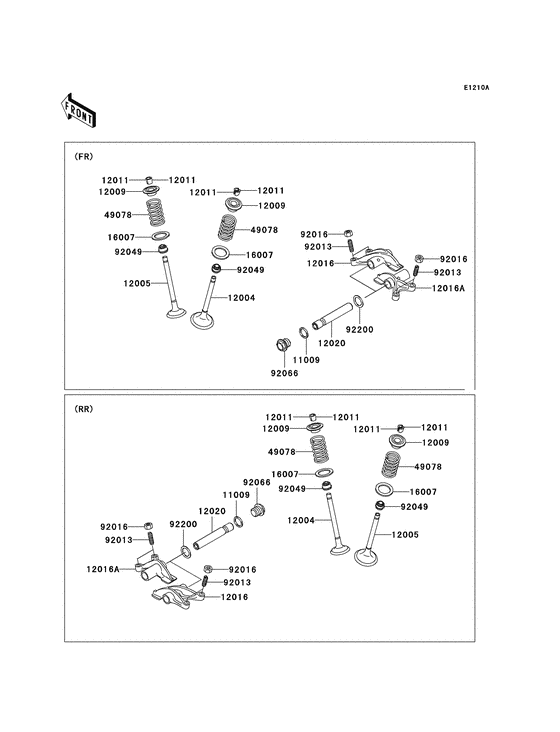

Valve (S; a2) Diagram Kawasaki KVF700 Prairie 700 4X4

Model code
KVF700-A2
Engine Capacity
697
Year
2005
Sales region
USA
Power
47 hp
Stroke (2-stroke or 4-stroke)
4 stroke
2WD/4WD/AWD
4WD
Model
Prairie 700 4X4

Difficulties in parts search?

Parts list
Valve

Difficulties in parts search?

Valve
Description OEM Part # Price
11009
11009

11009-1430

GASKET,14X18X1.5

Gasket,14x18x1.5;

11009-1430

from US $4.75

12004
12004

12004-0007

VALVE-INTAKE

12004-0007

US $39.56

replacement
12004
12004

12004-0717

VALVE-INTAKE

12004-0717

from US $25.98

12005
12005

12005-0040

VALVE-EXHAUST

12005-0040

US $59.87

replacement
12005
12005

12005-0047

VALVE-EXHAUST

12005-0047

from US $45.79

12009
12009

12009-1056

Retainer-valve spring

12009-1056

from US $8.08

12011
12011

12011-1051

COLLET

12011-1051

from US $2.53

12016
12016

12016-1128

ARM-ROCKER,EXHAUST

Arm-rocker,exhaust;

12016-1128

US $117.06

12016A
12016A

12016-1129

ARM-ROCKER,INTAKE

Arm-rocker,intake;

12016-1129

US $117.06

12020
12020

12020-0004

SHAFT-ROCKER

12020-0004

from US $8.87

16007
16007

16007-1178

SEAT-SPRING,17.5X23.8

Seat-spring,17.5x23.8x0.5;

16007-1178

from US $4.59

49078
49078

49078-0014

SPRING-ENGINE VALVE

49078-0014

from US $9.17

92013
92013

92013-009

SCREW,SLOTTED,ROCKER

Screw,6mm;

92013-009

from US $3.80

92016
92016

92016-061

NUT,6MM

Nut,6mm;

92016-061

from US $3.17

replacement
92016
92016

92210-1490

NUT,6MM

Nut,6mm;

92210-1490

from US $2.85

92049
92049

92049-1218

SEAL-OIL,VSB58.558

Seal-oil,vsb58.558;

92049-1218

from US $5.12

92066
92066

92066-2196

PLUG

Plug,drain;

92066-2196

from US $3.64

92200
92200

92200-1508

WASHER,13X17X0.3

Washer,13x17x0.3;

92200-1508

US $2.30

replacement
92200
92200

92200-0808

WASHER,13X17X0.3

Washer,13x17x0.3;

92200-0808

from US $1.40

Valve (S; a2) Diagram Kawasaki KVF700 Prairie 700 4X4 USA 10403150-683683
