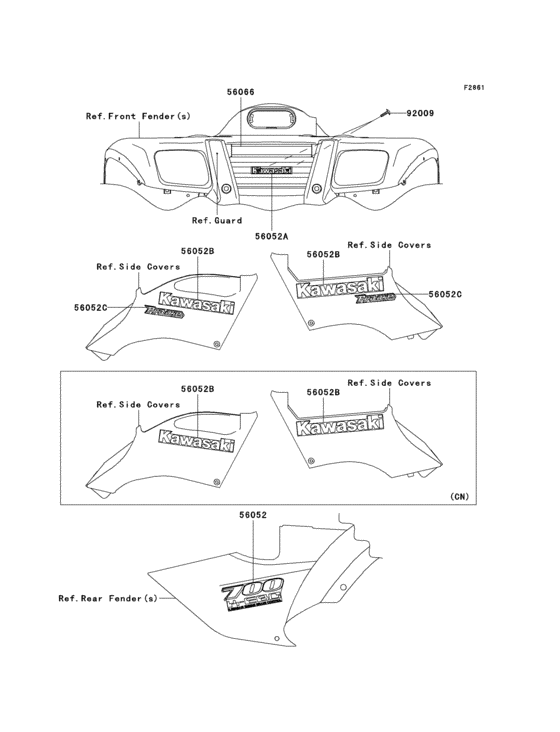

Decals(b1) Diagram Kawasaki KVF700 Prairie 700 4X4 Hardwoods Green HD
- Model code
- KVF700-B1
- Engine Capacity
- 697
- Year
- 2004
- Sales region
- Canada
- Colour
- Camouflage Hardwoods Green Hd (Base 6A) (374)
- Power
- 47 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 700 4X4 Hardwoods Green HD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
56052
|
56052
56052-0199 MARK,RR FENDER,700 |
56052-0199 |
US $14.42 |
||
|
56052A
|
56052A
56052-1201 MARK,FR FENDER,KAWASA |
56052-1201 |
US $28.26 |
||
|
56052B
|
56052B
56052-1871 MARK,FUEL TANK COVER, |
56052-1871 |
from US $15.87 |
||
|
56066
|
56066
56066-0499 PATTERN,FRONT GUARD |
56066-0499 |
US $7.27 |
||
|
92009
|
92009
92009-1444 SCREW |
92009-1444 |
from US $2.38 |
