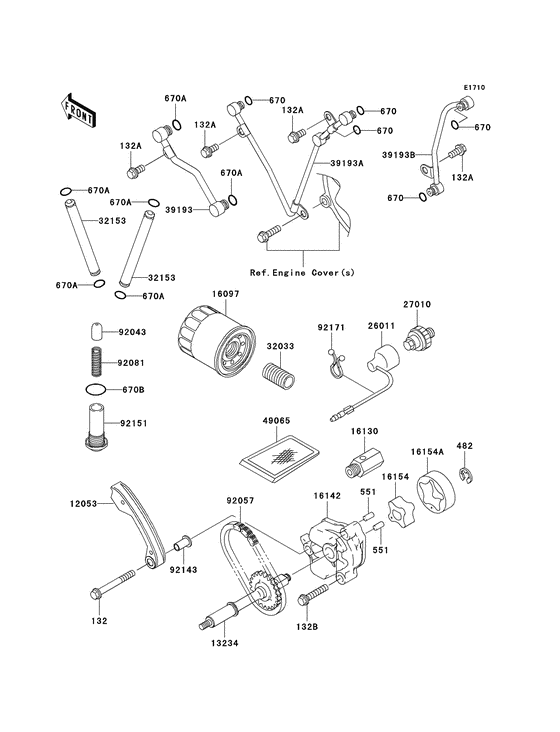

Oil pump/oil filter Diagram Kawasaki KVF700 Prairie 700 4X4 Team Green Special Edition
- Model code
- KVF700-D1
- Engine Capacity
- 697
- Year
- 2005
- Sales region
- USA
- Power
- 47 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 700 4X4 Team Green Special Edition
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132J0650 BOLT-FLANGED-SMALLBolt-flanged-small,6x50; |
132J0650 |
US $3.67 |
||
| replacement | |||||
|
132
|
132
132BB0650 BOLT-FLANGED-SMALLBolt-flanged-small,6x50; |
132BB0650 |
from US $1.27 |
||
|
132A
|
132A
132Y0612 BOLT-FLANGED-SMALL,6XBolt-flanged-small,6x12; |
132Y0612 |
from US $1.27 |
||
| replacement | |||||
|
132A
|
132A
132BD0612 BOLT-FLANGED-SMALL,6XBolt-flanged-small,6x12; |
132BD0612 |
from US $0.95 |
||
|
132B
|
132B
132Y0630 BOLT-FLANGED-SMALLBolt-flanged-small,6x30; |
132Y0630 |
from US $1.74 |
||
| replacement | |||||
|
132B
|
132B
132BD0630 BOLT-FLANGED-SMALLBolt-flanged-small,6x30; |
132BD0630 |
from US $1.27 |
||
|
482
|
482
482J6000 CIRCLIP-TYPE-E,6MMCirclip-type-e,6mm; |
482J6000 |
from US $1.05 |
||
|
551
|
551
551A0408 PIN,DOWEL,4X8Pin-dowel,4x8; |
551A0408 |
from US $1.17 |
||
|
670
|
670
670D1505 O-RING |
670D1505 |
from US $2.53 |
||
|
670A
|
670A
670D1507 O-RINGO ring,7mm; |
670D1507 |
from US $2.23 |
||
|
670B
|
670B
670D2016 O RINGO ring,16mm; |
670D2016 |
from US $2.23 |
||
|
12053
|
12053
12053-1440 GUIDE-CHAINGuide-chain,slack; |
12053-1440 |
from US $30.24 |
||
|
13234
|
13234
13234-1112 SHAFT-COMP,OIL PUMPShaft-comp,oil pump; |
13234-1112 |
US $75.14 |
||
|
16097
|
16097
16097-1072
Filter-assy-oil
|
16097-1072 |
— | ||
| replacement | |||||
|
16097
|
16097
16097-0008 FILTER-ASSY-OILオイル |
16097-0008 |
from US $14.84 |
||
|
16130
|
16130
16130-1058 VALVE-ASSY-RELIEF |
16130-1058 |
from US $28.12 |
||
|
16142
|
16142
16142-1162 COVER-PUMP |
16142-1162 |
from US $28.08 |
||
|
16154
|
16154
16154-2059 ROTOR-PUMP-INNERRotor-pump,inner; |
16154-2059 |
from US $9.37 |
||
|
16154A
|
16154A
16154-2060 ROTOR-PUMP-OUTERRotor-pump,outer; |
16154-2060 |
from US $10.68 |
||
|
26011
|
26011
26011-1755 WIRE-LEAD |
26011-1755 |
from US $12.76 |
||
|
27010
|
27010
27010-1313 SWITCH,OIL PRESSURESwitch,oil pressure; |
27010-1313 |
from US $32.42 |
||
|
32033
|
32033
32033-1535 PIPEPipe,oil filter; |
32033-1535 |
from US $9.19 |
||
|
32153
|
32153
32153-1189 PIPE |
32153-1189 |
from US $5.44 |
||
|
39193
|
39193
39193-1052 PIPE-OIL,CRANKSHAFTPipe-oil,crankshaft; |
39193-1052 |
from US $33.90 |
||
|
39193A
|
39193A
39193-1053 PIPE-OIL,CRANKCASE,LHPipe-oil,crankcase,lh; |
39193-1053 |
from US $85.54 |
||
| replacement | |||||
|
39193A
|
39193A
39193-0592 Pipe-Oil,Crankcase,LhPipe-oil,crankcase,lh; |
39193-0592 |
US $153.97 |
||
|
39193B
|
39193B
39193-1054 PIPE-OIL,CRANKCASE,RHPipe-oil,crankcase,rh; |
39193-1054 |
from US $35.31 |
||
|
49065
|
49065
49065-1086 FILTER-OIL |
49065-1086 |
from US $11.04 |
||
|
92043
|
92043
92043-076 PIN-NEUTRAL POSITION |
92043-076 |
from US $7.44 |
||
|
92057
|
92057
92057-1486 CHAIN |
92057-1486 |
from US $23.49 |
||
|
92081
|
92081
92081-112 SPRING |
92081-112 |
from US $3.64 |
||
|
92143
|
92143
92143-1857 COLLAR |
92143-1857 |
from US $1.74 |
||
|
92151
|
92151
92151-1781 BOLTBolt,16x41; |
92151-1781 |
from US $16.01 |
||
|
92171
|
92171
92171-1329 CLAMP |
92171-1329 |
from US $1.24 |
||
