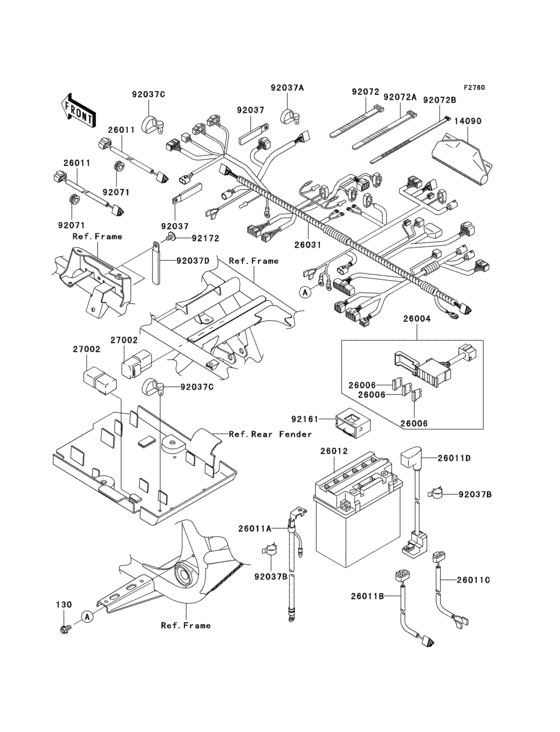

Chassis electrical equipment Diagram Kawasaki KVF700 Prairie 700 4X4 Team Green Special Edition
- Model code
- KVF700-D1
- Engine Capacity
- 697
- Year
- 2005
- Sales region
- Canada
- Colour
- Lime Green (777)
- Power
- 47 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 700 4X4 Team Green Special Edition
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130B0612 BOLT,FLANGE,6X12 |
130B0612 |
US $7.70 |
||
| replacements | |||||
|
130
|
130
130AA0612 BOLT,FLANGE,6X12 |
130AA0612 |
from US $0.91 |
||
|
130
|
130
130BA0612 BOLT-FLANGED,6X12 |
130BA0612 |
from US $0.76 |
||
|
14090
|
14090
14090-1331 COVER,COUPLER |
14090-1331 |
from US $5.46 |
||
|
26004
|
26004
26004-0010 FUSE-ASSY |
26004-0010 |
from US $26.91 |
||
|
26006
|
26006
26006-1007 FUSE,BLADE,10A,RED |
26006-1007 |
from US $3.02 |
||
|
26011
|
26011
26011-1741 WIRE-LEAD,HEAD LAMP |
26011-1741 |
US $20.20 |
||
| replacement | |||||
|
26011
|
26011
26011-0143 WIRE-LEAD,HEAD LAMP |
26011-0143 |
US $20.20 |
||
|
26011A
|
26011A
26011-1752 WIRE-LEAD,BATTERY(-) |
26011-1752 |
from US $19.81 |
||
| replacement | |||||
|
26011A
|
26011A
26011-0148 WIRE-LEAD,BATTERY(-) |
26011-0148 |
US $15.75 |
||
|
26011B
|
26011B
26011-1801 WIRE-LEAD,SPEED SENSO |
26011-1801 |
from US $18.30 |
||
|
26011C
|
26011C
26011-1802 WIRE-LEAD,FRONT BRAKE |
26011-1802 |
from US $13.30 |
||
|
26011D
|
26011D
26011-1827 WIRE-LEAD,BATTERY(+) |
26011-1827 |
US $46.71 |
||
| replacement | |||||
|
26011D
|
26011D
26011-0142 WIRE-LEAD,BATTERY(+) |
26011-0142 |
US $46.71 |
||
|
26012
|
26012
26012-1414 MF,KMX14-BS,12V 12AH |
26012-1414 |
US $115.10 |
||
| replacement | |||||
|
26012
|
26012
26012-0785 MF,KMX14-BS,12V 12AH |
26012-0785 |
US $115.10 |
||
|
26031
|
26031
26031-0216 HARNESS,MAIN |
26031-0216 |
from US $361.37 |
||
|
27002
|
27002
27002-1086 RELAY-ASSY |
27002-1086 |
from US $27.06 |
||
|
92037
|
92037
92037-1069
CLAMP
|
92037-1069 |
— | ||
| replacement | |||||
|
92037
|
92037
92171-0652 CLAMP |
92171-0652 |
from US $1.12 |
||
|
92037A
|
92037A
92037-1163 CLAMP |
92037-1163 |
from US $3.50 |
||
|
92037B
|
92037B
92037-1878 CLAMP,HARNESS |
92037-1878 |
from US $4.69 |
||
|
92037C
|
92037C
92037-1903 CLAMP |
92037-1903 |
from US $4.62 |
||
|
92037D
|
92037D
92037-1993 CLAMP |
92037-1993 |
from US $2.66 |
||
|
92071
|
92071
92071-1128 GROMMET |
92071-1128 |
from US $3.02 |
||
|
92072
|
92072
92072-030 BAND,SHORT |
92072-030 |
from US $2.72 |
||
|
92072A
|
92072A
92072-031 BAND,MIDDLE |
92072-031 |
from US $2.72 |
||
|
92072B
|
92072B
92072-1239 BAND,L=188 |
92072-1239 |
from US $1.10 |
||
|
92161
|
92161
92161-1136 DAMPER,FUSE |
92161-1136 |
from US $5.89 |
||
|
92172
|
92172
92172-0005 SCREW, 6X10 |
92172-0005 |
from US $1.06 |
||
