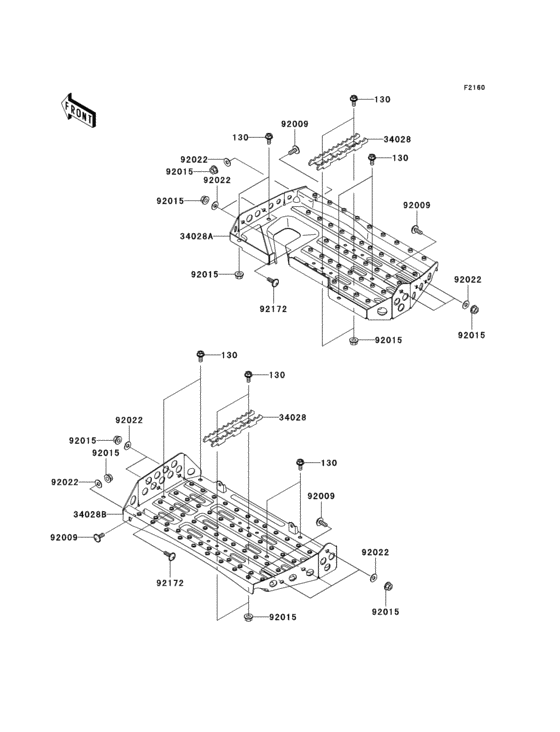

Footrests Diagram Kawasaki KVF700 Prairie 700 4X4 Team Green Special Edition
- Model code
- KVF700-D1
- Engine Capacity
- 697
- Year
- 2005
- Sales region
- Canada
- Colour
- Lime Green (777)
- Power
- 47 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 700 4X4 Team Green Special Edition
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130J0614
BOLT-FLANGED,6X14
|
130J0614 |
— | ||
| replacement | |||||
|
130
|
130
130BB0614 BOLT-FLANGED,6X14 |
130BB0614 |
from US $1.06 |
||
|
34028
|
34028
34028-1487-10 STEP,FOOT PEG,BLACK |
34028-1487-10 |
US $7.16 |
||
|
34028A
|
34028A
34028-1513-10 STEP,RH,BLACK |
34028-1513-10 |
US $98.51 |
||
|
34028B
|
34028B
34028-1521-10 STEP,LH,BLACK |
34028-1521-10 |
US $98.51 |
||
|
92009
|
92009
92009-1621
SCREW
|
92009-1621 |
— | ||
| replacement | |||||
|
92009
|
92009
92009-1694 SCREW |
92009-1694 |
from US $4.60 |
||
|
92015
|
92015
92015-1367 NUT,FLANGED,6MM |
92015-1367 |
from US $2.52 |
||
|
92022
|
92022
92022-1093 WASHER,6.5X16X1.0 |
92022-1093 |
from US $1.36 |
||
|
92172
|
92172
92172-0002 SCREW,6X18 |
92172-0002 |
from US $1.12 |
||
