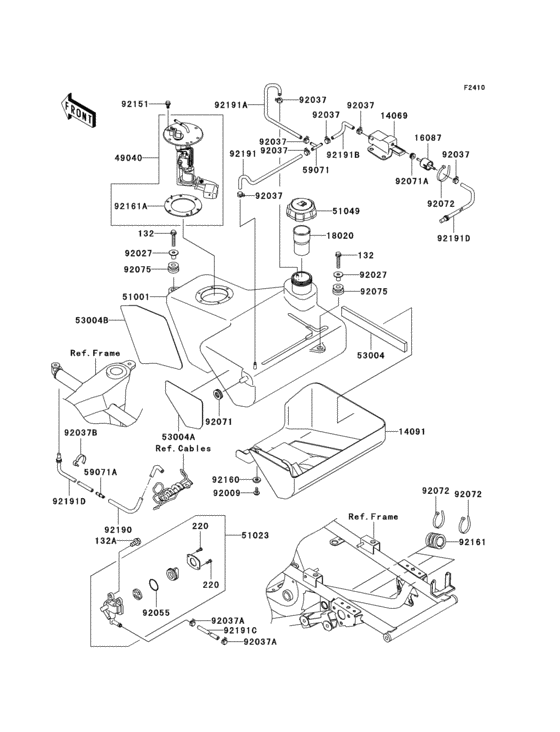

Fuel tank Diagram Kawasaki KVF700 Prairie 700 4X4 Team Green Special Edition
- Model code
- KVF700-D1
- Engine Capacity
- 697
- Year
- 2005
- Sales region
- Canada
- Colour
- Lime Green (777)
- Power
- 47 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 700 4X4 Team Green Special Edition
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132G0630
BOLT-FLANGED-SMALL
|
132G0630 |
— | ||
| replacement | |||||
|
132
|
132
132BA0630 BOLT-FLANGED-SMALL |
132BA0630 |
from US $1.12 |
||
|
132A
|
132A
132J0612
BOLT-FLANGED-SMALL,6X
|
132J0612 |
— | ||
| replacement | |||||
|
132A
|
132A
132BB0612 BOLT-FLANGED-SMALL,6X |
132BB0612 |
from US $0.91 |
||
|
220
|
220
220B0308
SCREW PAN HEAD 3X8
|
220B0308 |
— | ||
| replacement | |||||
|
220
|
220
220AA0308 SCREW-PAN-CROS |
220AA0308 |
from US $0.76 |
||
|
14069
|
14069
14069-1069 BREATHER,TANK |
14069-1069 |
US $16.05 |
||
|
14091
|
14091
14091-1404 COVER,FUEL TANK |
14091-1404 |
US $48.58 |
||
| replacement | |||||
|
14091
|
14091
16146-1226
COVER-ASSY,FUEL TANK
|
16146-1226 |
— | ||
|
16087
|
16087
16087-1054 VALVE-CHECK |
16087-1054 |
from US $30.24 |
||
|
18020
|
18020
18020-1278 BAFFLE,FUEL TANK CAP |
18020-1278 |
US $8.73 |
||
|
49040
|
49040
49040-0006 PUMP-FUEL |
49040-0006 |
from US $817.99 |
||
|
51001
|
51001
51001-1638 TANK-COMP-FUEL |
51001-1638 |
US $223.95 |
||
|
51023
|
51023
51023-0002 TAP-ASSY,FUEL |
51023-0002 |
from US $74.84 |
||
|
51049
|
51049
51049-1128 CAP-TANK,FUEL |
51049-1128 |
from US $41.89 |
||
|
53004
|
53004
53004-1161 MAT |
53004-1161 |
from US $4.84 |
||
|
53004A
|
53004A
53004-1164 MAT,FUEL TANK |
53004-1164 |
from US $8.76 |
||
|
53004B
|
53004B
53004-1165 MAT,FUEL TANK |
53004-1165 |
from US $8.76 |
||
|
59071
|
59071
59071-3705 JOINT |
59071-3705 |
from US $3.94 |
||
|
59071A
|
59071A
59071-3717 JOINT |
59071-3717 |
from US $1.82 |
||
|
92009
|
92009
92009-1480 SCREW |
92009-1480 |
from US $2.10 |
||
|
92027
|
92027
92027-1847 COLLAR,6=16.1 |
92027-1847 |
from US $3.18 |
||
|
92037
|
92037
92037-1461 TUBE CLAMP |
92037-1461 |
from US $2.72 |
||
|
92037A
|
92037A
92037-1505 CLAMP,TUBE |
92037-1505 |
from US $2.72 |
||
|
92037B
|
92037B
92037-1552 CLAMP |
92037-1552 |
from US $5.89 |
||
|
92055
|
92055
92055-0017 RING-O |
92055-0017 |
US $1.63 |
||
|
92071
|
92071
92071-1249 GROMMET,AIR SUCTION V |
92071-1249 |
from US $2.27 |
||
|
92071A
|
92071A
92071-1266 GROMMET |
92071-1266 |
from US $2.72 |
||
|
92072
|
92072
92072-1239 BAND,L=188 |
92072-1239 |
from US $1.10 |
||
|
92075
|
92075
92075-1787 DAMPER |
92075-1787 |
from US $3.47 |
||
|
92151
|
92151
92151-1754 BOLT,FLANGED,5X11.5 |
92151-1754 |
from US $0.91 |
||
|
92160
|
92160
92160-1017 DAMPER |
92160-1017 |
from US $3.18 |
||
|
92161
|
92161
92161-1111 DAMPER,FUEL TANK,RR |
92161-1111 |
US $4.83 |
||
|
92161A
|
92161A
92161-1272 DAMPER,FUEL PUMP |
92161-1272 |
from US $5.89 |
||
|
92190
|
92190
92190-1256 TUBE |
92190-1256 |
from US $3.93 |
||
|
92191
|
92191
92191-1639 TUBE,TANK-FRONT |
92191-1639 |
from US $6.05 |
||
|
92191A
|
92191A
92191-1640 TUBE,TANK-REAR |
92191-1640 |
from US $6.50 |
||
|
92191B
|
92191B
92191-1641 TUBE,5X9X160 |
92191-1641 |
from US $2.27 |
||
|
92191C
|
92191C
92191-1665 TUBE,5.3X10.5X425 |
92191-1665 |
from US $5.89 |
||
|
92191D
|
92191D
92191-1666 TUBE,TANK BREATHER |
92191-1666 |
from US $6.05 |
||
