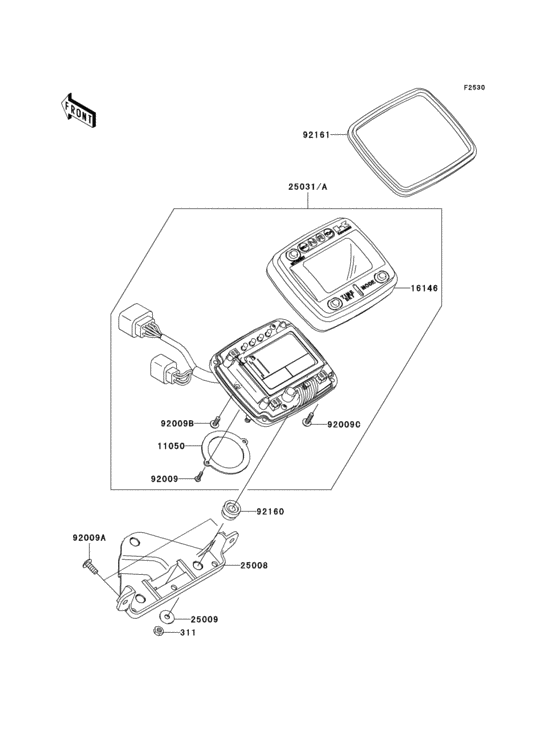

Meter(s) Diagram Kawasaki KVF700 Prairie 700 4X4 Team Green Special Edition
- Model code
- KVF700-D1
- Engine Capacity
- 697
- Year
- 2005
- Sales region
- Canada
- Colour
- Lime Green (777)
- Power
- 47 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 700 4X4 Team Green Special Edition
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
311
|
311
311C0500 NUT-HEX |
311C0500 |
from US $0.61 |
||
| replacement | |||||
|
311
|
311
311AB0500 NUT-HEX |
311AB0500 |
from US $0.75 |
||
|
11050
|
11050
11050-1932 BRACKET,METER |
11050-1932 |
from US $6.22 |
||
|
16146
|
16146
16146-0011 COVER-ASSY,UPPER |
16146-0011 |
from US $34.06 |
||
|
25008
|
25008
25008-1226 BRACKET-METER |
25008-1226 |
US $7.66 |
||
|
25009
|
25009
25009-004
WASHER,5.2X16X16X1.2T
|
25009-004 |
— | ||
| replacement | |||||
|
25009
|
25009
92200-2276
Washer,5.2X16X1.2
|
92200-2276 |
— | ||
|
25031A
|
25031A
25031-0026 Meter-assy,kph |
25031-0026 |
US $853.80 |
||
|
92009
|
92009
92009-1028
SCREW,TAPPING,3X12,BL
|
92009-1028 |
— | ||
| replacement | |||||
|
92009
|
92009
92009-1326 SCREW,3X12 |
92009-1326 |
from US $2.53 |
||
|
92009A
|
92009A
92009-1197 SCREW |
92009-1197 |
from US $2.53 |
||
|
92009B
|
92009B
92009-1254 SCREW,TAPPING,4X12 |
92009-1254 |
from US $2.65 |
||
|
92009C
|
92009C
92009-1663
SCREW,6X18
|
92009-1663 |
— | ||
| replacement | |||||
|
92009C
|
92009C
92009-3805 SCREW,6X18 |
92009-3805 |
from US $2.69 |
||
|
92160
|
92160
92160-1460 DAMPER |
92160-1460 |
from US $2.79 |
||
|
92161
|
92161
92161-1114 DAMPER,METER,UPP |
92161-1114 |
US $5.41 |
||
