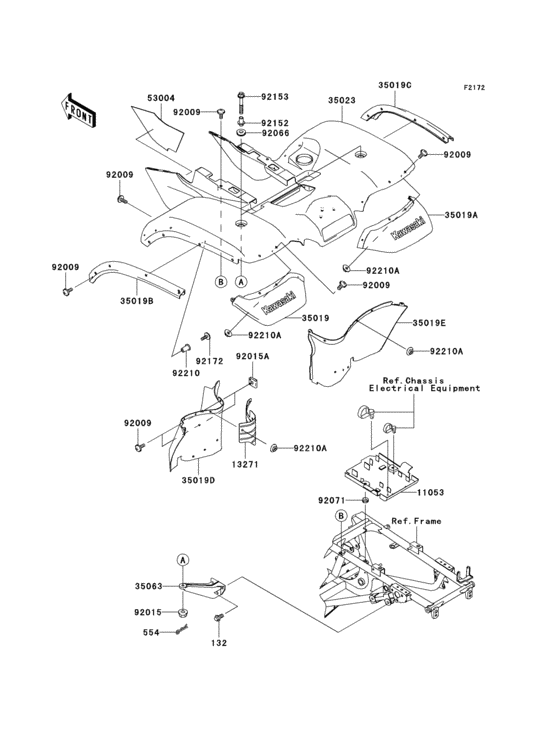

Rear fender(s) Diagram Kawasaki KVF700 Prairie 700 4X4 Team Green Special Edition
- Model code
- KVF700-D1
- Engine Capacity
- 697
- Year
- 2005
- Sales region
- Canada
- Colour
- Lime Green (777)
- Power
- 47 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 700 4X4 Team Green Special Edition
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132J0818 BOLT-FLANGED-SMALL |
132J0818 |
from US $1.74 |
||
| replacement | |||||
|
132
|
132
132BB0818 BOLT-FLANGED-SMALL |
132BB0818 |
from US $1.61 |
||
|
554
|
554
554A0800 PIN-SNAP |
554A0800 |
from US $2.09 |
||
| replacement | |||||
|
554
|
554
554DA0800 PIN-SNAP |
554DA0800 |
from US $0.63 |
||
|
11053
|
11053
11053-1308 BRACKET,ELECTRIC |
11053-1308 |
US $15.88 |
||
|
13271
|
13271
13271-1718 PLATE,HEAT GUARD |
13271-1718 |
from US $26.14 |
||
|
35019
|
35019
35019-1371-6Z FLAP,RR,RR,LH,F.BLACK |
35019-1371-6Z |
from US $22.31 |
||
|
35019A
|
35019A
35019-1372-6Z FLAP,RR,RR,RH,F.BLACK |
35019-1372-6Z |
from US $19.20 |
||
|
35019B
|
35019B
35019-1373-6Z FLAP,RR,SIDE,LH,F.BLA |
35019-1373-6Z |
US $26.28 |
||
|
35019C
|
35019C
35019-1374-6Z FLAP,RR,SIDE,RH,F.BLA |
35019-1374-6Z |
US $26.28 |
||
|
35019D
|
35019D
35019-1393-6Z FLAP,RR,FR,LH,F.BLACK |
35019-1393-6Z |
US $43.93 |
||
|
35019E
|
35019E
35019-1394-6Z FLAP,RR,FR,RH,F.BLACK |
35019-1394-6Z |
US $43.93 |
||
|
35023
|
35023
35023-1565-290 FENDER-REAR,L.GREEN |
35023-1565-290 |
US $289 |
||
|
35063
|
35063
35063-1100 STAY,RR FENDER |
35063-1100 |
from US $103.26 |
||
|
53004
|
53004
53004-1170 MAT,RR FENDER |
53004-1170 |
from US $18.82 |
||
|
92009
|
92009
92009-1621
SCREW
|
92009-1621 |
— | ||
| replacement | |||||
|
92009
|
92009
92009-1694 SCREW |
92009-1694 |
from US $5.13 |
||
|
92015
|
92015
92015-1397 NUT,FLANGED,8MM |
92015-1397 |
from US $3.37 |
||
|
92015A
|
92015A
92015-1678 NUT |
92015-1678 |
from US $3.17 |
||
|
92066
|
92066
92066-1438 PLUG |
92066-1438 |
from US $5.44 |
||
|
92071
|
92071
92071-1131 GROMMET |
92071-1131 |
from US $5.23 |
||
|
92152
|
92152
92152-0098 COLLAR,L=38.5 |
92152-0098 |
from US $6.38 |
||
|
92153
|
92153
92153-0326 BOLT,FLANGED,8X68 |
92153-0326 |
from US $3.11 |
||
|
92172
|
92172
92172-1063 SCREW,5X18 |
92172-1063 |
from US $1.40 |
||
|
92210
|
92210
92210-0012 NUT,POP,5MM |
92210-0012 |
from US $1.24 |
||
|
92210A
|
92210A
92210-1368 NUT,6MM |
92210-1368 |
from US $1.24 |
||
