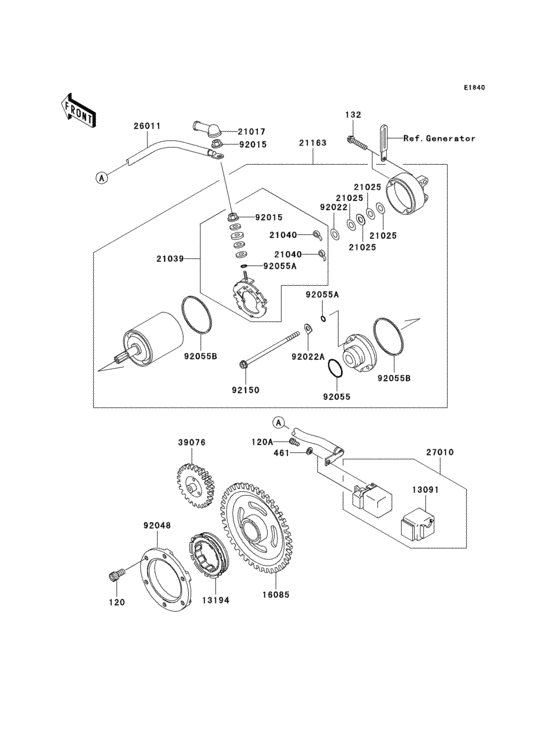

Starter motor Diagram Kawasaki KVF700 Prairie 700 4X4 Team Green Special Edition
- Model code
- KVF700-D1
- Engine Capacity
- 697
- Year
- 2005
- Sales region
- Canada
- Colour
- Lime Green (777)
- Power
- 47 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 700 4X4 Team Green Special Edition
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120P0816 BOLT-SOCKET |
120P0816 |
US $1.74 |
||
| replacement | |||||
|
120
|
120
120CA0816 BOLT-SOCKET |
120CA0816 |
from US $1.27 |
||
|
120A
|
120A
120S0510 BOLT-SOCKET,5X10 |
120S0510 |
from US $1.27 |
||
| replacement | |||||
|
120A
|
120A
120CB0510 BOLT-SOCKET,5X10 |
120CB0510 |
from US $0.95 |
||
|
132
|
132
132Y0630 BOLT-FLANGED-SMALL |
132Y0630 |
from US $1.74 |
||
| replacement | |||||
|
132
|
132
132BD0630 BOLT-FLANGED-SMALL |
132BD0630 |
from US $1.27 |
||
|
461
|
461
461K0500
WASHER-SPRING
|
461K0500 |
— | ||
| replacement | |||||
|
461
|
461
461DB0500 WASHER-SPRING |
461DB0500 |
from US $0.79 |
||
|
13091
|
13091
13091-1992 HOLDER |
13091-1992 |
from US $6.02 |
||
| replacement | |||||
|
13091
|
13091
13280-0818 HOLDER |
13280-0818 |
from US $5.28 |
||
|
13194
|
13194
13194-1094 CLUTCH-ONEWAY |
13194-1094 |
US $152.83 |
||
|
16085
|
16085
16085-1238 GEAR,STARTER |
16085-1238 |
from US $81.96 |
||
|
21017
|
21017
21017017 GROMMET,CORD |
21017017 |
from US $6.81 |
||
|
21025
|
21025
21025011 WASHER,THRUST,0.2T |
21025011 |
from US $4.28 |
||
|
21039
|
21039
21039-1063 BRUSH,CARBON |
21039-1063 |
from US $85.87 |
||
|
21040
|
21040
21040-1057 SPRING-BRUSH |
21040-1057 |
from US $6.18 |
||
|
21163
|
21163
21163-1320 Starter-electric |
21163-1320 |
US $838.71 |
||
| replacement | |||||
|
21163
|
21163
21163-0037 Starter-electric |
21163-0037 |
from US $713.84 |
||
|
26011
|
26011
26011-1814 WIRE-LEAD,STARTER CAB |
26011-1814 |
US $56.16 |
||
| replacement | |||||
|
26011
|
26011
26011-0110 WIRE-LEAD,STARTER CAB |
26011-0110 |
from US $23.64 |
||
|
27010
|
27010
27010-1376 SWITCH,MAGNETIC |
27010-1376 |
from US $100.08 |
||
| replacement | |||||
|
27010
|
27010
27010-0782 SWITCH,MAGNETIC |
27010-0782 |
from US $99.07 |
||
|
39076
|
39076
39076-0005 LIMITER,STARTER |
39076-0005 |
US $290.19 |
||
|
92015
|
92015
92015-1476 NUT,6MM |
92015-1476 |
from US $2.69 |
||
|
92022
|
92022
92022-1132 WASHER,THRUST,0.8T |
92022-1132 |
from US $3.48 |
||
|
92022A
|
92022A
92022-1458 WASHER,LOCK,T=2.0 |
92022-1458 |
from US $3.48 |
||
|
92048
|
92048
92048-0002 RACE,ONE WAY CLUTCH |
92048-0002 |
from US $88.03 |
||
|
92055
|
92055
92055-1276 RING-O |
92055-1276 |
from US $7.62 |
||
|
92055A
|
92055A
92055-1370 RING-O,4.5X2.0 |
92055-1370 |
from US $2.85 |
||
|
92055B
|
92055B
92055-1381 RING-O,STARTER MOTOR |
92055-1381 |
from US $6.34 |
||
|
92150
|
92150
92150-1243 BOLT |
92150-1243 |
US $8.41 |
||
