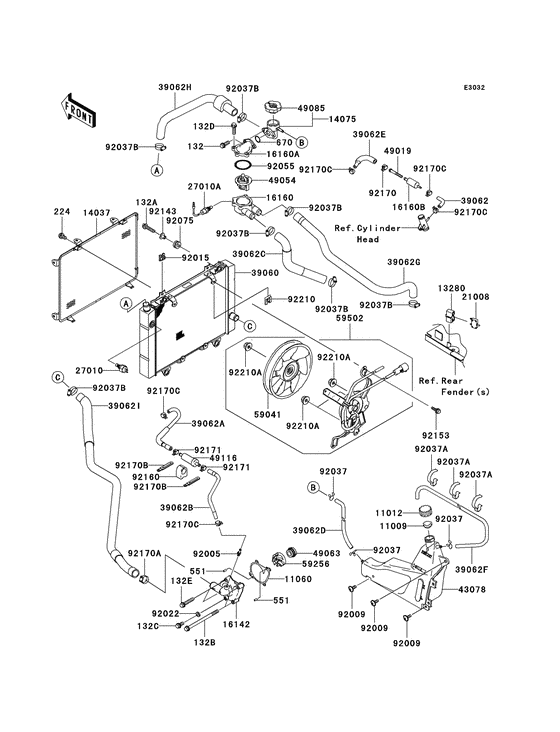

Radiator Diagram Kawasaki KVF700 Prairie 700 4X4
- Model code
- KVF700A6F
- Engine Capacity
- 697
- Year
- 2006
- Sales region
- USA
- Power
- 47 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 700 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11009
|
11009
11009-1145 GASKET,RESERVE TANKGasket,reservoir tank cap; |
11009-1145 |
from US $1.79 |
||
|
11012
|
11012
11012-1084 CAP,RESERVE TANK |
11012-1084 |
from US $2.14 |
||
|
11060
|
11060
11060-1964 GASKET,WATER PUMPGasket,water pump; |
11060-1964 |
from US $4.20 |
||
|
13280
|
13280
13280-0082 HOLDER,BREAKERHolder,breaker; |
13280-0082 |
from US $3.11 |
||
|
14037
|
14037
14037-1283 SCREEN,RADIATORScreen,radiator; |
14037-1283 |
US $82.31 |
||
|
14075
|
14075
14075-1105 CAP-ASSY,PRESSURECap-assy,pressure; |
14075-1105 |
from US $109.80 |
||
|
16142
|
16142
16142-0002 COVER-PUMP,WATERCover-pump,water; |
16142-0002 |
US $86.22 |
||
| replacement | |||||
|
16142
|
16142
16142-0727 COVER-PUMP,WATERCover-pump,water; |
16142-0727 |
from US $52.42 |
||
|
16160
|
16160
16160-1112 BODY,THERMOSTAT,LWRBody,thermostat,lwr; |
16160-1112 |
from US $55.80 |
||
| replacement | |||||
|
16160
|
16160
16160-0776 BODY,THERMOSTAT,LWRBody,thermostat,lwr; |
16160-0776 |
from US $50.23 |
||
|
16160A
|
16160A
16160-1113 BODY,THERMOSTAT,UPPBody,thermostat,upp; |
16160-1113 |
from US $44.88 |
||
|
16160B
|
16160B
16160-1359 BODY |
16160-1359 |
from US $6.34 |
||
|
21008
|
21008
21008-0001 BREAKER,FAN MOTORBreaker,fan motor; |
21008-0001 |
from US $19.28 |
||
|
27010
|
27010
27010-1202 SWITCH,FANSwitch,fan; |
27010-1202 |
from US $70.46 |
||
|
27010A
|
27010A
27010-1346 SWITCH,SENSOR WATERSwitch,sensor water; |
27010-1346 |
from US $88.56 |
||
|
39060
|
39060
39060-0011 Radiator |
39060-0011 |
from US $847.58 |
||
|
39062
|
39062
39062-1816 HOSE-COOLING,HEAD-FILHose-cooling,head-filter; |
39062-1816 |
US $7 |
||
|
39062A
|
39062A
39062-1817 HOSE-COOLING,CARB-VALHose-cooling,carb-valve; |
39062-1817 |
US $10.08 |
||
| replacement | |||||
|
39062A
|
39062A
39062-0592 HOSE-COOLING,CARB-VALHose-cooling,carb-valve; |
39062-0592 |
from US $6.68 |
||
|
39062B
|
39062B
39062-1818 HOSE-COOLING,VALVE-WAHose-cooling,valve-water pump; |
39062-1818 |
US $3.89 |
||
| replacement | |||||
|
39062B
|
39062B
39062-0593 HOSE-COOLING,VALVE-WAHose-cooling,valve-water pump; |
39062-0593 |
from US $2.65 |
||
|
39062C
|
39062C
39062-1820 HOSE-COOLING,HEAD,FR-Hose-cooling,head,fr-thermo; |
39062-1820 |
US $14.33 |
||
| replacement | |||||
|
39062C
|
39062C
39062-0181 HOSE-COOLING,HEAD,FR-Hose-cooling,head,fr-thermo; |
39062-0181 |
US $17.65 |
||
|
39062D
|
39062D
39062-1823 HOSE-COOLING,RADIATORHose-cooling,thermo-reserv; |
39062-1823 |
US $10.18 |
||
|
39062E
|
39062E
39062-1858 HOSE-COOLING,FILTER-CHose-cooling,filter-carb; |
39062-1858 |
from US $4.98 |
||
|
39062F
|
39062F
39062-1872 HOSE-COOLING,5.5X10.5Hose-cooling,5.5x10.5x1030; |
39062-1872 |
from US $7.16 |
||
|
39062G
|
39062G
39062-1874 HOSE-COOLING,HEAD,RR-Hose-cooling,head,rr-thermo; |
39062-1874 |
US $23.11 |
||
| replacement | |||||
|
39062G
|
39062G
39062-0182 HOSE-COOLING,HEAD,RR-Hose-cooling,head,rr-thermo; |
39062-0182 |
US $28.39 |
||
|
39062H
|
39062H
39062-1875 HOSE-COOLING,THERMO-RHose-cooling,thermo-radiator; |
39062-1875 |
US $37.21 |
||
| replacement | |||||
|
39062H
|
39062H
39062-0081 HOSE-COOLING,THERMO-RHose-cooling,thermo-radiator; |
39062-0081 |
US $47.46 |
||
|
39062I
|
39062I
39062-1893 HOSE-COOLING,RADIATORHose-cooling,radiator-pump; |
39062-1893 |
US $31.39 |
||
| replacement | |||||
|
39062I
|
39062I
39062-0183 HOSE-COOLING,RADIATORHose-cooling,radiator-pump; |
39062-0183 |
US $41.24 |
||
|
43078
|
43078
43078-1171
RESERVOIR
|
43078-1171 |
— | ||
| replacement | |||||
|
43078
|
43078
43078-0066 RESERVOIR |
43078-0066 |
from US $69.52 |
||
|
49019
|
49019
49019-1068 FILTER-WATER,STRAINER |
49019-1068 |
from US $5.23 |
||
|
49054
|
49054
49054-1055 THERMOSTAT |
49054-1055 |
from US $36.65 |
||
|
49063
|
49063
49063-1055 SEAL-MECHANICALSeal-mechanical,water; |
49063-1055 |
from US $20.64 |
||
|
49085
|
49085
49085-1067 PRESSURE CAP-ASSY |
49085-1067 |
from US $47.30 |
||
|
49116
|
49116
49116-1190 VALVE-ASSY |
49116-1190 |
from US $51.31 |
||
|
59041
|
59041
59041-1062 FAN |
59041-1062 |
from US $32.04 |
||
|
59256
|
59256
59256-1069 IMPELLER,WATER PUMP |
59256-1069 |
from US $16.79 |
||
|
59502
|
59502
59502-0012 FAN-ASSY |
59502-0012 |
from US $449.45 |
||
|
92005
|
92005
92005-1337 FITTINGFitting,bleed pipe; |
92005-1337 |
from US $15.05 |
||
|
92009
|
92009
92009-1621
SCREW
Screw,6x16; |
92009-1621 |
— | ||
| replacement | |||||
|
92009
|
92009
92009-1694 SCREWScrew,6x16; |
92009-1694 |
from US $5.13 |
||
|
92015
|
92015
92015-1487 NUT |
92015-1487 |
from US $4.25 |
||
|
92022
|
92022
92022-304 WASHER,PLAINWasher,6.2x11x1; |
92022-304 |
from US $2.53 |
||
|
92037
|
92037
92037-147 CLAMP,CHAIN OILERClamp,tube; |
92037-147 |
from US $4.95 |
||
|
92037A
|
92037A
92037-1552 CLAMPClamp,hose; |
92037-1552 |
from US $7.13 |
||
|
92037B
|
92037B
92037-1589 CLAMP,COOLING HOSEClamp,cooling hose; |
92037-1589 |
from US $12.04 |
||
|
132
|
132
132H0616 BOLT-FLANGED-SMALL,6XBolt-flanged-small,6x16; |
132H0616 |
from US $1.43 |
||
| replacement | |||||
|
132
|
132
132BA0616 BOLT-FLANGED-SMALL,6XBolt-flanged-small,6x16; |
132BA0616 |
from US $0.79 |
||
|
132A
|
132A
132H0625 BOLT-FLANGED-SMALL,6XBolt-flanged-small,6x25; |
132H0625 |
from US $1.74 |
||
| replacement | |||||
|
132A
|
132A
132BA0625 BOLT-FLANGED-SMALL,6XBolt-flanged-small,6x25; |
132BA0625 |
from US $1.27 |
||
|
132B
|
132B
132J0690 BOLT,6X80Bolt-flanged-small,6x90; |
132J0690 |
US $4.61 |
||
| replacements | |||||
|
132B
|
132B
132BB0690 BOLT-FLANGED-SMALLBolt-flanged-small,6x90; |
132BB0690 |
from US $1.56 |
||
|
132B
|
132B
132BB0680 BOLT,6X80Bolt-flanged-small,6x90; |
132BB0680 |
from US $3.48 |
||
|
132C
|
132C
132Y0612 BOLT-FLANGED-SMALL,6XBolt-flanged-small,6x12; |
132Y0612 |
from US $1.27 |
||
| replacement | |||||
|
132C
|
132C
132BD0612 BOLT-FLANGED-SMALL,6XBolt-flanged-small,6x12; |
132BD0612 |
from US $0.95 |
||
|
132D
|
132D
132Y0620 BOLT-FLANGED-SMALLBolt-flanged-small,6x20; |
132Y0620 |
US $1.43 |
||
| replacement | |||||
|
132D
|
132D
132BD0620 BOLT-FLANGED-SMALLBolt-flanged-small,6x20; |
132BD0620 |
from US $1.11 |
||
|
132E
|
132E
132Y0630 BOLT-FLANGED-SMALLBolt-flanged-small,6x30; |
132Y0630 |
from US $1.74 |
||
| replacement | |||||
|
132E
|
132E
132BD0630 BOLT-FLANGED-SMALLBolt-flanged-small,6x30; |
132BD0630 |
from US $1.27 |
||
|
224
|
224
224C0612 SCREW-PAN-WP-CROSScrew-pan-wp-cros,6x12; |
224C0612 |
from US $1.43 |
||
| replacement | |||||
|
224
|
224
224AB0612 SCREW-PAN-WP-CROSScrew-pan-wp-cros,6x12; |
224AB0612 |
from US $1.11 |
||
|
551
|
551
551A0408 PIN,DOWEL,4X8Pin-dowel,4x8; |
551A0408 |
from US $1.17 |
||
|
670
|
670
670B2020 0 RING,20MMO ring,20mm; |
670B2020 |
from US $1.68 |
||
|
92055
|
92055
92055-1279 RING-O,45MMRing-o,44.7x2.4; |
92055-1279 |
from US $4.80 |
||
|
92075
|
92075
92075-209 DAMPER RUBBER,RR FENR |
92075-209 |
from US $3.73 |
||
|
92143
|
92143
92143-1353 COLLAR |
92143-1353 |
from US $5.54 |
||
|
92153
|
92153
92153-0531 BOLT |
92153-0531 |
from US $1.11 |
||
|
92160
|
92160
92160-1451 DAMPER,VALVEDamper,valve; |
92160-1451 |
from US $7.92 |
||
|
92170
|
92170
92170-1491 CLAMP |
92170-1491 |
from US $5.07 |
||
|
92170A
|
92170A
92170-1497 Clamp, cooling hose |
92170-1497 |
US $13.27 |
||
| replacement | |||||
|
92170A
|
92170A
92171-0261 CLAMP |
92171-0261 |
from US $11.88 |
||
|
92170B
|
92170B
92170-1514 CLAMP,CARBURETOR HOSE |
92170-1514 |
from US $2.85 |
||
|
92170C
|
92170C
92170-2042 CLAMP |
92170-2042 |
from US $1.77 |
||
|
92171
|
92171
92171-0515 CLAMP |
92171-0515 |
from US $3.17 |
||
|
92210
|
92210
92210-1323 NUT |
92210-1323 |
from US $2.38 |
||
|
92210A
|
92210A
92210-1396 NUT |
92210-1396 |
from US $1.56 |
||
