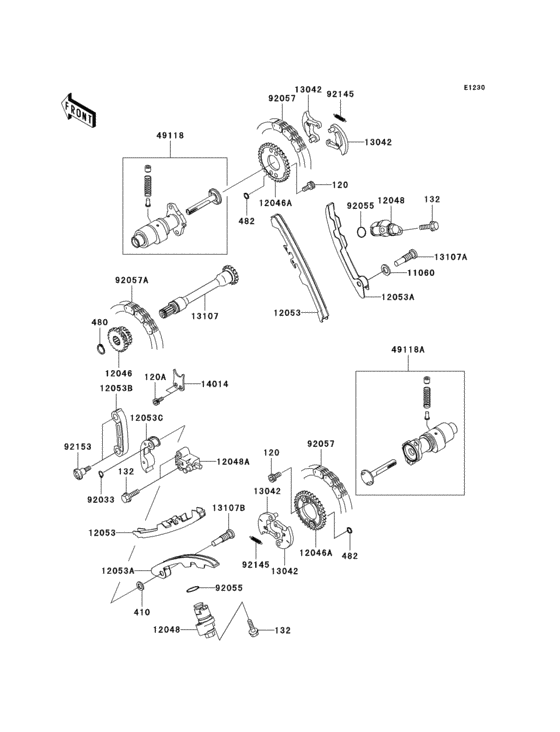

Camshaft(s)/tensioner Diagram Kawasaki KVF700 Prairie 700 4X4
- Model code
- KVF700A6F
- Engine Capacity
- 697
- Year
- 2006
- Sales region
- Canada
- Colour
- Colored Plastic Aztec Red (260)
- Power
- 47 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 700 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120P0610 BOLT-SOCKET,6X10 |
120P0610 |
from US $1.43 |
||
| replacement | |||||
|
120
|
120
120CA0610 BOLT-SOCKET,6X10 |
120CA0610 |
from US $1.07 |
||
|
120A
|
120A
120S0614 BOLT-SOCKET,6X14,BLAC |
120S0614 |
from US $1.43 |
||
| replacement | |||||
|
120A
|
120A
120CB0614 BOLT-SOCKET,6X14,BLAC |
120CB0614 |
from US $1.11 |
||
|
132
|
132
132Y0630 BOLT-FLANGED-SMALL |
132Y0630 |
from US $1.74 |
||
| replacement | |||||
|
132
|
132
132BD0630 BOLT-FLANGED-SMALL |
132BD0630 |
from US $1.27 |
||
|
410
|
410
410B0800 WASHER-PLAIN-SMALL,8M |
410B0800 |
US $0.79 |
||
| replacement | |||||
|
410
|
410
410AA0800 WASHER-PLAIN-SMALL,8M |
410AA0800 |
from US $0.63 |
||
|
480
|
480
480J1400 CIRCLIP 14MM |
480J1400 |
from US $1.11 |
||
|
482
|
482
482J5000 CIRCLIP-TYPE-E,5MM |
482J5000 |
from US $2.38 |
||
|
11060
|
11060
11060-1966 GASKET |
11060-1966 |
from US $1.56 |
||
|
12046
|
12046
12046-0021 Sprocket,21t&17t |
12046-0021 |
US $48.71 |
||
| replacement | |||||
|
12046
|
12046
12046-0562 SPROCKET,21T&17T |
12046-0562 |
from US $47.38 |
||
|
12046A
|
12046A
12046-1203 SPROCKET,CAMSHAFT,34T |
12046-1203 |
from US $46.22 |
||
|
12048
|
12048
12048-1176 TENSIONER-ASSY,CAM |
12048-1176 |
from US $95.90 |
||
|
12048A
|
12048A
12048-1177 TENSIONER-ASSY,SECOND |
12048-1177 |
from US $95.90 |
||
|
12053
|
12053
12053-1441 GUIDE-CHAIN,TENSIONER |
12053-1441 |
from US $33.26 |
||
|
12053A
|
12053A
12053-1442 GUIDE-CHAIN,SLACK |
12053-1442 |
from US $34.99 |
||
|
12053B
|
12053B
12053-1443 GUIDE-CHAIN,SLACK |
12053-1443 |
from US $15.84 |
||
|
12053C
|
12053C
12053-1444 GUIDE-CHAIN,TENSIONER |
12053-1444 |
from US $30.24 |
||
|
13042
|
13042
13042-1141 WEIGHT,DECOMP |
13042-1141 |
from US $27.53 |
||
|
13107
|
13107
13107-0029 SHAFT |
13107-0029 |
from US $114.77 |
||
|
13107A
|
13107A
13107-1443 SHAFT,CHAIN GUIDE,FR |
13107-1443 |
from US $6.38 |
||
|
13107B
|
13107B
13107-1444 SHAFT,CHAIN GUIDE,RR |
13107-1444 |
from US $7.62 |
||
|
14014
|
14014
14014-1148 PLATE-POSITION,DRIVE |
14014-1148 |
US $3.92 |
||
| replacement | |||||
|
14014
|
14014
14014-0050 PLATE-POSITION,DRIVE |
14014-0050 |
from US $2.06 |
||
|
49118
|
49118
49118-1193 CAMSHAFT-COMP,FR |
49118-1193 |
US $214.13 |
||
| replacement | |||||
|
49118
|
49118
49118-0732 CAMSHAFT-COMP,FR |
49118-0732 |
from US $214.13 |
||
|
49118A
|
49118A
49118-1194 CAMSHAFT-COMP,RR |
49118-1194 |
US $214.13 |
||
| replacement | |||||
|
49118A
|
49118A
49118-0733 CAMSHAFT-COMP,RR |
49118-0733 |
from US $214.13 |
||
|
92033
|
92033
92033-1039 CIRCLIP,8M/M |
92033-1039 |
from US $2.69 |
||
|
92055
|
92055
92055-086 O-RING |
92055-086 |
from US $3.37 |
||
|
92057
|
92057
92057-1487 CHAIN,CAM SHAFT |
92057-1487 |
from US $29.87 |
||
|
92057A
|
92057A
92057-1488 CHAIN,SECONDARY SHAFT |
92057-1488 |
from US $27.22 |
||
|
92145
|
92145
92145-1303 SPRING,DECOMP |
92145-1303 |
from US $1.40 |
||
|
92153
|
92153
92153-1200 BOLT |
92153-1200 |
from US $6.49 |
||
