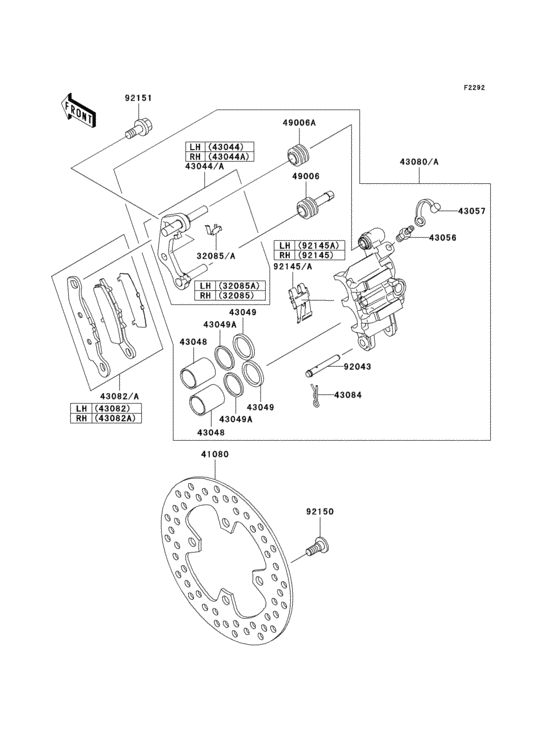

Front brake Diagram Kawasaki KVF700 Prairie 700 4X4
- Model code
- KVF700A6F
- Engine Capacity
- 697
- Year
- 2006
- Sales region
- Canada
- Colour
- Colored Plastic Aztec Red (260)
- Power
- 47 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 700 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32085
|
32085
32085-1437 STOPPER |
32085-1437 |
from US $9.19 |
||
|
32085A
|
32085A
32085-1517 STOPPER |
32085-1517 |
from US $4.98 |
||
|
41080
|
41080
41080-1513 DISC,FR |
41080-1513 |
US $207.83 |
||
| replacement | |||||
|
41080
|
41080
41080-0585 DISC,FR |
41080-0585 |
from US $233.50 |
||
|
43044
|
43044
43044-1130 Holder-comp-caliper,f |
43044-1130 |
US $145.17 |
||
| replacement | |||||
|
43044
|
43044
43044-0037 HOLDER-COMP-CALIPER,F |
43044-0037 |
from US $110.58 |
||
|
43044A
|
43044A
43044-1131 Holder-comp-caliper,f |
43044-1131 |
US $145.17 |
||
| replacement | |||||
|
43044A
|
43044A
43044-0038 HOLDER-COMP-CALIPER,F |
43044-0038 |
from US $110.58 |
||
|
43048
|
43048
43048-1083 PISTON-CALIPER |
43048-1083 |
from US $34.86 |
||
|
43049
|
43049
43049-1059 PACKING,PISTON |
43049-1059 |
from US $7.08 |
||
|
43049A
|
43049A
43049-1090 PACKING,PISTONPacking, piston seal; |
43049-1090 |
from US $7.75 |
||
|
43056
|
43056
43056-1054
Breather-brake
|
43056-1054 |
— | ||
| replacement | |||||
|
43056
|
43056
43085-001 BLEEDER SET |
43085-001 |
from US $14.69 |
||
|
43057
|
43057
43057-003 CAP,BREEDER |
43057-003 |
from US $3.01 |
||
|
43080
|
43080
43080-5081-DJ CALIPER-SUB-ASSY,FR,R |
43080-5081-DJ |
from US $320.37 |
||
|
43080A
|
43080A
43080-5082-DJ CALIPER-SUB-ASSY,FR,L |
43080-5082-DJ |
from US $320.37 |
||
|
43082
|
43082
43082-1255 PAD-ASSY-BRAKE |
43082-1255 |
from US $58.96 |
||
|
43082A
|
43082A
43082-1273 PAD-ASSY-BRAKE |
43082-1273 |
from US $58.96 |
||
|
43084
|
43084
43084003 CLIP |
43084003 |
from US $3.17 |
||
|
49006
|
49006
49006-1054 BOOT,CALIPER |
49006-1054 |
from US $8.55 |
||
|
49006A
|
49006A
49006-1055 BOOT,CALIPER |
49006-1055 |
from US $4.91 |
||
|
92043
|
92043
92043-1356 PIN,PAD |
92043-1356 |
from US $6.97 |
||
|
92145
|
92145
92145-1260 SPRING,PAD |
92145-1260 |
from US $9.35 |
||
|
92145A
|
92145A
92145-1354 SPRING,PAD |
92145-1354 |
from US $5.44 |
||
|
92150
|
92150
92150-1800 BOLT |
92150-1800 |
from US $5.14 |
||
|
92151
|
92151
92151-1793 BOLT,FLANGED,8X19 |
92151-1793 |
from US $1.40 |
||
