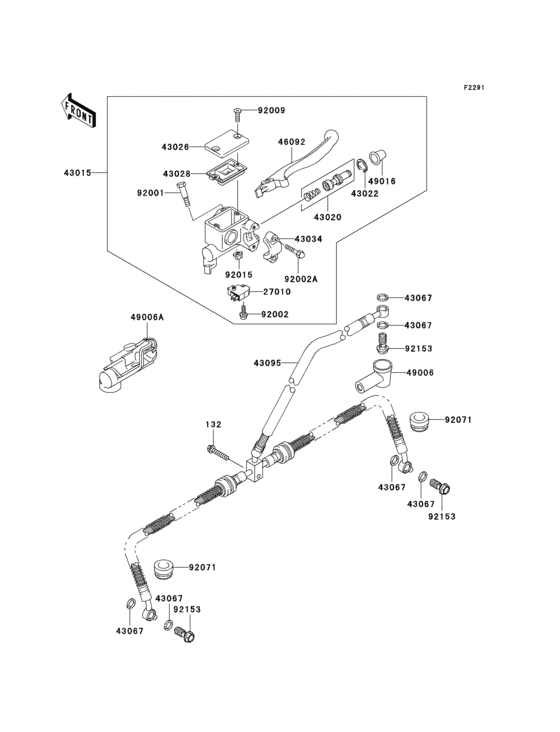

Front master cylinder Diagram Kawasaki KVF700 Prairie 700 4X4
- Model code
- KVF700A6F
- Engine Capacity
- 697
- Year
- 2006
- Sales region
- Canada
- Colour
- Colored Plastic Aztec Red (260)
- Power
- 47 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 700 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132J0630
BOLT,6X30
|
132J0630 |
— | ||
| replacement | |||||
|
132
|
132
132BB0630 BOLT,6X30 |
132BB0630 |
from US $2.69 |
||
|
27010
|
27010
27010-0025 SWITCH,BRAKE |
27010-0025 |
from US $23.19 |
||
|
43015
|
43015
43015-1646 CYLINDER-ASSY-MASTER, |
43015-1646 |
from US $301.71 |
||
|
43020
|
43020
43020-1056 PISTON-COMP-BRAKE,FR |
43020-1056 |
from US $42.04 |
||
|
43022
|
43022
43022-1010 BRAKE PISTON STOPPER |
43022-1010 |
from US $4.09 |
||
|
43026
|
43026
43026-1074 CAP-BRAKE |
43026-1074 |
from US $17.42 |
||
|
43028
|
43028
43028-1061 DIAPHRAGM |
43028-1061 |
from US $11.72 |
||
|
43034
|
43034
43034-1016 HOLDER-BRAKE,MASTER C |
43034-1016 |
from US $14.10 |
||
|
43067
|
43067
43067-001 WASHER-SEAL,10.1X14.5 |
43067-001 |
US $4.12 |
||
| replacement | |||||
|
43067
|
43067
49091-0001 WASHER-SEAL,10.1X14.5 |
49091-0001 |
from US $1.27 |
||
|
43095
|
43095
43095-1401 HOSE-BRAKE,FR |
43095-1401 |
from US $124.57 |
||
|
46092
|
46092
46092-1208 LEVER-GRIP,FRONT BRAK |
46092-1208 |
from US $21.90 |
||
|
49006
|
49006
49006-1040 BOOT,DUST |
49006-1040 |
from US $7.29 |
||
| replacement | |||||
|
49006
|
49006
49006-1041 BOOT,DUST |
49006-1041 |
from US $9.35 |
||
|
49006A
|
49006A
49006-1338 BOOT,RH |
49006-1338 |
from US $9.36 |
||
|
49016
|
49016
49016-1044 COVER-SEAL,MASTER CYLINDER |
49016-1044 |
from US $10.08 |
||
|
92001
|
92001
92001-1728 BOLT,FRONT BRAKE LEVER |
92001-1728 |
from US $10.45 |
||
|
92002
|
92002
92002-1323 BOLT |
92002-1323 |
from US $2.53 |
||
|
92002A
|
92002A
92002-1894 BOLT |
92002-1894 |
from US $3.17 |
||
|
92009
|
92009
92009-1458 SCREW,4MM |
92009-1458 |
from US $3.02 |
||
|
92015
|
92015
92015-1233 NUT,FLANGED,6MM |
92015-1233 |
from US $3.90 |
||
|
92071
|
92071
92071-1264 GROMMET |
92071-1264 |
US $4.96 |
||
|
92153
|
92153
92153-0627 BOLT,OIL,L=23 |
92153-0627 |
from US $2.85 |
||
