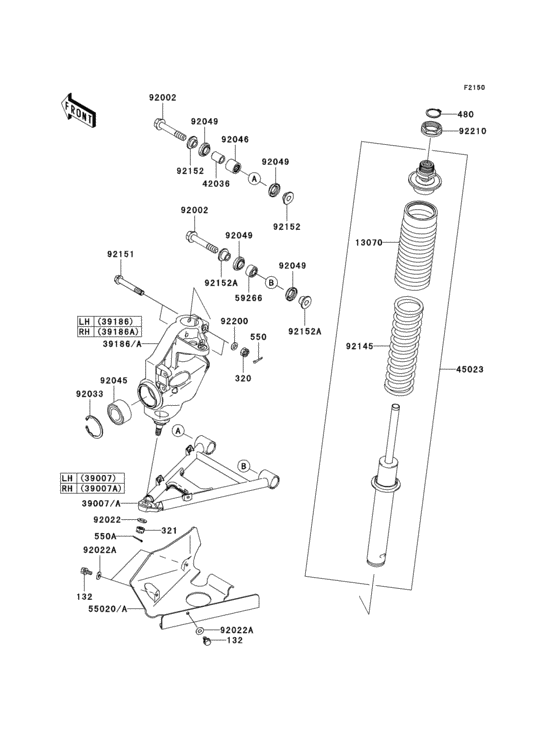

Suspension Diagram Kawasaki KVF700 Prairie 700 4X4
- Model code
- KVF700A6F
- Engine Capacity
- 697
- Year
- 2006
- Sales region
- Canada
- Colour
- Colored Plastic Aztec Red (260)
- Power
- 47 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 700 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132J0612
BOLT-FLANGED-SMALL,6X
|
132J0612 |
— | ||
| replacement | |||||
|
132
|
132
132BB0612 BOLT-FLANGED-SMALL,6X |
132BB0612 |
from US $0.95 |
||
|
320
|
320
320H1000 NUT-CASTLE |
320H1000 |
US $6.80 |
||
| replacement | |||||
|
320
|
320
320BA1000 NUT-CASTLE |
320BA1000 |
from US $1.24 |
||
|
321
|
321
321H1200 NUT-CASTLE,12MM |
321H1200 |
US $5.02 |
||
| replacement | |||||
|
321
|
321
321BA1200 NUT-CASTLE,12MM |
321BA1200 |
from US $1.56 |
||
|
480
|
480
480J3200 CIRCRIP-TYPE-C |
480J3200 |
from US $1.43 |
||
|
550
|
550
550D2015
PIN-COTTER,2.0X15
|
550D2015 |
— | ||
| replacement | |||||
|
550
|
550
550AA2015 PIN-COTTER,2.0X15 |
550AA2015 |
from US $0.63 |
||
|
550A
|
550A
550D3025 PIN-COTTER,3.0X25 |
550D3025 |
from US $0.27 |
||
| replacement | |||||
|
550A
|
550A
550AA3025 PIN-COTTER,3.0X25 |
550AA3025 |
from US $0.95 |
||
|
13070
|
13070
13070-1383 GUIDE,STRUT |
13070-1383 |
from US $20.84 |
||
|
39007
|
39007
39007-0058 ARM-SUSP,LH |
39007-0058 |
US $97.89 |
||
|
39007A
|
39007A
39007-0059 ARM-SUSP,RH |
39007-0059 |
US $97.89 |
||
|
39186
|
39186
39186-0041 KNUCKLE ASSY,FR,LH |
39186-0041 |
US $314.86 |
||
|
39186A
|
39186A
39186-0042 KNUCKLE ASSY,FR,RH |
39186-0042 |
US $314.86 |
||
|
42036
|
42036
42036-1365 SLEEVE,12X20X26.7 |
42036-1365 |
from US $15.66 |
||
|
45023
|
45023
45023-0004 STRUT |
45023-0004 |
from US $317.26 |
||
|
55020
|
55020
55020-1768 GUARD,FRONT AXLE,LH |
55020-1768 |
US $14.11 |
||
|
55020A
|
55020A
55020-1769 GUARD,FRONT AXLE,RH |
55020-1769 |
US $14.11 |
||
|
59266
|
59266
59266-1118 JOINT-BALL |
59266-1118 |
from US $52.42 |
||
|
92002
|
92002
92002-1861 BOLT,FLANGED,12X67 |
92002-1861 |
from US $7.44 |
||
|
92022
|
92022
92022-1065 WASHER,12.3X22X1.6 |
92022-1065 |
from US $2.53 |
||
|
92022A
|
92022A
92022-1344 WASHER,7X16X1.2 |
92022-1344 |
from US $2.53 |
||
|
92033
|
92033
92033-1274 RING-SNAP |
92033-1274 |
from US $5.60 |
||
|
92045
|
92045
92045-1448 BEARING-BALL,30BWD08A |
92045-1448 |
from US $66.56 |
||
|
92046
|
92046
92046-1290 BEARING-NEEDLE,TA2027 |
92046-1290 |
from US $14.31 |
||
|
92049
|
92049
92049-1539 SEAL-OIL,MF020N3 |
92049-1539 |
from US $10.13 |
||
|
92145
|
92145
92145-0009 SPRING,STRUT |
92145-0009 |
from US $139.81 |
||
|
92151
|
92151
92151-1709 BOLT,FLANGED,10X65 |
92151-1709 |
from US $12.04 |
||
|
92152
|
92152
92152-1295 COLLAR |
92152-1295 |
from US $11.37 |
||
|
92152A
|
92152A
92152-1296 COLLAR |
92152-1296 |
from US $14.59 |
||
|
92200
|
92200
92200-1042 WASHER,10.5X19X2.3 |
92200-1042 |
from US $2.53 |
||
|
92210
|
92210
92210-1226 NUT,FLANGED,35MM |
92210-1226 |
from US $10.27 |
||
