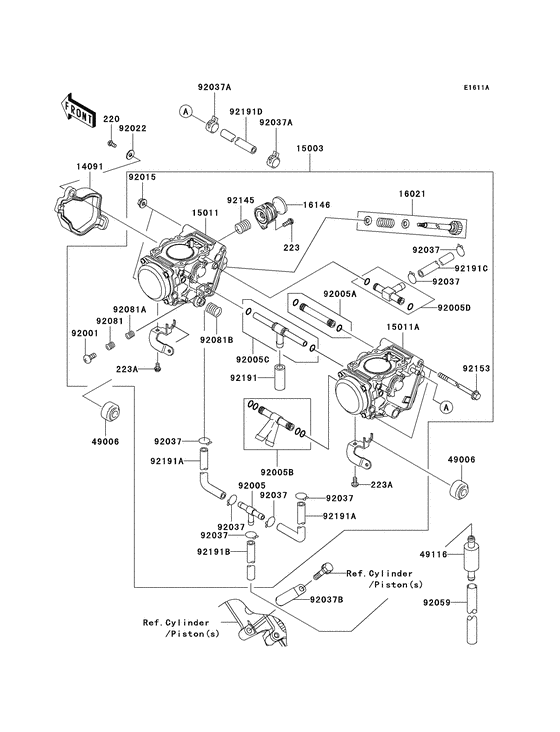

Carburetor (Cn) Diagram Kawasaki KVF700 Prairie 700 4X4 Team Green Special Edition
- Model code
- KVF700D6F
- Engine Capacity
- 697
- Year
- 2006
- Sales region
- USA
- Power
- 47 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 700 4X4 Team Green Special Edition
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
14091
|
14091
14091-1196 COVER,THROTTLE CABLECover,throttle cable; |
14091-1196 |
from US $5.89 |
||
|
15003
|
15003
15003-0007 CARBURETOR-ASSY,PRIMACarburetor-assy,primary pump; |
15003-0007 |
from US $1,474.20 |
||
|
15011
|
15011
15011-0019 CARBURETOR,FRCarburetor,fr; |
15011-0019 |
US $783.13 |
||
|
15011A
|
15011A
15011-0020 CARBURETOR,RRCarburetor,rr; |
15011-0020 |
US $783.13 |
||
|
16021
|
16021
16021-1238 SCREW-THROTTLE STOP |
16021-1238 |
from US $59.76 |
||
|
16146
|
16146
16146-1225 COVER-ASSY,PRIMINGCover-assy,priming; |
16146-1225 |
from US $31.15 |
||
|
49006
|
49006
49006-1353 BOOT,STARTER CABLEBoot,starter cable; |
49006-1353 |
from US $1.96 |
||
|
49116
|
49116
49116-1126 VALVE-ASSY |
49116-1126 |
from US $17.59 |
||
|
92001
|
92001
92001-1998 BOLT,THROTTLE ADJUSTBolt,throttle adjust; |
92001-1998 |
from US $9.38 |
||
|
92005
|
92005
92005-1112 FITTING,FUEL,T-TYPEFitting,fuel,t-type; |
92005-1112 |
from US $8.78 |
||
|
92005A
|
92005A
92005-1375 FITTING |
92005-1375 |
from US $13.61 |
||
|
92005B
|
92005B
92005-1376 FITTING |
92005-1376 |
from US $13.61 |
||
|
92005C
|
92005C
92005-1385 FITTING |
92005-1385 |
from US $22.08 |
||
|
92005D
|
92005D
92005-1393 FITTING |
92005-1393 |
from US $5.29 |
||
|
92015
|
92015
92015-1259 NUT,FLANGED,5MMNut,flanged,5mm; |
92015-1259 |
from US $2.27 |
||
|
92022
|
92022
92022-1380 WASHER,5.2X13X1Washer,5.2x13x1; |
92022-1380 |
from US $2.24 |
||
|
92037
|
92037
92037-1201 CLAMPClamp,tube; |
92037-1201 |
from US $2.87 |
||
|
92037A
|
92037A
92037-1505 CLAMP,TUBEClamp,tube; |
92037-1505 |
from US $2.72 |
||
|
92037B
|
92037B
92037-1539 CLAMP,WIRING HARNESSClamp,l=45; |
92037-1539 |
from US $2.72 |
||
|
92059
|
92059
92059-1736 TUBE,7X10X100Tube,7x10x100; |
92059-1736 |
from US $2.72 |
||
|
92081
|
92081
92081-1620 SPRING,THROTTLE ADJUS |
92081-1620 |
from US $2.72 |
||
|
92081A
|
92081A
92081-1621 SPRING,THROTTLE ADJUSSpring,throttle adjust lwr; |
92081-1621 |
from US $3.02 |
||
|
220
|
220
220B0408
SCREW-PAN-CROS
Screw-pan-cros,4x8; |
220B0408 |
— | ||
| replacement | |||||
|
220
|
220
220AA0408 SCREW-PAN-CROSScrew-pan-cros,4x8; |
220AA0408 |
from US $0.70 |
||
|
223
|
223
223C0412 SCREW-PAN-WS-CROSScrew-pan-ws-cros,4x12; |
223C0412 |
US $3.05 |
||
| replacement | |||||
|
223
|
223
223AB0412 SCREW-PAN-WS-CROSScrew-pan-ws-cros,4x12; |
223AB0412 |
from US $1.06 |
||
|
223A
|
223A
223D0408
SCREW-PAN-WS-CROS,4X8
Screw-pan-ws-cros,4x8; |
223D0408 |
— | ||
| replacement | |||||
|
223A
|
223A
223AA0408 SCREW-PAN-WS-CROS,4X8Screw-pan-ws-cros,4x8; |
223AA0408 |
from US $0.60 |
||
|
92081B
|
92081B
92081-1622 SPRING,THROTTLE ADJUSSpring,throttle adjust cnt; |
92081-1622 |
from US $6.36 |
||
|
92145
|
92145
92145-1451 SPRING,PRIMINGSpring,priming; |
92145-1451 |
from US $4.38 |
||
|
92153
|
92153
92153-1068 BOLT,5X143Bolt,5x143; |
92153-1068 |
from US $3.78 |
||
|
92191
|
92191
92191-1672 TUBE,7X11X25Tube,7x11x25; |
92191-1672 |
from US $2.27 |
||
|
92191A
|
92191A
92191-1673 TUBE,4.5X8X65Tube,4.5x8x65; |
92191-1673 |
from US $2.72 |
||
|
92191B
|
92191B
92191-1674 TUBE,4.5X8X420Tube,4.5x8x420; |
92191-1674 |
from US $6.20 |
||
|
92191C
|
92191C
92191-1676 TUBE,4.5X8.5X35Tube,4.5x8.5x35; |
92191-1676 |
from US $2.27 |
||
|
92191D
|
92191D
92191-1694 TUBE,5.3X10.3X200Tube,5.3x10.3x200; |
92191-1694 |
from US $6.20 |
||
