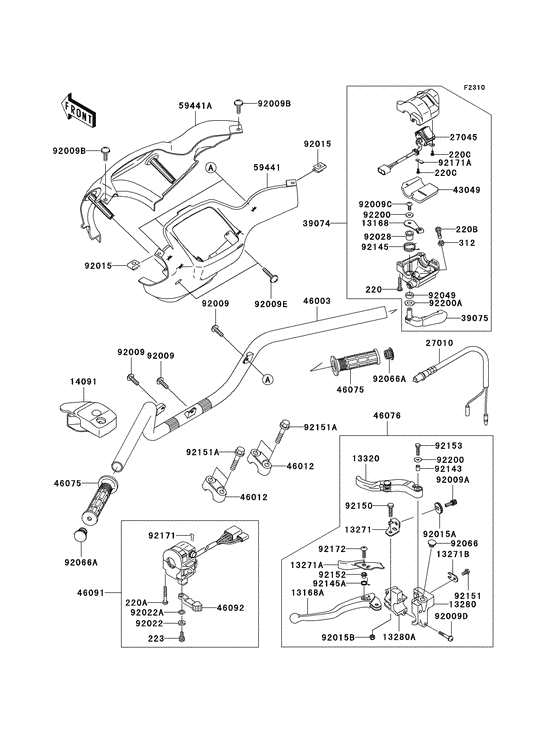

Handlebar Diagram Kawasaki KVF700 Prairie 700 4X4 Team Green Special Edition
- Model code
- KVF700D6F
- Engine Capacity
- 697
- Year
- 2006
- Sales region
- USA
- Power
- 47 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 700 4X4 Team Green Special Edition
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13168
|
13168
13168-1715 LEVER |
13168-1715 |
from US $5.60 |
||
|
13168A
|
13168A
13168-1736 LEVER,LHLever,lh; |
13168-1736 |
from US $24.42 |
||
|
13271
|
13271
13271-1259 PLATE,LOCKPlate,lock; |
13271-1259 |
from US $10.89 |
||
|
13271A
|
13271A
13271-1635 PLATE,LEVER LOCKPlate,lever lock; |
13271-1635 |
from US $8.09 |
||
| replacement | |||||
|
13271A
|
13271A
13272-3826 Plate,Lever LockPlate,lever lock; |
13272-3826 |
US $14.37 |
||
|
13271B
|
13271B
13271-1636 PLATE,WIRE OUTER STOPPlate,wire outer stopper; |
13271-1636 |
from US $2.49 |
||
|
13280
|
13280
13280-1226 HOLDER,DIFF LOCK LEVEHolder,diff lock lever; |
13280-1226 |
from US $17.42 |
||
|
13280A
|
13280A
13280-1227 HOLDER,LEVER,LHHolder,lever,lh; |
13280-1227 |
from US $17.42 |
||
|
13320
|
13320
13320-1018 LEVER-ASSY,DEFF LOCKLever-assy,deff lock; |
13320-1018 |
from US $38.42 |
||
| replacement | |||||
|
13320
|
13320
13320-0040 Lever-Assy,Diff LockLever-assy,deff lock; |
13320-0040 |
US $73.85 |
||
|
14091
|
14091
14091-1403 COVER,DIFF LOCK LEVERCover,diff lock lever; |
14091-1403 |
from US $10.89 |
||
|
27010
|
27010
27010-1294 Switch, engine stopSwitch,brake; |
27010-1294 |
from US $22.55 |
||
|
27045
|
27045
27045-1081 SWITCH-ASSY |
27045-1081 |
US $38.09 |
||
| replacement | |||||
|
27045
|
27045
27045-0010 SWITCH-ASSY |
27045-0010 |
from US $20.38 |
||
|
39074
|
39074
39074-1062 LEVER-ASSY-THROTTLE |
39074-1062 |
US $188.91 |
||
| replacements | |||||
|
39074
|
39074
39074-0002 LEVER-ASSY-THROTTLE |
39074-0002 |
from US $124.42 |
||
|
39074
|
39074
39074-0011 Lever-Assy-Throttle |
39074-0011 |
US $220.20 |
||
|
39075
|
39075
39075-1062 LEVER-THROTTLE |
39075-1062 |
from US $17.42 |
||
| replacement | |||||
|
39075
|
39075
39075-0032 Lever-Throttle |
39075-0032 |
US $31.96 |
||
|
43049
|
43049
43049-1088 PACKING |
43049-1088 |
from US $6.54 |
||
|
46003
|
46003
46003-1580 HANDLE |
46003-1580 |
US $84.46 |
||
| replacement | |||||
|
46003
|
46003
46003-0826 Handle |
46003-0826 |
US $84.46 |
||
|
46012
|
46012
46012-1168 HOLDER-HANDLE |
46012-1168 |
from US $10.66 |
||
|
46075
|
46075
46075-7501 GRIP,HANDLEGrip,handle; |
46075-7501 |
from US $20.01 |
||
|
46076
|
46076
46076-1238 LEVER-ASSY-GRIP,DEFFLever-assy-grip,deff lock; |
46076-1238 |
US $121.92 |
||
| replacement | |||||
|
46076
|
46076
46076-0180 LEVER-ASSY-GRIP,DEFFLever-assy-grip,deff lock; |
46076-0180 |
US $115.46 |
||
|
46091
|
46091
46091-1847 HOUSING-ASSY-CONTROL,Housing-assy-control,lh; |
46091-1847 |
from US $145.57 |
||
|
46092
|
46092
46092-1217 LEVER-GRIP,CHOKELever-grip,choke; |
46092-1217 |
from US $5.28 |
||
|
59441
|
59441
59441-1150-290
COVER-HANDLE,RR,L.GRE
Cover-handle,rr,l.green; |
59441-1150-290 |
— | ||
|
59441A
|
59441A
59441-1159-290 COVER-HANDLE,FR,L.GRECover-handle,fr,l.green; |
59441-1159-290 |
US $29.21 |
||
|
92009
|
92009
92009-1197 SCREWScrew,tapping,5x14; |
92009-1197 |
from US $2.53 |
||
|
92009A
|
92009A
92009-1435 SCREW CABLE ADJUSTScrew,cable adjust,8mm; |
92009-1435 |
US $14.17 |
||
| replacement | |||||
|
92009A
|
92009A
46055003 SCREW CABLE ADJUSTScrew,cable adjust,8mm; |
46055003 |
from US $11.09 |
||
|
92009B
|
92009B
92009-1652 SCREWScrew,5x12; |
92009-1652 |
from US $2.53 |
||
|
92009C
|
92009C
92009-1959 SCREW |
92009-1959 |
from US $1.09 |
||
|
92009D
|
92009D
92009-1961 SCREW,6X30Screw,6x30; |
92009-1961 |
from US $1.24 |
||
|
92009E
|
92009E
92009-1965 SCREW,TAPPING,5X30Screw,tapping,5x30; |
92009-1965 |
from US $1.24 |
||
|
92015
|
92015
92015-1573 NUT,5MMNut,5mm; |
92015-1573 |
from US $3.78 |
||
|
92015A
|
92015A
92015-1596 NUT-LOCKNut,cable adjust lock,8mm; |
92015-1596 |
from US $6.02 |
||
| replacement | |||||
|
92015A
|
92015A
46056005 NUT-LOCKNut,cable adjust lock,8mm; |
46056005 |
from US $6.02 |
||
|
92015B
|
92015B
92015-1829 NUT |
92015-1829 |
US $3.51 |
||
| replacement | |||||
|
92015B
|
92015B
92019-008 NUT |
92019-008 |
from US $2.53 |
||
|
92022
|
92022
92022-1837 WASHER,5MMWasher,5mm; |
92022-1837 |
from US $4.13 |
||
|
92022A
|
92022A
92022-1838 WASHER,WAVE,5MMWasher,wave,5mm; |
92022-1838 |
from US $4.13 |
||
|
92028
|
92028
92028-1986 BUSHING |
92028-1986 |
from US $2.17 |
||
|
92049
|
92049
92049-1578 SEAL-OIL |
92049-1578 |
from US $2.33 |
||
|
92066
|
92066
92066-1077 PLUG,9.5X8Plug,9.5x8,polyethylene; |
92066-1077 |
from US $3.01 |
||
|
92066A
|
92066A
92066-1550 PLUG |
92066-1550 |
from US $6.34 |
||
|
92143
|
92143
92143-1216 COLLAR |
92143-1216 |
from US $3.57 |
||
|
92145
|
92145
92145-1392 SPRING |
92145-1392 |
from US $1.56 |
||
|
92145A
|
92145A
92145-1429 SPRING |
92145-1429 |
from US $3.57 |
||
|
220
|
220
220C0525
SCREW-PAN-CROS
Screw-pan-cros,5x25; |
220C0525 |
— | ||
| replacement | |||||
|
220
|
220
220AB0525 SCREW-PAN-CROSScrew-pan-cros,5x25; |
220AB0525 |
from US $0.95 |
||
|
220A
|
220A
220C0535 SCREW-PAN-CROSS,5X35Screw-pan-cros,5x35; |
220C0535 |
from US $1.27 |
||
| replacement | |||||
|
220A
|
220A
220AB0535 SCREW-PAN-CROSS,5X35Screw-pan-cros,5x35; |
220AB0535 |
from US $0.95 |
||
|
220B
|
220B
220C0625
SCREW-PAN-CROS,6X25,B
Screw-pan-cros,6x25; |
220C0625 |
— | ||
| replacement | |||||
|
220B
|
220B
220AB0625 SCREW-PAN-CROS,6X25,BScrew-pan-cros,6x25; |
220AB0625 |
from US $0.94 |
||
|
220C
|
220C
220D0308 SCREW-PAN-CROSScrew-pan-cross,3x8; |
220D0308 |
from US $0.81 |
||
| replacement | |||||
|
220C
|
220C
220AA0308 SCREW-PAN-CROSScrew-pan-cross,3x8; |
220AA0308 |
from US $0.79 |
||
|
223
|
223
223C0512 SCREW-PAN-WS-CROSScrew-pan-ws-cros,5x12; |
223C0512 |
US $5.36 |
||
| replacement | |||||
|
223
|
223
223AB0512 SCREW-PAN-WS-CROSScrew-pan-ws-cros,5x12; |
223AB0512 |
from US $5.61 |
||
|
312
|
312
312C0600 NUT-HEX,6MM,BLACKNut-hex,6mm,black; |
312C0600 |
from US $1.27 |
||
| replacement | |||||
|
312
|
312
312AB0600 NUT-HEX,6MM,BLACKNut-hex,6mm,black; |
312AB0600 |
from US $0.94 |
||
|
92150
|
92150
92150-1420 BOLT |
92150-1420 |
US $14.92 |
||
| replacement | |||||
|
92150
|
92150
92153-1919 BOLT |
92153-1919 |
from US $8.55 |
||
|
92151
|
92151
92151-1975 BOLT,5X10Bolt,5x10; |
92151-1975 |
from US $1.09 |
||
|
92151A
|
92151A
92151-2130 BOLT,8X40Bolt,flanged,8x40; |
92151-2130 |
from US $1.11 |
||
|
92152
|
92152
92152-1176 COLLAR |
92152-1176 |
from US $2.33 |
||
|
92153
|
92153
92153-1129 BOLTBolt,5x20; |
92153-1129 |
from US $1.40 |
||
|
92171
|
92171
92171-1095 CLAMP,CLIPClamp,clip; |
92171-1095 |
from US $1.40 |
||
|
92171A
|
92171A
92171-1344 CLAMP |
92171-1344 |
from US $1.09 |
||
|
92172
|
92172
92172-0078 SCREWScrew,5x20; |
92172-0078 |
from US $1.24 |
||
|
92200
|
92200
92200-1558 WASHER |
92200-1558 |
from US $2.49 |
||
|
92200A
|
92200A
92200-1559 WASHER |
92200-1559 |
from US $2.49 |
||
