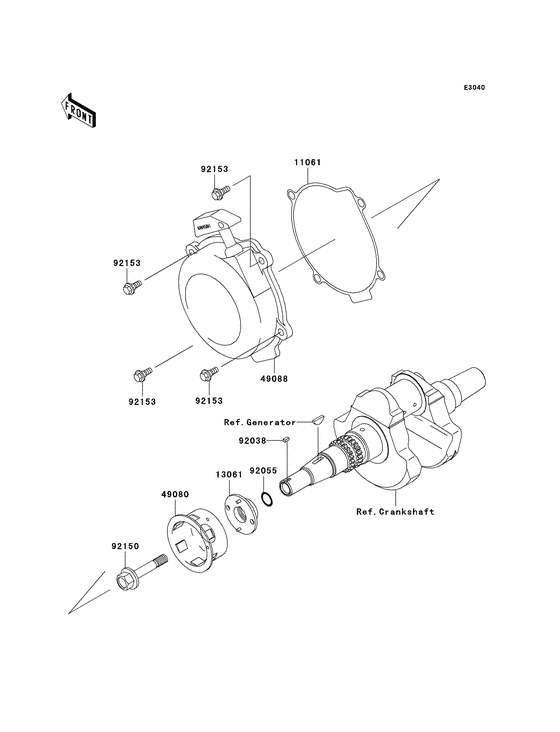

Recoil starter Diagram Kawasaki KVF700 Prairie 700 4X4 Team Green Special Edition
- Model code
- KVF700D6F
- Engine Capacity
- 697
- Year
- 2006
- Sales region
- USA
- Power
- 47 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 700 4X4 Team Green Special Edition
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11061
|
11061
11061-1153 GASKET,RECOIL STARTERGasket,recoil starter; |
11061-1153 |
from US $10.59 |
||
|
13061
|
13061
13061-1873 BOSS |
13061-1873 |
from US $44.64 |
||
|
49080
|
49080
49080-1061 PULLEY-STARTING |
49080-1061 |
US $58.31 |
||
|
49088
|
49088
49088-1058 STARTER-RECOIL |
49088-1058 |
from US $308.30 |
||
|
92038
|
92038
92038-1051 KEY,SUNKKey,sunk; |
92038-1051 |
from US $7.29 |
||
|
92055
|
92055
92055-1215 RING-0,19.8X2.2Ring-o,19.8x2.2; |
92055-1215 |
from US $2.69 |
||
|
92150
|
92150
92150-1987 BOLT,PULLEYBolt,12x65; |
92150-1987 |
from US $6.77 |
||
|
92153
|
92153
92153-7007 BOLT,RECOIL STARTERBolt,flanged,m6x5x11; |
92153-7007 |
from US $2.49 |
