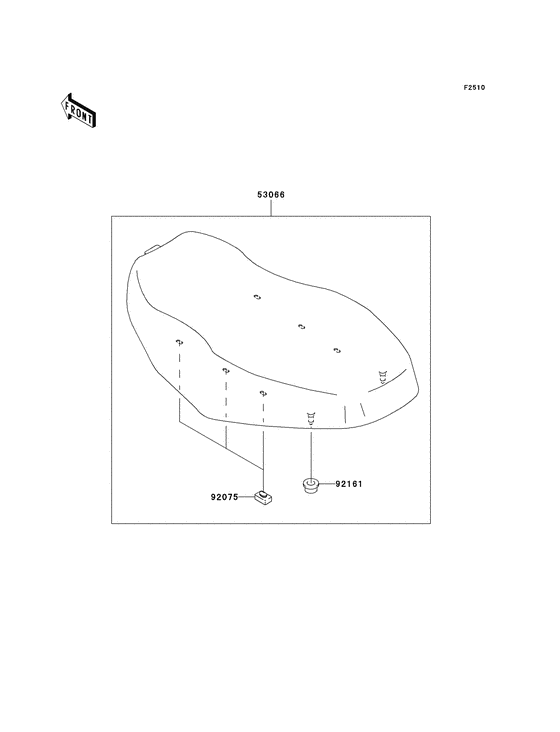

Seat Diagram Kawasaki KVF700 Prairie 700 4X4 Team Green Special Edition
- Model code
- KVF700D6F
- Engine Capacity
- 697
- Year
- 2006
- Sales region
- USA
- Power
- 47 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 700 4X4 Team Green Special Edition
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53066
|
53066
53066-0061-MA SEAT-ASSY,BLACKSeat-assy,black; |
53066-0061-MA |
US $394.58 |
||
| replacement | |||||
|
53066
|
53066
53066-0266-MA
SEAT-ASSY,BLACK
Seat-assy,black; |
53066-0266-MA |
— | ||
|
92075
|
92075
92075-099 DAMPER RUBBER |
92075-099 |
from US $3.33 |
||
|
92161
|
92161
92161-1128 DAMPER |
92161-1128 |
US $3.03 |
||
