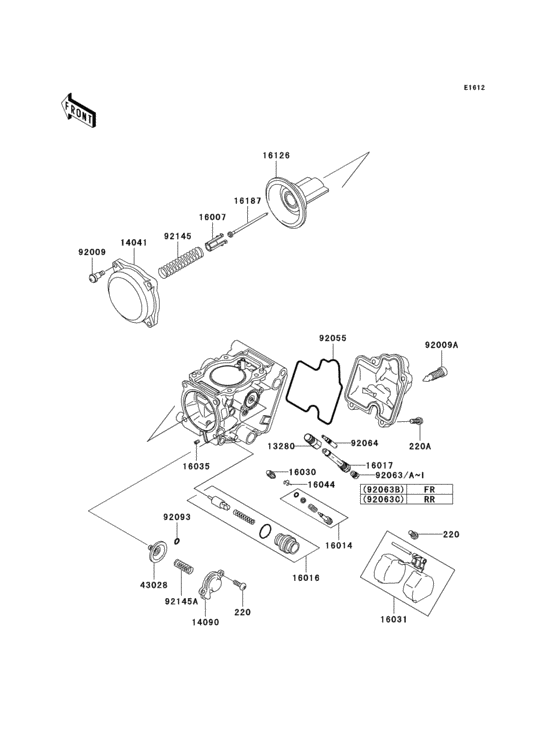

Carburetor parts Diagram Kawasaki KVF700 Prairie 700 4X4 Team Green Special Edition
- Model code
- KVF700D6F
- Engine Capacity
- 697
- Year
- 2006
- Sales region
- Canada
- Colour
- Lime Green (777)
- Power
- 47 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 700 4X4 Team Green Special Edition
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
220
|
220
220D0408
SCREW-PAN-CROS
|
220D0408 |
— | ||
| replacement | |||||
|
220
|
220
220AA0408 SCREW-PAN-CROS |
220AA0408 |
from US $0.79 |
||
|
220A
|
220A
220D0414 SCREW-PAN-CROS |
220D0414 |
from US $1.11 |
||
| replacement | |||||
|
220A
|
220A
220AA0414 SCREW-PAN-CROS |
220AA0414 |
from US $1.07 |
||
|
13280
|
13280
13280-1096 HOLDER,JET |
13280-1096 |
from US $20.94 |
||
|
14041
|
14041
14041-1090 CAP-CHAMBER,MIXING |
14041-1090 |
from US $47.87 |
||
|
14090
|
14090
14090-1984 COVER,AIR CUT VALVE |
14090-1984 |
from US $18.37 |
||
|
16007
|
16007
16007-1120 SEAT-SPRING |
16007-1120 |
from US $19.48 |
||
|
16014
|
16014
16014-1101 SCREW-PILOT AIR |
16014-1101 |
from US $18.53 |
||
|
16016
|
16016
16016-1117 PLUNGER |
16016-1117 |
from US $38.56 |
||
|
16017
|
16017
16017-1441 JET-NEEDLE |
16017-1441 |
from US $30.33 |
||
|
16030
|
16030
16030-1007 FLOAT VALVE |
16030-1007 |
from US $41.28 |
||
|
16031
|
16031
16031-1097 FLOAT |
16031-1097 |
from US $44.43 |
||
|
16035
|
16035
16035-1055 JET-AIR,LEAK |
16035-1055 |
from US $11.25 |
||
|
16044
|
16044
16044-007 CLIP,FLOAT VALVE |
16044-007 |
from US $6.18 |
||
|
16126
|
16126
16126-1226 VALVE,VACUUM |
16126-1226 |
from US $155.58 |
||
|
16187
|
16187
16187-0023 NEEDLE-JET |
16187-0023 |
from US $23.33 |
||
|
43028
|
43028
43028-1085 DIAPHRAGM,AIR CUT VAL |
43028-1085 |
from US $20.28 |
||
|
92009
|
92009
92009-1549 SCREW,4X4.4 |
92009-1549 |
from US $3.48 |
||
|
92009A
|
92009A
92009-1551 SCREW,DRAIN |
92009-1551 |
from US $6.34 |
||
|
92055
|
92055
92055-1589 RING-O,FLOAT |
92055-1589 |
from US $21.23 |
||
|
92063
|
92063
92063-1013 MAIN JET,#140 |
92063-1013 |
from US $8.71 |
||
|
92063A
|
92063A
92063-1014 MAIN JET,#135 |
92063-1014 |
from US $10.45 |
||
|
92063B
|
92063B
92063-1015 MAIN JET,#138 |
92063-1015 |
from US $8.71 |
||
|
92063C
|
92063C
92063-1016 MAIN JET,#142 |
92063-1016 |
from US $8.67 |
||
|
92063D
|
92063D
92063-1017 MAIN JET,#145 |
92063-1017 |
from US $8.71 |
||
|
92063E
|
92063E
92063-1069 MAIN JET,2ND,#125 |
92063-1069 |
from US $9.82 |
||
|
92063F
|
92063F
92063-1074 MAIN JET,2ND,#128 |
92063-1074 |
from US $8.71 |
||
|
92063G
|
92063G
92063-1075 MAIN JET,2ND,#130 |
92063-1075 |
from US $8.71 |
||
|
92063H
|
92063H
92063-1076 JET-MAIN,#132 |
92063-1076 |
from US $8.71 |
||
|
92063I
|
92063I
92063-1324 JET-MAIN,#148 |
92063-1324 |
from US $8.71 |
||
|
92064
|
92064
92064-0005 JET-PILOT,#40 |
92064-0005 |
from US $10.57 |
||
|
92093
|
92093
92093-1046 SEAL-"U"RING |
92093-1046 |
from US $4.80 |
||
|
92145
|
92145
92145-1227 SPRING |
92145-1227 |
from US $14 |
||
|
92145A
|
92145A
92145-1450 SPRING,AIR CUT VALVE |
92145-1450 |
from US $4.51 |
||
