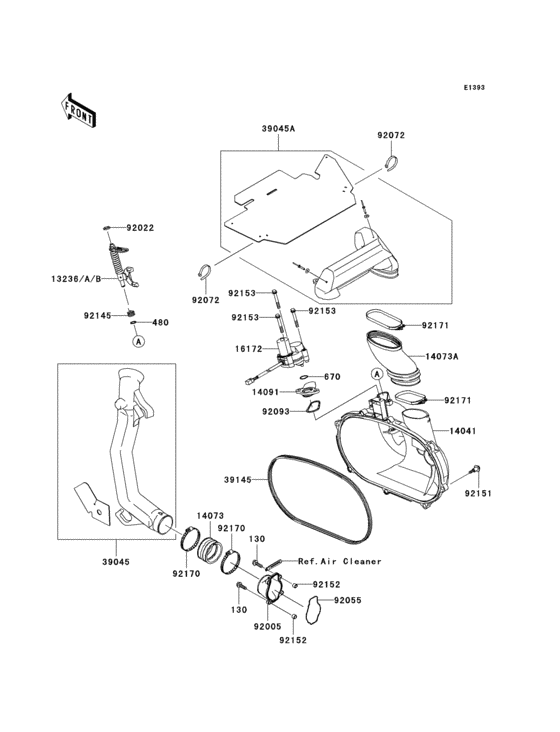

Converter cover Diagram Kawasaki KVF700 Prairie 700 4X4 Team Green Special Edition
- Model code
- KVF700D6F
- Engine Capacity
- 697
- Year
- 2006
- Sales region
- Canada
- Colour
- Lime Green (777)
- Power
- 47 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 700 4X4 Team Green Special Edition
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130Z0620 BOLT-FLANGED |
130Z0620 |
from US $1.13 |
||
| replacement | |||||
|
130
|
130
130CD0620 BOLT-FLANGED |
130CD0620 |
from US $1.11 |
||
|
480
|
480
480J1000 CIRCLIP,10M/M |
480J1000 |
from US $0.99 |
||
|
670
|
670
670D3022 O RING |
670D3022 |
from US $3.49 |
||
|
13236
|
13236
13236-0046 LEVER-COMP,YELLOW |
13236-0046 |
from US $102.96 |
||
|
13236A
|
13236A
13236-0047 LEVER-COMP,GREEN |
13236-0047 |
from US $102.96 |
||
|
13236B
|
13236B
13236-0048 LEVER-COMP,ENGINE BRA |
13236-0048 |
from US $102.96 |
||
|
14041
|
14041
14041-1158 COVER-COMP |
14041-1158 |
US $203.08 |
||
| replacement | |||||
|
14041
|
14041
14041-0559 COVER-COMP |
14041-0559 |
from US $143.86 |
||
|
14073
|
14073
14073-1775 DUCT,AIR FILTER JOINT |
14073-1775 |
US $5.68 |
||
|
14073A
|
14073A
14073-1792 DUCT,EXHAUST |
14073-1792 |
US $17.41 |
||
|
14091
|
14091
14091-1421 COVER |
14091-1421 |
US $11.63 |
||
| replacement | |||||
|
14091
|
14091
14092-0780 COVER |
14092-0780 |
US $13.58 |
||
|
16172
|
16172
16172-0002 New Genuine Part |
16172-0002 |
US $362.25 |
||
| replacement | |||||
|
16172
|
16172
16172-0018 ACTUATOR |
16172-0018 |
from US $295.20 |
||
|
39045
|
39045
39045-0002 DUCT-ASSY,SNORKEL,IN |
39045-0002 |
US $33.35 |
||
|
39045A
|
39045A
39045-1063 DUCT-ASSY,SNORKEL,EX |
39045-1063 |
US $56.63 |
||
|
39145
|
39145
39145-1135 TRIM-SEAL |
39145-1135 |
US $20.70 |
||
| replacement | |||||
|
39145
|
39145
39145-0702 TRIM-SEAL |
39145-0702 |
from US $14.79 |
||
|
92005
|
92005
92005-1387 FITTING |
92005-1387 |
US $9.89 |
||
| replacement | |||||
|
92005
|
92005
92005-0718 FITTING |
92005-0718 |
from US $6.54 |
||
|
92022
|
92022
92022-1829 WASHER,10.2X16X1 |
92022-1829 |
from US $2.69 |
||
|
92055
|
92055
92055-1630 RING-O |
92055-1630 |
from US $5.60 |
||
|
92072
|
92072
92072-1239 BAND,L=188 |
92072-1239 |
from US $1.90 |
||
|
92093
|
92093
92093-1548 SEAL |
92093-1548 |
from US $5.44 |
||
|
92145
|
92145
92145-1567 SPRING |
92145-1567 |
from US $1.24 |
||
|
92151
|
92151
92151-1686 BOLT,AIR FILTER,RH |
92151-1686 |
from US $9.76 |
||
|
92152
|
92152
92152-1332 COLLAR |
92152-1332 |
from US $2.17 |
||
|
92153
|
92153
92153-0678 BOLT,6X47 |
92153-0678 |
from US $1.24 |
||
|
92170
|
92170
92170-1764 CLAMP |
92170-1764 |
from US $12.05 |
||
|
92171
|
92171
92171-1336 CLAMP |
92171-1336 |
from US $7.16 |
||
