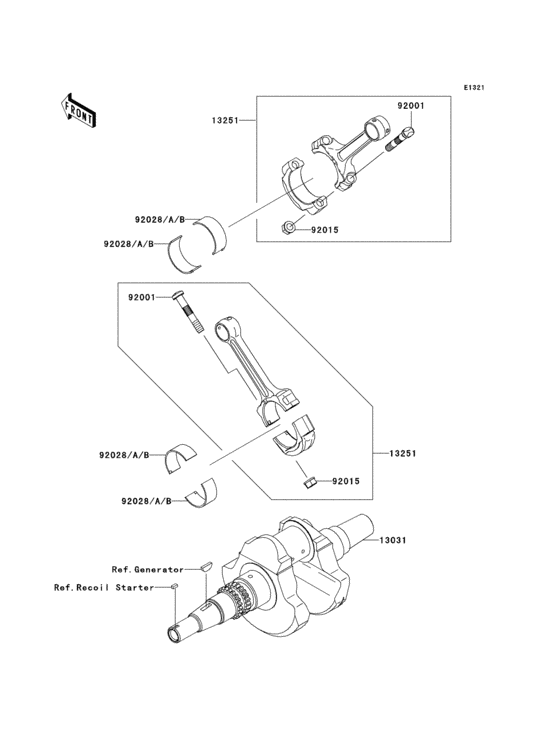

Crankshaft Diagram Kawasaki KVF700 Prairie 700 4X4 Team Green Special Edition
- Model code
- KVF700D6F
- Engine Capacity
- 697
- Year
- 2006
- Sales region
- Canada
- Colour
- Lime Green (777)
- Power
- 47 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 700 4X4 Team Green Special Edition
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13031
|
13031
13031-0030
Crankshaft-comp
|
13031-0030 |
— | ||
| replacement | |||||
|
13031
|
13031
13031-0961 Crankshaft-comp |
13031-0961 |
from US $769.86 |
||
|
13251
|
13251
13251-1143 ROD-ASSY-CONNECTING |
13251-1143 |
from US $201.56 |
||
|
92001
|
92001
92001-1980 BOLT,CONNECTING ROD |
92001-1980 |
from US $6.38 |
||
|
92015
|
92015
92015-1311 NUT,FLANGED,8MM |
92015-1311 |
from US $4.80 |
||
|
92028
|
92028
92028-1961 BUSHING,CONNECTING ROD,GREEN |
92028-1961 |
from US $11.31 |
||
|
92028A
|
92028A
92028-1962 BUSHING,CONNECTING ROD,YELLOW |
92028-1962 |
from US $11.31 |
||
|
92028B
|
92028B
92028-1963 BUSHING,CONNECTING ROD,BROWN |
92028-1963 |
from US $11.31 |
||
