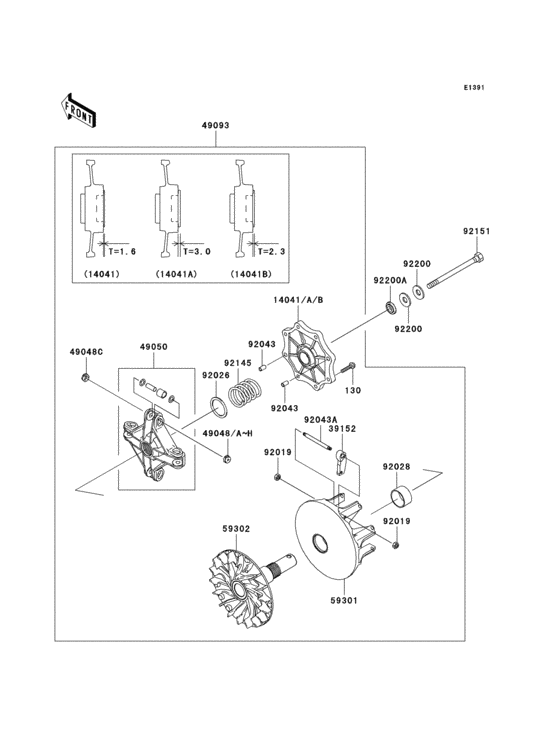

Drive converter Diagram Kawasaki KVF700 Prairie 700 4X4 Team Green Special Edition
- Model code
- KVF700D6F
- Engine Capacity
- 697
- Year
- 2006
- Sales region
- Canada
- Colour
- Lime Green (777)
- Power
- 47 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 700 4X4 Team Green Special Edition
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130T0630 BOLT-FLANGED,6X30 |
130T0630 |
US $1.67 |
||
| replacement | |||||
|
130
|
130
130CA0630 BOLT-FLANGED,6X30 |
130CA0630 |
from US $1.11 |
||
|
14041
|
14041
14041-1159 COVER-COMP,RED |
14041-1159 |
US $113.47 |
||
| replacement | |||||
|
14041
|
14041
14041-0035 COVER-COMP,RED |
14041-0035 |
from US $78.85 |
||
|
14041A
|
14041A
14041-1160 COVER-COMP,BLUE |
14041-1160 |
US $113.47 |
||
| replacements | |||||
|
14041A
|
14041A
14041-0036 COVER-COMP,BLUE |
14041-0036 |
from US $78.85 |
||
|
14041A
|
14041A
14041-0639 Cover-Comp,Blue |
14041-0639 |
US $142.46 |
||
|
14041B
|
14041B
14041-1161 COVER-COMP,STD |
14041-1161 |
US $113.47 |
||
| replacements | |||||
|
14041B
|
14041B
14041-0037 COVER-COMP,STD |
14041-0037 |
from US $78.85 |
||
|
14041B
|
14041B
14041-0640 Cover-Comp,Std |
14041-0640 |
US $142.46 |
||
|
39152
|
39152
39152-1081 WEIGHT-RAMP |
39152-1081 |
from US $42.62 |
||
|
49048
|
49048
49048-1087 SHOE,T=7.2 |
49048-1087 |
from US $9.17 |
||
|
49048A
|
49048A
49048-1088 SHOE,T=7.3 |
49048-1088 |
from US $9.17 |
||
|
49048B
|
49048B
49048-1089 SHOE,T=7.4 |
49048-1089 |
from US $15.08 |
||
|
49048C
|
49048C
49048-1090 SHOE,T=7.5 |
49048-1090 |
from US $9.17 |
||
|
49048D
|
49048D
49048-1091 SHOE,T=7.6 |
49048-1091 |
from US $9.17 |
||
|
49048E
|
49048E
49048-1092 SHOE,T=7.7 |
49048-1092 |
from US $9.17 |
||
|
49048F
|
49048F
49048-1093 SHOE,T=7.8 |
49048-1093 |
from US $9.17 |
||
|
49048G
|
49048G
49048-1094 SHOE,T=7.9 |
49048-1094 |
from US $9.17 |
||
|
49048H
|
49048H
49048-1095 SHOE,T=8.0 |
49048-1095 |
from US $9.17 |
||
|
49050
|
49050
49050-1081
SPIDER
|
49050-1081 |
— | ||
| replacement | |||||
|
49050
|
49050
49050-0010 SPIDER |
49050-0010 |
from US $94.09 |
||
|
49093
|
49093
49093-0011 Superceded |
49093-0011 |
US $1,014.97 |
||
| replacement | |||||
|
49093
|
49093
49093-0065 CONVERTER-ASSY-DRIVE |
49093-0065 |
from US $824.26 |
||
|
59301
|
59301
59301-1070 SHEAVE-MOVABLE |
59301-1070 |
from US $174.18 |
||
|
59302
|
59302
59302-0003 SHEAVE-COMP,FIXED |
59302-0003 |
US $342.86 |
||
| replacement | |||||
|
59302
|
59302
59302-0078 SHEAVE-COMP,FIXED |
59302-0078 |
from US $225.50 |
||
|
92019
|
92019
92019-008 NUT |
92019-008 |
from US $2.53 |
||
|
92026
|
92026
92026-1603 SPACER,39X49.5X1.0 |
92026-1603 |
from US $4.20 |
||
|
92028
|
92028
92028-1975 BUSHING |
92028-1975 |
US $12.65 |
||
| replacement | |||||
|
92028
|
92028
92139-1244 Bushing |
92139-1244 |
from US $7.44 |
||
|
92043
|
92043
92043-1263 PIN,6.2X8X14 |
92043-1263 |
from US $0.75 |
||
|
92043A
|
92043A
92043-1688 PIN |
92043-1688 |
from US $7.34 |
||
|
92145
|
92145
92145-0021 SPRING |
92145-0021 |
from US $18.72 |
||
|
92151
|
92151
92151-1393 BOLT |
92151-1393 |
from US $13.06 |
||
|
92200
|
92200
92200-1504 WASHER,SPRING |
92200-1504 |
from US $5.44 |
||
|
92200A
|
92200A
92200-1634 WASHER |
92200-1634 |
from US $4.98 |
||
