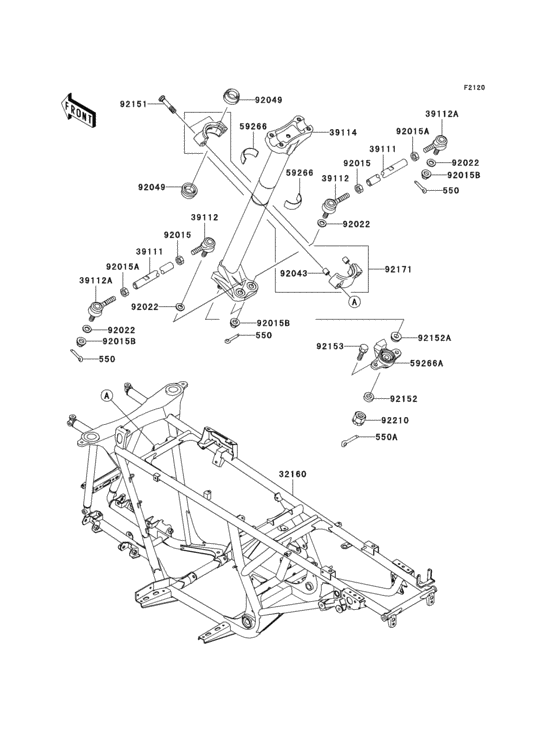

Frame Diagram Kawasaki KVF700 Prairie 700 4X4 Team Green Special Edition
- Model code
- KVF700D6F
- Engine Capacity
- 697
- Year
- 2006
- Sales region
- Canada
- Colour
- Lime Green (777)
- Power
- 47 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 700 4X4 Team Green Special Edition
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
550
|
550
550D2015
PIN-COTTER,2.0X15
|
550D2015 |
— | ||
| replacement | |||||
|
550
|
550
550AA2015 PIN-COTTER,2.0X15 |
550AA2015 |
from US $0.63 |
||
|
550A
|
550A
550D3025 PIN-COTTER,3.0X25 |
550D3025 |
from US $0.27 |
||
| replacement | |||||
|
550A
|
550A
550AA3025 PIN-COTTER,3.0X25 |
550AA3025 |
from US $0.95 |
||
|
32160
|
32160
32160-0002 FRAME-COMP |
32160-0002 |
US $1,124.30 |
||
|
39111
|
39111
39111-1090 ROD-TIE |
39111-1090 |
from US $21 |
||
|
39114
|
39114
39114-1090 SHAFT-COMP-STRG |
39114-1090 |
US $294.97 |
||
|
59266
|
59266
59266-1117 JOINT-BALL |
59266-1117 |
from US $6.06 |
||
|
59266A
|
59266A
59266-1125 JOINT-BALL |
59266-1125 |
from US $134.32 |
||
|
92015
|
92015
92015-1460 NUT,LOCK,10MM |
92015-1460 |
from US $3.57 |
||
|
92015A
|
92015A
92015-1494 NUT,LOCK,10MM |
92015-1494 |
from US $3.48 |
||
|
92015B
|
92015B
92015-1717 NUT,LOCK,FLANGED,10MM |
92015-1717 |
from US $6.34 |
||
|
92022
|
92022
92022-3742 WASHER |
92022-3742 |
from US $3.01 |
||
|
92043
|
92043
92043-1264 PIN,DOWEL,8.2X10X14 |
92043-1264 |
from US $1 |
||
|
92049
|
92049
92049-1580 SEAL-OIL,SR7 39.6X49X |
92049-1580 |
from US $6.38 |
||
|
92151
|
92151
92151-1711 BOLT,8X53 |
92151-1711 |
from US $4.51 |
||
|
92152
|
92152
92152-1351 COLLAR,12X21.3X7 |
92152-1351 |
from US $6.84 |
||
|
92152A
|
92152A
92152-1358 COLLAR |
92152-1358 |
from US $6.06 |
||
|
92153
|
92153
92153-1065 BOLT |
92153-1065 |
from US $1.40 |
||
|
92171
|
92171
92171-1449 CLAMP,STEERING SHAFT |
92171-1449 |
from US $32.34 |
||
|
92210
|
92210
92210-7501 NUT,12MM |
92210-7501 |
from US $1.90 |
||
