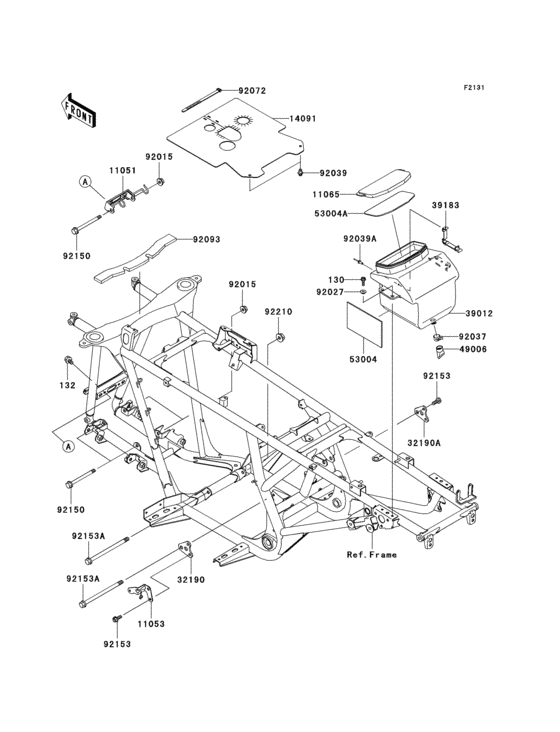

Frame fittings Diagram Kawasaki KVF700 Prairie 700 4X4 Team Green Special Edition
- Model code
- KVF700D6F
- Engine Capacity
- 697
- Year
- 2006
- Sales region
- Canada
- Colour
- Lime Green (777)
- Power
- 47 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 700 4X4 Team Green Special Edition
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130G0620
BOLT-FLANGED,6X20
|
130G0620 |
— | ||
| replacements | |||||
|
130
|
130
130CA0620 BOLT-FLANGED,6X20 |
130CA0620 |
from US $1.11 |
||
|
130
|
130
130BA0620 BOLT-FLANGED,6X20 |
130BA0620 |
from US $1.11 |
||
|
132
|
132
132J0814 BOLT-FLANGED-SMALL |
132J0814 |
US $1.84 |
||
| replacement | |||||
|
132
|
132
132BB0814 BOLT-FLANGED-SMALL |
132BB0814 |
from US $1.27 |
||
|
11051
|
11051
11051-1929 BRACKET,FRONT DIFF |
11051-1929 |
US $33.37 |
||
|
11053
|
11053
11053-0481 BRACKET,RESERVOIR TAN |
11053-0481 |
from US $8.09 |
||
|
11065
|
11065
11065-1154 CAP,STORAGE CASE |
11065-1154 |
US $4.97 |
||
|
14091
|
14091
14091-1347 COVER,FR,UPP |
14091-1347 |
US $17.84 |
||
|
32190
|
32190
32190-0045 BRACKET-ENGINE,RR,UPP |
32190-0045 |
from US $3.11 |
||
|
32190A
|
32190A
32190-0046 BRACKET-ENGINE,RR,UPP |
32190-0046 |
from US $5.44 |
||
|
39012
|
39012
39012-1064 CASE-STORAGE |
39012-1064 |
US $52.07 |
||
|
39183
|
39183
39183-1065 BAND-ASSY,TOOL BAG |
39183-1065 |
US $9.83 |
||
|
49006
|
49006
49006-1292 BOOT |
49006-1292 |
from US $5.13 |
||
|
53004
|
53004
53004-1139 MAT,STORAGE CASE |
53004-1139 |
from US $11.35 |
||
|
53004A
|
53004A
53004-1147 MAT,STORAGE CASE CAP |
53004-1147 |
US $9.59 |
||
|
92015
|
92015
92015-1717 NUT,LOCK,FLANGED,10MM |
92015-1717 |
from US $6.34 |
||
|
92027
|
92027
92027-1936 COLLAR,FRONT FENDER |
92027-1936 |
from US $3.64 |
||
|
92037
|
92037
92037-1460 CLAMP |
92037-1460 |
from US $6.68 |
||
| replacement | |||||
|
92037
|
92037
92171-1571 CLAMP |
92171-1571 |
from US $5.28 |
||
|
92039
|
92039
92039-1229
RIVET
|
92039-1229 |
— | ||
| replacement | |||||
|
92039
|
92039
92039-0776 RIVET |
92039-0776 |
from US $1.40 |
||
|
92039A
|
92039A
92039-3719 RIVET |
92039-3719 |
from US $4.44 |
||
|
92072
|
92072
92072-030 BAND,SHORT |
92072-030 |
from US $3.01 |
||
|
92093
|
92093
92093-1555 SEAL |
92093-1555 |
from US $6.06 |
||
|
92150
|
92150
92150-1642 BOLT,FLANGED,10X120 |
92150-1642 |
from US $10.87 |
||
|
92153
|
92153
92153-0948 BOLT,FLANGED,8X20 |
92153-0948 |
from US $1.24 |
||
|
92153A
|
92153A
92153-1272 BOLT,FLANGED,12X190 |
92153-1272 |
from US $9.17 |
||
|
92210
|
92210
92210-1150 NUT |
92210-1150 |
from US $3.33 |
||
