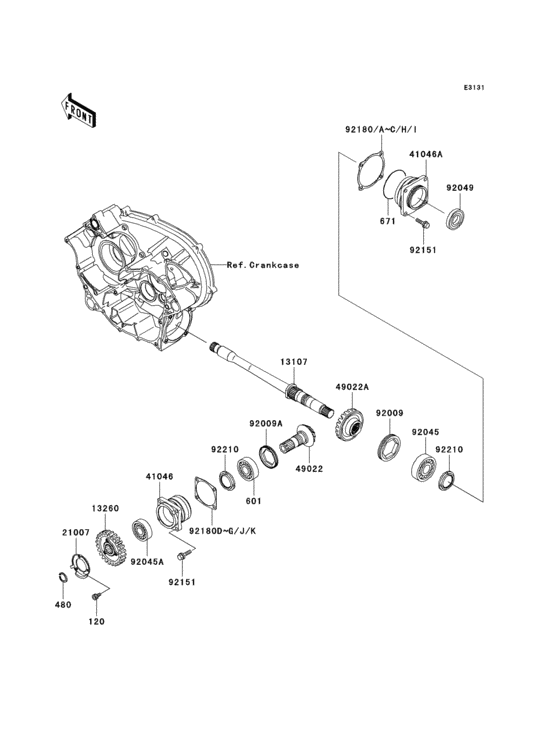

Front bevel gear Diagram Kawasaki KVF700 Prairie 700 4X4 Team Green Special Edition
- Model code
- KVF700D6F
- Engine Capacity
- 697
- Year
- 2006
- Sales region
- Canada
- Colour
- Lime Green (777)
- Power
- 47 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 700 4X4 Team Green Special Edition
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120P0612 BOLT-SOCKET,6X12 |
120P0612 |
from US $1.43 |
||
| replacement | |||||
|
120
|
120
120CA0612 BOLT-SOCKET,6X12 |
120CA0612 |
from US $0.79 |
||
|
480
|
480
480J2800 CIRCLIP 28MM |
480J2800 |
from US $1.43 |
||
|
601
|
601
601B6206 BALL BEARING,#6206 |
601B6206 |
from US $22.61 |
||
|
671
|
671
671D2585 O RING |
671D2585 |
from US $4.51 |
||
|
13107
|
13107
13107-0027 SHAFT |
13107-0027 |
from US $233.28 |
||
|
13260
|
13260
13260-1922 Gear,output 29t |
13260-1922 |
US $87.39 |
||
| replacement | |||||
|
13260
|
13260
13262-0960 GEAR,OUTPUT,29T |
13262-0960 |
from US $116.02 |
||
|
21007
|
21007
21007-1416 ROTOR, REVERSE SENSOR |
21007-1416 |
from US $5.60 |
||
|
41046
|
41046
41046-1101 HOUSING-BEARING |
41046-1101 |
from US $95.80 |
||
|
41046A
|
41046A
41046-1102 HOUSING-BEARING |
41046-1102 |
US $175.54 |
||
| replacement | |||||
|
41046A
|
41046A
41046-0025 HOUSING-BEARING |
41046-0025 |
from US $115.40 |
||
|
49022
|
49022
49022-0010 GEAR-BEVEL,DRIVE,12T |
49022-0010 |
US $220.19 |
||
| replacement | |||||
|
49022
|
49022
49022-1192 GEAR-BEVEL,DRIVE,12T |
49022-1192 |
from US $145.41 |
||
|
49022A
|
49022A
49022-0011 GEAR-BEVEL,DRIVEN,20T |
49022-0011 |
from US $145.41 |
||
|
92009
|
92009
92009-1667 SCREW,SET,75X10 |
92009-1667 |
US $78.84 |
||
| replacement | |||||
|
92009
|
92009
92172-0341 SCREW,SET,75X10 |
92172-0341 |
from US $50.86 |
||
|
92009A
|
92009A
92009-1914 SCREW,64MM |
92009-1914 |
from US $16.49 |
||
|
92045
|
92045
92045-1190 BEARING-BALL,6306SH2 |
92045-1190 |
from US $30.82 |
||
|
92045A
|
92045A
92045-1207 BEARING-BALL,62/28 |
92045-1207 |
from US $19.30 |
||
|
92049
|
92049
92049-1529 SEAL-OIL |
92049-1529 |
US $14.92 |
||
| replacement | |||||
|
92049
|
92049
92049-0095 SEAL-OIL |
92049-0095 |
from US $9.17 |
||
|
92151
|
92151
92151-1688 BOLT |
92151-1688 |
from US $1.24 |
||
|
92180
|
92180
92180-1307 SHIM,DRIVEN,T=0.15 |
92180-1307 |
from US $3.57 |
||
|
92180A
|
92180A
92180-1308 SHIM,DRIVEN,T=0.20 |
92180-1308 |
from US $3.57 |
||
|
92180B
|
92180B
92180-1309 SHIM,DRIVEN,T=0.50 |
92180-1309 |
from US $3.57 |
||
|
92180C
|
92180C
92180-1310 SHIM,DRIVEN,T=0.80 |
92180-1310 |
from US $4.20 |
||
|
92180D
|
92180D
92180-1311 SHIM,DRIVE,T=0.15 |
92180-1311 |
from US $3.11 |
||
|
92180E
|
92180E
92180-1312 SHIM,DRIVE,T=0.20 |
92180-1312 |
from US $3.11 |
||
|
92180F
|
92180F
92180-1313 SHIM,DRIVE,T=0.50 |
92180-1313 |
from US $3.11 |
||
|
92180G
|
92180G
92180-1314 SHIM,DRIVE,T=0.80 |
92180-1314 |
from US $3.11 |
||
|
92180H
|
92180H
92180-1349 SHIM,DRIVEN,T=1.00 |
92180-1349 |
from US $4.67 |
||
|
92180I
|
92180I
92180-1350 SHIM,DRIVEN,T=1.20 |
92180-1350 |
from US $4.67 |
||
|
92180J
|
92180J
92180-1351 SHIM,DRIVE,T=0.10 |
92180-1351 |
from US $4.67 |
||
|
92180K
|
92180K
92180-1352 SHIM,DRIVE,T=0.12 |
92180-1352 |
from US $4.67 |
||
|
92210
|
92210
92210-1294 NUT,30MM |
92210-1294 |
from US $22.09 |
||
