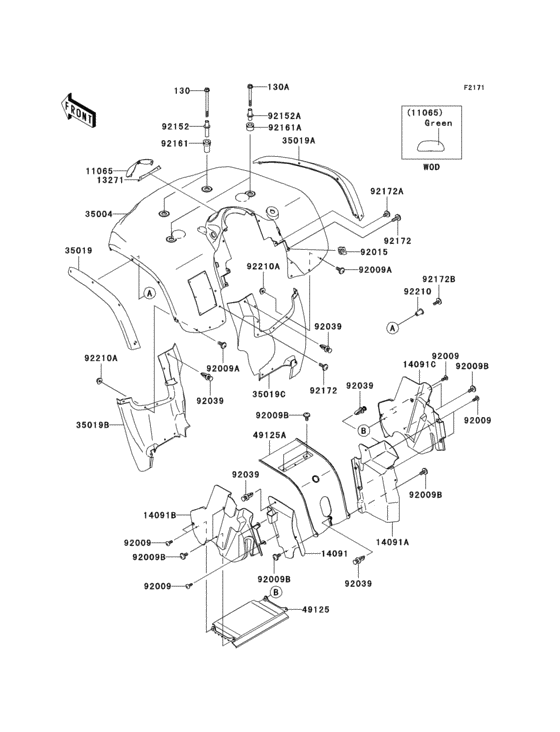

Front fender(s) Diagram Kawasaki KVF700 Prairie 700 4X4 Team Green Special Edition
- Model code
- KVF700D6F
- Engine Capacity
- 697
- Year
- 2006
- Sales region
- Canada
- Colour
- Lime Green (777)
- Power
- 47 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 700 4X4 Team Green Special Edition
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130S08105 BOLT-FLANGED |
130S08105 |
US $3.44 |
||
| replacement | |||||
|
130
|
130
130CB08105 BOLT-FLANGED |
130CB08105 |
from US $2.65 |
||
|
130A
|
130A
130S0875 BOLT-FLANGED |
130S0875 |
US $2.50 |
||
| replacement | |||||
|
130A
|
130A
130CB0875 BOLT-FLANGED |
130CB0875 |
from US $1.71 |
||
|
11065
|
11065
11065-1204-290 CAP,FR FENDER,L.GREEN |
11065-1204-290 |
US $9.66 |
||
|
13271
|
13271
13271-1640 PLATE,FR FENDER CAP |
13271-1640 |
from US $3.57 |
||
|
14091
|
14091
14091-1282 COVER,SIDE,RR,LH |
14091-1282 |
US $16.03 |
||
|
14091A
|
14091A
14091-1283 COVER,SIDE,RR,RH |
14091-1283 |
US $16.03 |
||
|
14091B
|
14091B
14091-1428
COVER,SIDE,FR,LH
|
14091-1428 |
— | ||
|
14091C
|
14091C
14091-1429
COVER,SIDE,FR,RH
|
14091-1429 |
— | ||
|
35004
|
35004
35004-1452-290
FENDER-FRONT,L.GREEN
|
35004-1452-290 |
— | ||
|
35019
|
35019
35019-1365-6Z FLAP,FR,SIDE,LH,F.BLA |
35019-1365-6Z |
US $26.28 |
||
|
35019A
|
35019A
35019-1366-6Z FLAP,FR,SIDE,RH,F.BLA |
35019-1366-6Z |
US $26.28 |
||
|
35019B
|
35019B
35019-1391-6Z FLAP,FR,RR,LH,F.BLACK |
35019-1391-6Z |
US $47.74 |
||
|
35019C
|
35019C
35019-1392-6Z FLAP,FR,RR,RH,F.BLACK |
35019-1392-6Z |
US $47.74 |
||
|
49125
|
49125
49125-0006 SHROUD,FR,LWR |
49125-0006 |
US $14.78 |
||
|
49125A
|
49125A
49125-1081 SHROUD,FR,UPP |
49125-1081 |
US $26.13 |
||
|
92009
|
92009
92009-1197 SCREW |
92009-1197 |
from US $2.53 |
||
|
92009A
|
92009A
92009-1621
SCREW
|
92009-1621 |
— | ||
| replacement | |||||
|
92009A
|
92009A
92009-1694 SCREW |
92009-1694 |
from US $5.13 |
||
|
92009B
|
92009B
92009-1662 SCREW |
92009-1662 |
from US $2.53 |
||
|
92015
|
92015
92015-1678 NUT |
92015-1678 |
from US $3.17 |
||
|
92039
|
92039
92039-1229
RIVET
|
92039-1229 |
— | ||
| replacement | |||||
|
92039
|
92039
92039-0776 RIVET |
92039-0776 |
from US $1.40 |
||
|
92152
|
92152
92152-0025 COLLAR,L=90 |
92152-0025 |
from US $8.24 |
||
|
92152A
|
92152A
92152-0026 COLLAR,L=60.7 |
92152-0026 |
from US $6.38 |
||
|
92161
|
92161
92161-0035 DAMPER,L=58.5 |
92161-0035 |
US $8.48 |
||
|
92161A
|
92161A
92161-1166 DAMPER,L=25.5 |
92161-1166 |
US $7.31 |
||
|
92172
|
92172
92172-0002 SCREW,6X18 |
92172-0002 |
from US $1.27 |
||
|
92172A
|
92172A
92172-0005 SCREW, 6X10 |
92172-0005 |
US $2.99 |
||
|
92172B
|
92172B
92172-1063 SCREW,5X18 |
92172-1063 |
from US $1.40 |
||
|
92210
|
92210
92210-0012 NUT,POP,5MM |
92210-0012 |
from US $1.24 |
||
|
92210A
|
92210A
92210-1368 NUT,6MM |
92210-1368 |
from US $1.24 |
||
