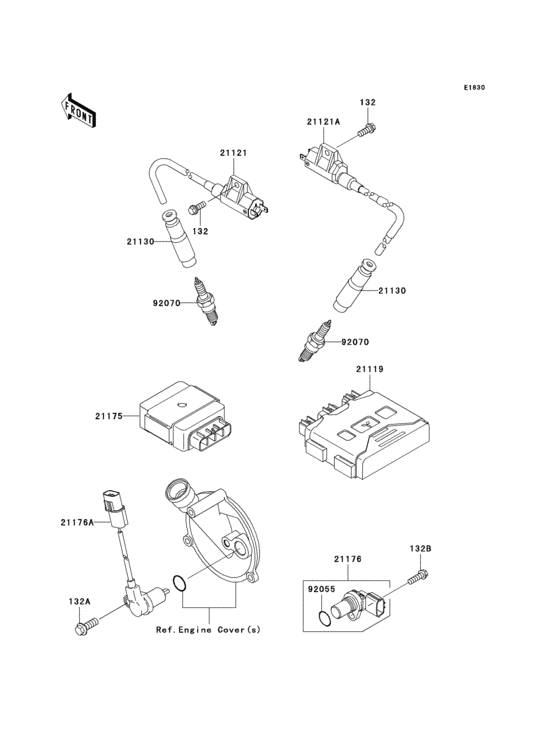

Ignition System Diagram Kawasaki KVF700 Prairie 700 4X4 Team Green Special Edition
- Model code
- KVF700D6F
- Engine Capacity
- 697
- Year
- 2006
- Sales region
- Canada
- Colour
- Lime Green (777)
- Power
- 47 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 700 4X4 Team Green Special Edition
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132H0616 BOLT-FLANGED-SMALL,6X |
132H0616 |
from US $1.43 |
||
| replacement | |||||
|
132
|
132
132BA0616 BOLT-FLANGED-SMALL,6X |
132BA0616 |
from US $0.79 |
||
|
132A
|
132A
132H0822 BOLT-FLANGED-SMALL |
132H0822 |
US $1.84 |
||
| replacement | |||||
|
132A
|
132A
132BA0822 BOLT-FLANGED-SMALL |
132BA0822 |
from US $1.27 |
||
|
132B
|
132B
132Y0620 BOLT-FLANGED-SMALL |
132Y0620 |
US $1.43 |
||
| replacement | |||||
|
132B
|
132B
132BD0620 BOLT-FLANGED-SMALL |
132BD0620 |
from US $1.11 |
||
|
21119
|
21119
21119-0004
IGNITER
|
21119-0004 |
— | ||
| replacement | |||||
|
21119
|
21119
21119-0076 IGNITER |
21119-0076 |
from US $514.77 |
||
|
21121
|
21121
21121-1292 COIL-IGNITION,FR |
21121-1292 |
from US $48.37 |
||
|
21121A
|
21121A
21121-1306 COIL-IGNITION,RR |
21121-1306 |
from US $47.09 |
||
|
21130
|
21130
21130-1071 Cap-spark plug |
21130-1071 |
from US $24.09 |
||
|
21175
|
21175
21175-0086
New Genuine Part
|
21175-0086 |
— | ||
| replacement | |||||
|
21175
|
21175
21175-0935 CONTROL UNIT-ELECTRON |
21175-0935 |
from US $438.57 |
||
|
21176
|
21176
21176-1104 SENSOR,SPEED |
21176-1104 |
from US $73.30 |
||
|
21176A
|
21176A
21176-1109 SENSOR,REVERSE |
21176-1109 |
from US $73.09 |
||
|
92055
|
92055
92055-1718 RING-O |
92055-1718 |
from US $1.09 |
||
|
92070
|
92070
92070-1209 SPARK PLUG, CR7E(NGK) |
92070-1209 |
from US $9 |
||
