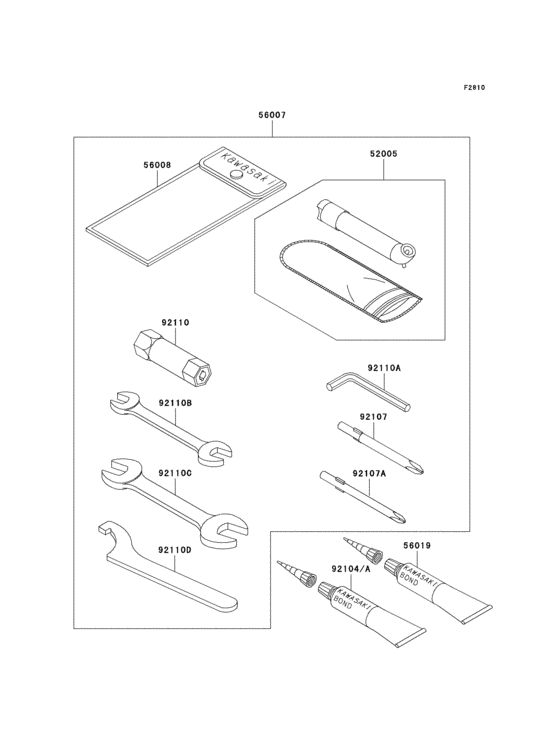

Owners tools Diagram Kawasaki KVF700 Prairie 700 4X4 Team Green Special Edition
- Model code
- KVF700D6F
- Engine Capacity
- 697
- Year
- 2006
- Sales region
- Canada
- Colour
- Lime Green (777)
- Power
- 47 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 700 4X4 Team Green Special Edition
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52005
|
52005
52005-1082 GAUGE,AIR |
52005-1082 |
from US $44.19 |
||
|
56007
|
56007
56007-1494 TOOL-KIT |
56007-1494 |
from US $111.66 |
||
|
56008
|
56008
56008-1007
BAG,TOOL
|
56008-1007 |
— | ||
| replacement | |||||
|
56008
|
56008
56008-006
BAG,TOOL
|
56008-006 |
— | ||
|
56019
|
56019
56019120 Three bond tb1211,ht/rs,white |
56019120 |
from US $34.11 |
||
| replacement | |||||
|
56019
|
56019
56019-120-EU
Sealant,tb1211 'bond#10'
|
56019-120-EU |
— | ||
|
92104
|
92104
92104-1063 GASKET-LIQUID,SILVER |
92104-1063 |
from US $60.59 |
||
| replacement | |||||
|
92104
|
92104
92104-1063-EU
Gasket-liquid,tb1216
|
92104-1063-EU |
— | ||
|
92104A
|
92104A
92104-1065 GASKET-LIQUID |
92104-1065 |
US $50.42 |
||
|
92107
|
92107
92107005 TOOL-DRIVER,#3PHILLIP |
92107005 |
US $10.91 |
||
| replacement | |||||
|
92107
|
92107
92107-1002 TOOL-DRIVER,#3PHILLIP |
92107-1002 |
from US $9.04 |
||
|
92107A
|
92107A
92107-1053 TOOL-DRIVER |
92107-1053 |
US $8.41 |
||
| replacement | |||||
|
92107A
|
92107A
92107-1052 TOOL-DRIVER |
92107-1052 |
from US $7.62 |
||
|
92110
|
92110
92110-1116 TOOL-WRENCH |
92110-1116 |
from US $10.61 |
||
|
92110A
|
92110A
92110-1140 TOOL-WRENCH,ALLEN,3MM |
92110-1140 |
from US $2.53 |
||
|
92110B
|
92110B
92110-1152 TOOL-WRENCH,OPEN END, |
92110-1152 |
from US $12.99 |
||
|
92110C
|
92110C
92110-1153 TOOL-WRENCH,OPEN END, |
92110-1153 |
from US $11.40 |
||
|
92110D
|
92110D
92110-1173 TOOL-WRENCH,HOOK |
92110-1173 |
from US $7.13 |
||
