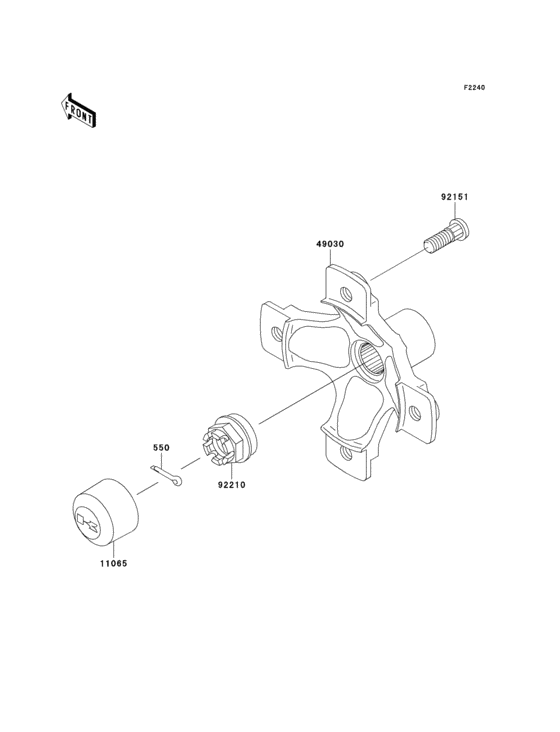

Rear hub Diagram Kawasaki KVF700 Prairie 700 4X4 Team Green Special Edition
- Model code
- KVF700D6F
- Engine Capacity
- 697
- Year
- 2006
- Sales region
- Canada
- Colour
- Lime Green (777)
- Power
- 47 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 700 4X4 Team Green Special Edition
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
550
|
550
550D4025 PIN,COTTER,4.0X25 |
550D4025 |
from US $0.27 |
||
| replacement | |||||
|
550
|
550
550AA4025 PIN-COTTER |
550AA4025 |
from US $0.82 |
||
|
11065
|
11065
11065-1153 CAP,WHEEL |
11065-1153 |
US $3.23 |
||
|
49030
|
49030
49030-1140
HUB,RR
|
49030-1140 |
— | ||
| replacement | |||||
|
49030
|
49030
49030-0047 HUB,RR |
49030-0047 |
from US $150.96 |
||
|
92151
|
92151
92151-1392 BOLT,10X29.5 |
92151-1392 |
from US $2.65 |
||
|
92210
|
92210
92210-1381 NUT,CASTLE,20MM |
92210-1381 |
from US $8.35 |
||
