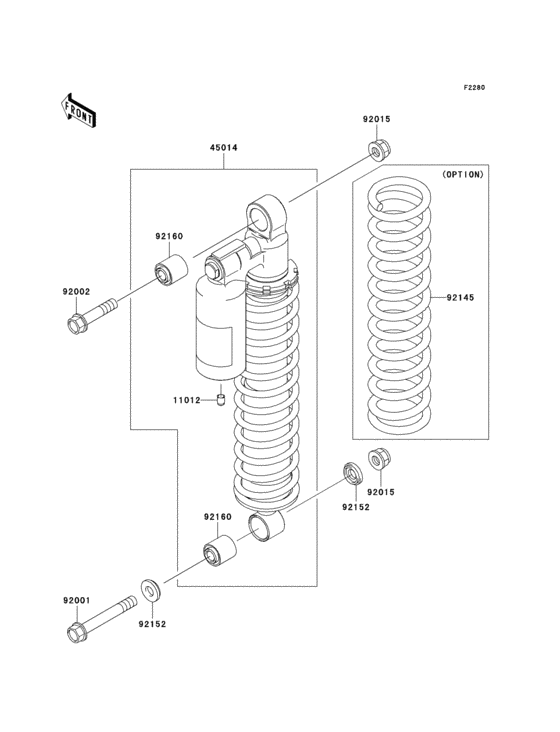

Shock absorber(s) Diagram Kawasaki KVF700 Prairie 700 4X4 Team Green Special Edition
- Model code
- KVF700D6F
- Engine Capacity
- 697
- Year
- 2006
- Sales region
- Canada
- Colour
- Lime Green (777)
- Power
- 47 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 700 4X4 Team Green Special Edition
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11012
|
11012
11012-1283 CAP,FORK |
11012-1283 |
from US $6.18 |
||
|
45014
|
45014
45014-0028 Shock Absorber |
45014-0028 |
from US $1,127.52 |
||
|
92001
|
92001
92001-1693 BOLT,FLANGED,12X88 |
92001-1693 |
from US $9.35 |
||
|
92002
|
92002
92002-1840 BOLT |
92002-1840 |
from US $6.18 |
||
|
92015
|
92015
92015-1617 NUT,LOCK,12MM |
92015-1617 |
from US $6.02 |
||
|
92145
|
92145
92145-0231 SPRING,SHOCKABSORBER |
92145-0231 |
from US $139.81 |
||
|
92152
|
92152
92152-1293 COLLAR |
92152-1293 |
from US $5.13 |
||
|
92160
|
92160
92160-1777 Dampers, shock absorbers |
92160-1777 |
from US $8.09 |
