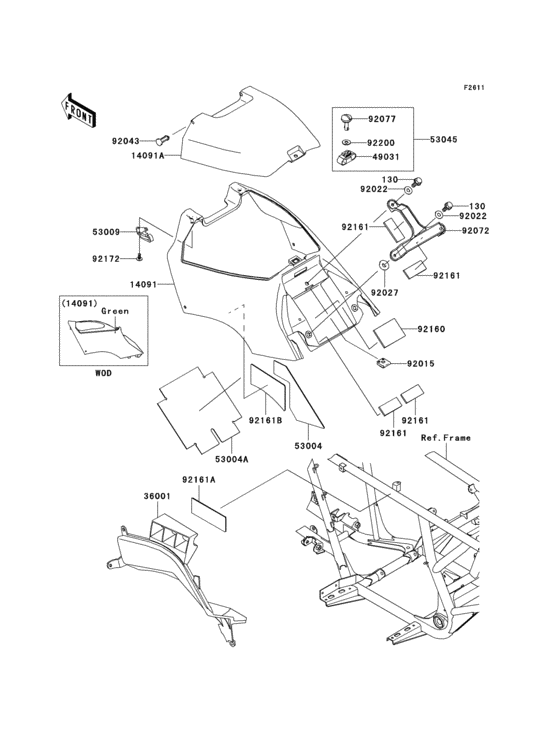

Side covers Diagram Kawasaki KVF700 Prairie 700 4X4 Team Green Special Edition
- Model code
- KVF700D6F
- Engine Capacity
- 697
- Year
- 2006
- Sales region
- Canada
- Colour
- Lime Green (777)
- Power
- 47 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 700 4X4 Team Green Special Edition
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130J0618 BOLT-FLANGED,6X18 |
130J0618 |
from US $1.19 |
||
| replacement | |||||
|
130
|
130
130BB0618 BOLT-FLANGED,6X18 |
130BB0618 |
from US $1.11 |
||
|
14091
|
14091
14091-1423-290 COVER,FUEL TANK,L.GRE |
14091-1423-290 |
US $49.97 |
||
|
14091A
|
14091A
14091-1424-290 COVER,FUEL TANK,UPP,L |
14091-1424-290 |
US $33.30 |
||
|
36001
|
36001
36001-1647 COVER-SIDE |
36001-1647 |
US $24.75 |
||
|
49031
|
49031
49031-1060 LATCH |
49031-1060 |
US $5.51 |
||
| replacement | |||||
|
49031
|
49031
49031-0003 LATCH |
49031-0003 |
from US $3.57 |
||
|
53004
|
53004
53004-1148 MAT,FUEL TANK COVER |
53004-1148 |
from US $11.82 |
||
|
53004A
|
53004A
53004-1172 MAT,BATTERY CASE |
53004-1172 |
from US $21.93 |
||
|
53009
|
53009
53009-1110 HINGE,FUEL TANK COVER |
53009-1110 |
US $5.08 |
||
|
53045
|
53045
53045-1070 HOOK-ASSY,FUEL TANK C |
53045-1070 |
US $9.91 |
||
|
92015
|
92015
92015-1678 NUT |
92015-1678 |
from US $3.17 |
||
|
92022
|
92022
92022-1093 WASHER,6.5X16X1.0 |
92022-1093 |
from US $1.43 |
||
|
92027
|
92027
92027-1964 COLLAR,L=4.7 |
92027-1964 |
from US $3.73 |
||
|
92043
|
92043
92043-1623 PIN,HINGE |
92043-1623 |
US $4.06 |
||
|
92072
|
92072
92072-1406 BAND,BATTERY |
92072-1406 |
US $9.03 |
||
|
92077
|
92077
92077-1129 KNOB |
92077-1129 |
from US $2.65 |
||
|
92160
|
92160
92160-1897 DAMPER,BATTERY |
92160-1897 |
from US $4.12 |
||
|
92161
|
92161
92161-1127 DAMPER,BATTERY |
92161-1127 |
from US $3.96 |
||
|
92161A
|
92161A
92161-1201 DAMPER,SIDE COVER |
92161-1201 |
from US $5.44 |
||
|
92161B
|
92161B
92161-1202 DAMPER,FUEL TANK COVE |
92161-1202 |
from US $8.09 |
||
|
92172
|
92172
92172-1061 SCREW,TAPPING,5X10 |
92172-1061 |
from US $0.86 |
||
| replacement | |||||
|
92172
|
92172
92172-0262 SCREW,TAPPING,5X10 |
92172-0262 |
from US $0.63 |
||
|
92200
|
92200
92200-1578 WASHER |
92200-1578 |
US $1.73 |
||
| replacement | |||||
|
92200
|
92200
92200-0503 WASHER |
92200-0503 |
from US $1.09 |
||
