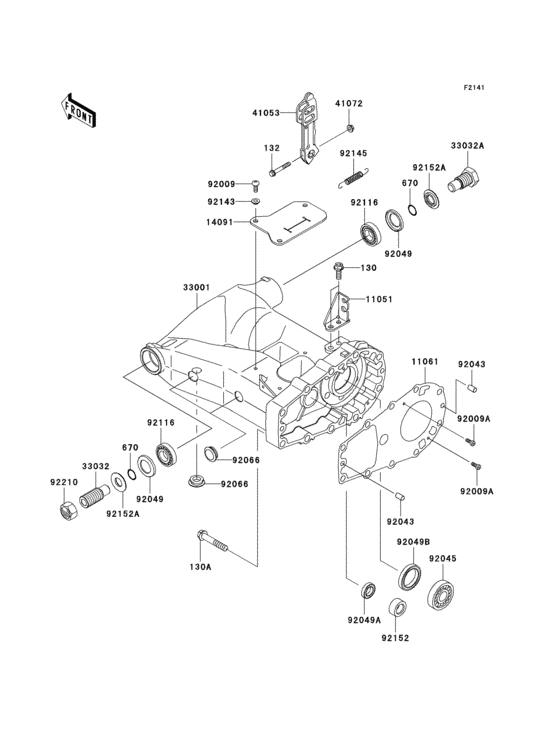

Swingarm Diagram Kawasaki KVF700 Prairie 700 4X4 Team Green Special Edition
- Model code
- KVF700D6F
- Engine Capacity
- 697
- Year
- 2006
- Sales region
- Canada
- Colour
- Lime Green (777)
- Power
- 47 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 700 4X4 Team Green Special Edition
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130J0822 BOLT-FLANGED |
130J0822 |
US $1.58 |
||
| replacement | |||||
|
130
|
130
130BB0822 BOLT-FLANGED |
130BB0822 |
from US $1.24 |
||
|
130A
|
130A
130P1055 BOLT-FLANGED |
130P1055 |
US $2.14 |
||
| replacement | |||||
|
130A
|
130A
130CA1055 BOLT-FLANGED |
130CA1055 |
from US $1.56 |
||
|
132
|
132
132G0640
BOLT-FLANGED-SMALL
|
132G0640 |
— | ||
| replacement | |||||
|
132
|
132
132BA0640 BOLT-FLANGED-SMALL |
132BA0640 |
from US $1.27 |
||
|
670
|
670
670B2016 O RING,16MM |
670B2016 |
from US $1.70 |
||
|
11051
|
11051
11051-1762 BRACKET,CABLE |
11051-1762 |
US $10.18 |
||
|
11061
|
11061
11061-1065 GASKET,SWING ARM |
11061-1065 |
from US $30.01 |
||
|
14091
|
14091
14091-7508 COVER |
14091-7508 |
from US $8.36 |
||
|
33001
|
33001
33001-0008 ARM-COMP-SWING |
33001-0008 |
US $715.57 |
||
| replacement | |||||
|
33001
|
33001
33001-0152 ARM-COMP-SWING |
33001-0152 |
from US $659.40 |
||
|
33032
|
33032
33032-1197 SHAFT-SWING ARM,LEFT |
33032-1197 |
from US $33.55 |
||
|
33032A
|
33032A
33032-1200 SHAFT-SWING ARM,RIGHT |
33032-1200 |
from US $33.55 |
||
|
41053
|
41053
41053-1094 LEVER-BRAKE CAM |
41053-1094 |
from US $35.45 |
||
|
41072
|
41072
41072007 NUT,6MM |
41072007 |
from US $2.85 |
||
|
92009
|
92009
92009-1166 SCREW,TAPPING |
92009-1166 |
from US $2.88 |
||
|
92009A
|
92009A
92009-1936 SCREW,4X10 |
92009-1936 |
from US $1.09 |
||
|
92043
|
92043
92043-1567 PIN,8X14 |
92043-1567 |
from US $1.43 |
||
|
92045
|
92045
92045-1427 BEARING-BALL,TMBO/28C |
92045-1427 |
from US $22.09 |
||
|
92049
|
92049
92049-1030 OIL SEAL,26406 |
92049-1030 |
from US $7.29 |
||
|
92049A
|
92049A
92049-1537 SEAL-OIL,TC17X28X6 |
92049-1537 |
from US $6.34 |
||
|
92049B
|
92049B
92049-1538 SEAL-OIL,HTC35X48X7 |
92049-1538 |
from US $12.36 |
||
|
92066
|
92066
92066-1534 PLUG |
92066-1534 |
US $2.69 |
||
|
92116
|
92116
92116-1001 BRG,ROLLER,4T30203E1 |
92116-1001 |
from US $20.28 |
||
|
92143
|
92143
92143-1331 COLLAR |
92143-1331 |
from US $2.38 |
||
|
92145
|
92145
92145-1313 SPRING,BRAKE LEVER RE |
92145-1313 |
from US $2.49 |
||
|
92152
|
92152
92152-1240 COLLAR |
92152-1240 |
from US $8.24 |
||
|
92152A
|
92152A
92152-1356 COLLAR |
92152-1356 |
from US $5.60 |
||
|
92210
|
92210
92210-0190 NUT,22MM |
92210-0190 |
from US $4.05 |
||
