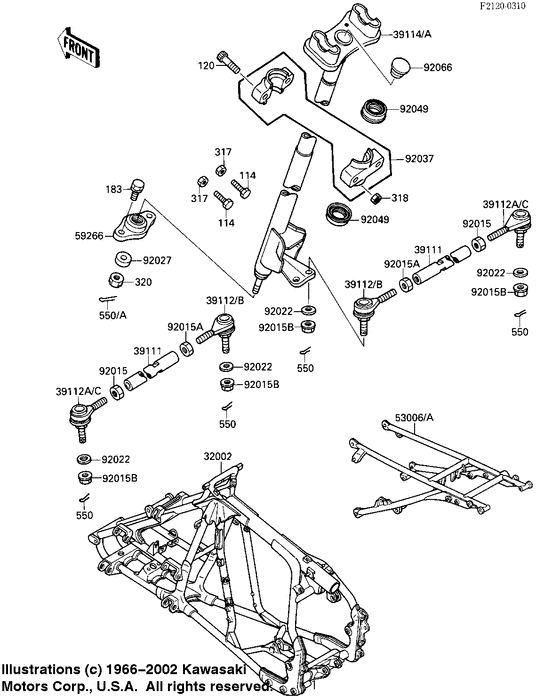

Frame Diagram Kawasaki KXF250 Tecate 4
- Model code
- KXF250-A1
- Engine Capacity
- 250
- Year
- 1987
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32002
|
32002
32002-1930 FRAME COMPFrame-comp,fr; |
32002-1930 |
US $941.22 |
||
| replacement | |||||
|
32002
|
32002
32160-5003 FRAME COMPFrame-comp,fr; |
32160-5003 |
US $941.22 |
||
|
39111
|
39111
39111-1069 ROD-TIE |
39111-1069 |
from US $23.95 |
||
|
39112
|
39112
39112-1058 RODEND-TIE |
39112-1058 |
US $82.93 |
||
| replacement | |||||
|
39112
|
39112
39112-1063 RODEND-TIE |
39112-1063 |
from US $60.81 |
||
|
39112A
|
39112A
39112-1059 RODEND-TIE |
39112-1059 |
US $82.93 |
||
| replacement | |||||
|
39112A
|
39112A
39112-1064 RODEND-TIE |
39112-1064 |
from US $60.81 |
||
|
39114
|
39114
39114-1058 SHAFT-COMP,STEERING |
39114-1058 |
US $158.74 |
||
|
53006
|
53006
53006-1051 FRAME-COMP-SEAT |
53006-1051 |
US $322.96 |
||
|
59266
|
59266
59266-1066 JOINT-BALL |
59266-1066 |
from US $101.40 |
||
|
92015
|
92015
92015-1460 NUT,LOCK,10MMNut,lock,10mm; |
92015-1460 |
from US $3.57 |
||
|
92015A
|
92015A
92015-1494 NUT,LOCK,10MMNut,lock,10mm; |
92015-1494 |
from US $3.48 |
||
|
92015B
|
92015B
92015-1502 NUTNut,flanged,10mm; |
92015-1502 |
US $10.19 |
||
| replacement | |||||
|
92015B
|
92015B
92210-1080 NUTNut,flanged,10mm; |
92210-1080 |
from US $6.49 |
||
|
92022
|
92022
92022-239 WASHER,PLAINWasher,10.5x20x1; |
92022-239 |
from US $2.53 |
||
|
92027
|
92027
92027-1817 COLLAR,10X21.3X7Collar,10x21.3x7; |
92027-1817 |
from US $9.07 |
||
|
92037
|
92037
92037-1839 CLAMP,STEERING SHAFTClamp,steering shaft; |
92037-1839 |
from US $39.82 |
||
|
92049
|
92049
92049-1278 SEAL-OIL,SR7 25 34 7.Seal-oil,sr7 25 34 7.8 ns; |
92049-1278 |
from US $3.89 |
||
|
114
|
114
114H0825 BOLT-SMALL,8X25Bolt-small,8x25; |
114H0825 |
US $2.32 |
||
|
120
|
120
120P0850 BOLT,ALLEN 8X50Bolt-socket,8x50; |
120P0850 |
US $4.05 |
||
| replacement | |||||
|
120
|
120
120CA0850 BOLT,ALLEN 8X50Bolt-socket,8x50; |
120CA0850 |
from US $1.43 |
||
|
183
|
183
183G0822 BOLT-UPSET-WS-SMALL |
183G0822 |
US $4.12 |
||
| replacement | |||||
|
183
|
183
183BA0822 BOLT-UPSET-WS-SMALL |
183BA0822 |
from US $1.40 |
||
|
317
|
317
317H0800 NUT-HEX-SMALL,8MMNut-hex-small,8mm; |
317H0800 |
US $1.48 |
||
| replacement | |||||
|
317
|
317
317BA0800 NUT-HEX-SMALL,8MMNut-hex-small,8mm; |
317BA0800 |
from US $0.95 |
||
|
318
|
318
318B0800
NUT-HEX-SMALL
Nut-hex-small,8mm; |
318B0800 |
— | ||
| replacement | |||||
|
318
|
318
318AA0800 NUT-HEX-SMALLNut-hex-small,8mm; |
318AA0800 |
from US $0.92 |
||
|
320
|
320
320H1000 NUT-CASTLE |
320H1000 |
US $6.80 |
||
| replacement | |||||
|
320
|
320
320BA1000 NUT-CASTLE |
320BA1000 |
from US $1.24 |
||
|
550
|
550
550D2015
PIN-COTTER,2.0X15
Pin-cotter,2.0x15; |
550D2015 |
— | ||
| replacement | |||||
|
550
|
550
550AA2015 PIN-COTTER,2.0X15Pin-cotter,2.0x15; |
550AA2015 |
from US $0.63 |
||
