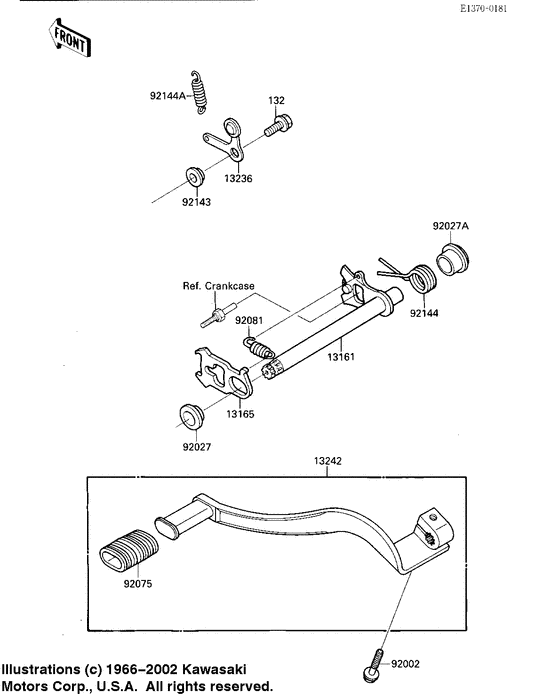

Gear change mechanism Diagram Kawasaki KXF250 Tecate 4
- Model code
- KXF250-A1
- Engine Capacity
- 250
- Year
- 1987
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13161
|
13161
13161-1143 LEVER-COMP-CHANGE SHA |
13161-1143 |
US $48.78 |
||
|
13165
|
13165
13165-1122 PAWL,CHANGE LEVERPawl,change lever; |
13165-1122 |
US $11.72 |
||
|
13236
|
13236
13236-1155 LEVER-COMP,POSITIONLever-comp,position; |
13236-1155 |
US $10.61 |
||
|
13242
|
13242
13242-1230
LEVER-ASSY-CHANGE,PED
Lever-assy-change,pedal; |
13242-1230 |
— | ||
|
92002
|
92002
92002-1339
BOLT-FLANGED,6X25
Bolt,6x25; |
92002-1339 |
— | ||
| replacement | |||||
|
92002
|
92002
130CA0625 BOLT-FLANGED,6X25Bolt,6x25; |
130CA0625 |
from US $1.61 |
||
|
92027
|
92027
92027-1512
COLLAR,CHANGE SHAFT,L
Collar,change shaft,l=5.5; |
92027-1512 |
— | ||
|
92027A
|
92027A
92027-1940 COLLAR |
92027-1940 |
from US $6.65 |
||
|
92075
|
92075
92075-1585 DAMPER,CHANGE PEDALDamper,change pedal; |
92075-1585 |
US $6.49 |
||
| replacement | |||||
|
92075
|
92075
92161-2392 DAMPER,CHANGE PEDALDamper,change pedal; |
92161-2392 |
from US $7.79 |
||
|
92081
|
92081
92081-076 SPRING-CHANGE LEVERSpring,change lever; |
92081-076 |
from US $4.09 |
||
|
92143
|
92143
92143-1055 COLLAR |
92143-1055 |
from US $4.12 |
||
|
92144
|
92144
92144-1142 Spring,change shaft rSpring,change shaft return; |
92144-1142 |
US $7 |
||
| replacement | |||||
|
92144
|
92144
92145-1368 SPRINGSpring,change shaft return; |
92145-1368 |
from US $9.19 |
||
|
92144A
|
92144A
92144-1182 SPRINGSpring,position lever; |
92144-1182 |
US $3.11 |
||
|
132
|
132
132G0616
BOLT-FLANGED-SMALL,6X
|
132G0616 |
— | ||
| replacement | |||||
|
132
|
132
132BA0616 BOLT-FLANGED-SMALL,6X |
132BA0616 |
from US $0.79 |
||
