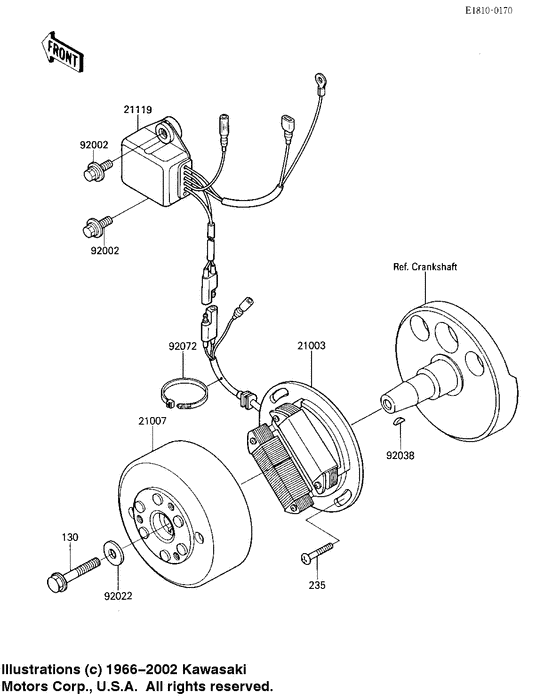

Generator Diagram Kawasaki KXF250 Tecate 4
- Model code
- KXF250-A1
- Engine Capacity
- 250
- Year
- 1987
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
21003
|
21003
21003-1166 STATOR |
21003-1166 |
US $550.06 |
||
|
21007
|
21007
21007-1156
ROTOR
|
21007-1156 |
— | ||
|
21119
|
21119
21119-1230
IGNITER
|
21119-1230 |
— | ||
|
92002
|
92002
92002-1461
BOLT
Bolt,6x16; |
92002-1461 |
— | ||
| replacement | |||||
|
92002
|
92002
92150-1506 BOLTBolt,6x16; |
92150-1506 |
from US $3.01 |
||
|
92022
|
92022
92022-276 WASHER,PLAIN,8MMWasher,8.5x22x3.2; |
92022-276 |
from US $6.81 |
||
|
92038
|
92038
92038-001 WOODRUFF KEYKey,woodruff; |
92038-001 |
from US $3.73 |
||
|
92072
|
92072
92072-032 BAND,LONGBand,l=218; |
92072-032 |
from US $3.01 |
||
|
130
|
130
130P0840 BOLT-FLANGED,8X40 |
130P0840 |
from US $1.01 |
||
| replacement | |||||
|
130
|
130
130CA0840 BOLT-FLANGED,8X40 |
130CA0840 |
from US $1.27 |
||
|
235
|
235
235B0616
SCREW-PAN-WP-CROS
|
235B0616 |
— | ||
| replacement | |||||
|
235
|
235
235AA0616 SCREW-PAN-WP-CROS |
235AA0616 |
from US $1.24 |
||
