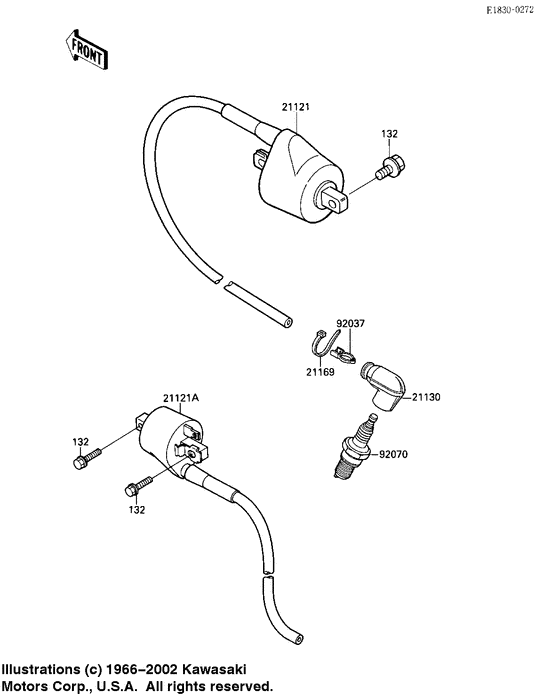

Ignition System Diagram Kawasaki KXF250 Tecate 4
- Model code
- KXF250-A1
- Engine Capacity
- 250
- Year
- 1987
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
21121A
|
21121A
21121-1161
COIL-IGNITION
|
21121-1161 |
— | ||
| replacement | |||||
|
21121A
|
21121A
21121-1170 COIL-IGNITION |
21121-1170 |
US $91.85 |
||
|
21130
|
21130
21130-1006
Cap,spark plug
|
21130-1006 |
— | ||
|
21169
|
21169
21169001 TERMINAL,PLUG CAPTerminal,plug cap; |
21169001 |
from US $10.61 |
||
|
92037
|
92037
92037-1173 CLAMP,SPARK PLUG CAP |
92037-1173 |
from US $2.69 |
||
|
92070
|
92070
92070-037 SPARK PLUG B8ESPlug-spark,b8es(ngk); |
92070-037 |
from US $4.95 |
||
| replacements | |||||
|
92070
|
92070
B8ES SPARK PLUG B8ESPlug-spark,b8es(ngk); |
B8ES |
US $4.95 |
||
|
92070
|
92070
BR8ES SPARK PLUG BR8ESPlug-spark,b8es(ngk); |
BR8ES |
US $25.92 |
||
|
132
|
132
132G0620
BOLT-FLANGED-SMALL,6X
|
132G0620 |
— | ||
| replacement | |||||
|
132
|
132
132BA0620 BOLT-FLANGED-SMALL,6X20 |
132BA0620 |
from US $1.43 |
||
