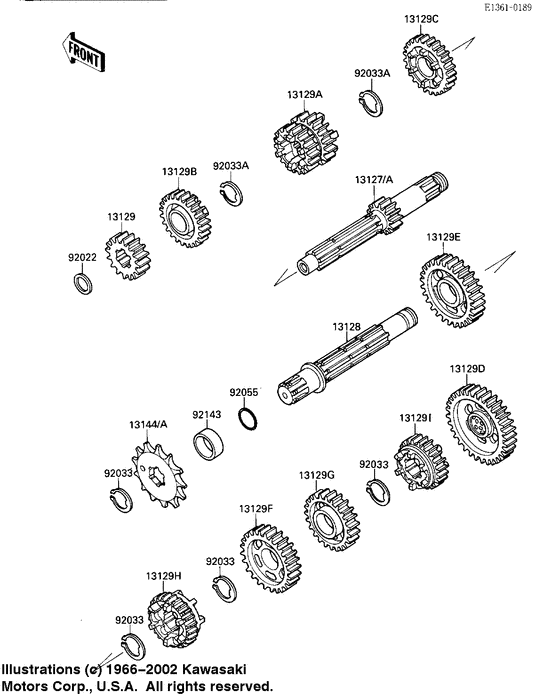

Transmission Diagram Kawasaki KXF250 Tecate 4
- Model code
- KXF250-A1
- Engine Capacity
- 250
- Year
- 1987
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13127
|
13127
13127-1150 SHAFT-TRANSMISSION INShaft-transmission input,14t; |
13127-1150 |
US $271.15 |
||
|
13128
|
13128
13128-1145 SHAFT-TRANSMISSION OU |
13128-1145 |
US $239.76 |
||
|
13129
|
13129
13129-1847 GEAR-TRANSMISSION SPUGear,input 2nd,16t; |
13129-1847 |
US $74.43 |
||
|
13129A
|
13129A
13129-1848 GEAR-TRANSMISSION SPUGear,input 3rd&4th,18&20t; |
13129-1848 |
US $180.20 |
||
|
13129B
|
13129B
13129-1849 GEAR-TRANSMISSION SPUGear,input 5th,24t; |
13129-1849 |
US $121.55 |
||
|
13129C
|
13129C
13129-1850 GEAR-TRANSMISSION SPUGear,input top,25t; |
13129-1850 |
US $121.55 |
||
|
13129D
|
13129D
13129-1851 GEAR-TRANSMISSION SPUGear,output low,33t; |
13129-1851 |
US $106.51 |
||
|
13129E
|
13129E
13129-1852 GEAR-TRANSMISSION SPUGear,output 2nd,28t; |
13129-1852 |
US $132.84 |
||
|
13129F
|
13129F
13129-1853 GEAR-TRANSMISSION SPUGear,output 3rd,25t; |
13129-1853 |
US $156.08 |
||
|
13129G
|
13129G
13129-1854 GEAR-TRANSMISSION SPUGear,output 4th,23t; |
13129-1854 |
US $125.73 |
||
|
13129H
|
13129H
13129-1855 GEAR-TRANSMISSION SPUGear,output 5th,24t; |
13129-1855 |
US $125.73 |
||
|
13129I
|
13129I
13129-1856 GEAR-TRANSMISSION SPUGear,output top,22t; |
13129-1856 |
US $125.73 |
||
|
13144
|
13144
13144-1005 ENGINE SPROCKET,14TSprocket-output,14t; (option) |
13144-1005 |
US $62.38 |
||
|
13144A
|
13144A
13144-1027 ENGINE SPROCKET,13TSprocket-output,13t; |
13144-1027 |
from US $40.27 |
||
|
92022
|
92022
92022-1799 WASHER,17.3X22X0.5Washer,17.3x22x0.5; |
92022-1799 |
from US $2.53 |
||
|
92033
|
92033
92033-1089 RING-SNAP,25MMRing-snap,25mm; |
92033-1089 |
from US $4.25 |
||
|
92033A
|
92033A
92033-1231 RING-SNAPRing-snap,20mm; |
92033-1231 |
from US $3.48 |
||
|
92055
|
92055
92055-035 O-RING |
92055-035 |
from US $3.01 |
||
|
92143
|
92143
92143-1085
COLLAR,SPROCKET
Collar,sprocket; |
92143-1085 |
— |
