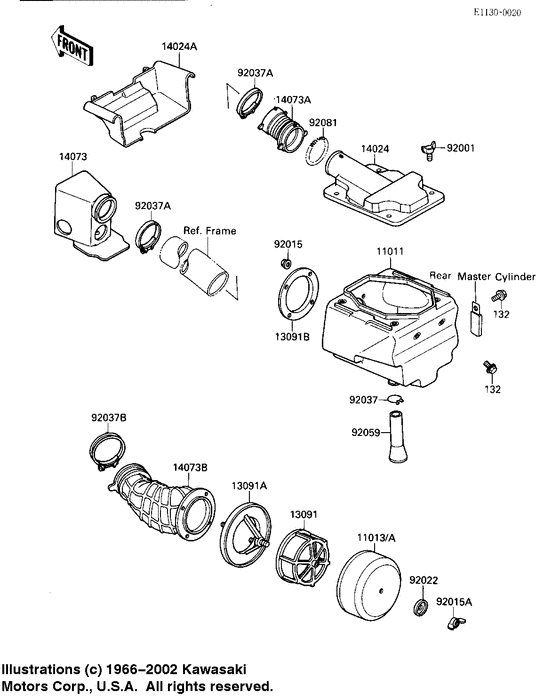

Air cleaner Diagram Kawasaki KXF250 Tecate 4
- Model code
- KXF250-A2
- Engine Capacity
- 250
- Year
- 1988
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-1251
CASE-AIR FILTER
|
11011-1251 |
— | ||
|
11013A
|
11013A
11013-1172 Element-air filter |
11013-1172 |
from US $28.75 |
||
|
13091
|
13091
13091-1403 HOLDER,ELEMENTHolder,element; |
13091-1403 |
US $17.11 |
||
|
13091A
|
13091A
13091-1404
HOLDER
|
13091-1404 |
— | ||
|
13091B
|
13091B
13091-1405 HOLDER |
13091-1405 |
from US $18.47 |
||
|
14024
|
14024
14024-1409
COVER,AIR FILTER
Cover,air filter; |
14024-1409 |
— | ||
|
14024A
|
14024A
14024-1671
COVER
|
14024-1671 |
— | ||
|
14073B
|
14073B
14073-1303
DUCT,AIR FILTER
Duct,air filter; |
14073-1303 |
— | ||
|
92001
|
92001
92001-1703 BOLT,6X16Bolt,wing,6x15; |
92001-1703 |
from US $2.33 |
||
|
92015
|
92015
92015-1259 NUT,FLANGED,5MMNut,flanged,5mm; |
92015-1259 |
from US $2.53 |
||
|
92015A
|
92015A
92016-062 NUT,AIR CLEANER CAPNut,6mm; |
92016-062 |
from US $3.33 |
||
|
92022
|
92022
92022-284
WASHER,PLAIN,6MM
Washer,plain,6mm; |
92022-284 |
— | ||
|
92037
|
92037
92037-1076 CLAMPClamp,tube; |
92037-1076 |
from US $4.28 |
||
|
92037B
|
92037B
92037-171
Clamp
Clamp,air filter; |
92037-171 |
— | ||
| replacement | |||||
|
92037B
|
92037B
92171-1563 CLAMPClamp,air filter; |
92171-1563 |
from US $8.08 |
||
|
92059
|
92059
92059-1847
TUBE,DRAIN
Tube,drain; |
92059-1847 |
— | ||
|
132
|
132
132G0612
BOLT-FLANGED-SMALL,6X
|
132G0612 |
— | ||
| replacement | |||||
|
132
|
132
132BA0612 BOLT-FLANGED-SMALL,6X |
132BA0612 |
from US $0.79 |
||
